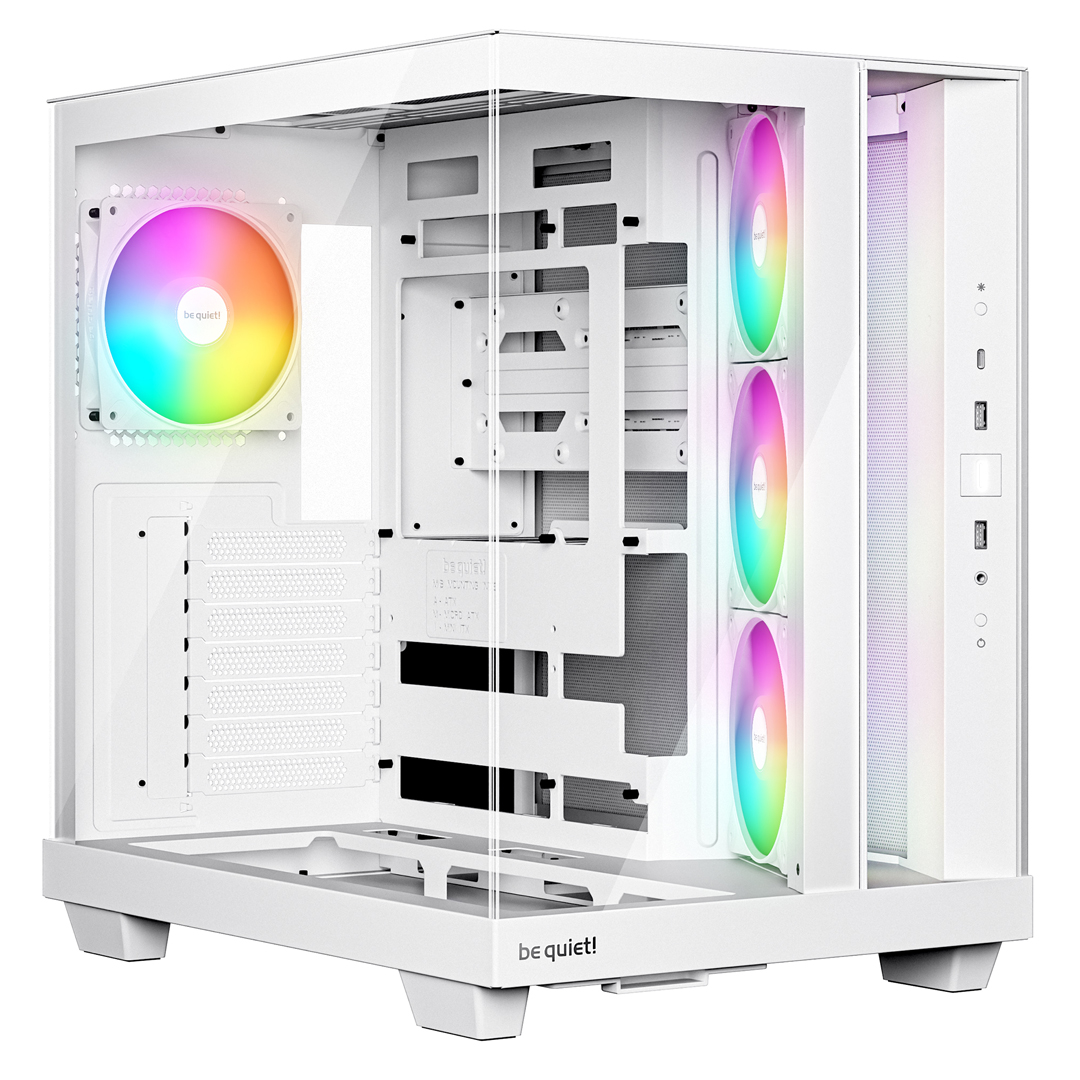

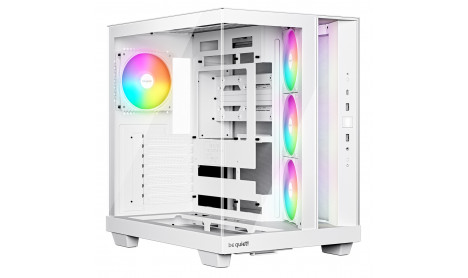

BE QUIET! LIGHT BASE 500 LX WITH ARGB FANS - WHITE
- Product Code: BQLB500LXW
- Availability: In Stock
-
$0
General data
Model: LIGHT BASE 500 LX | Black
Color option: Black
Motherboard compatibility: ATX / M-ATX / Mini-ATX

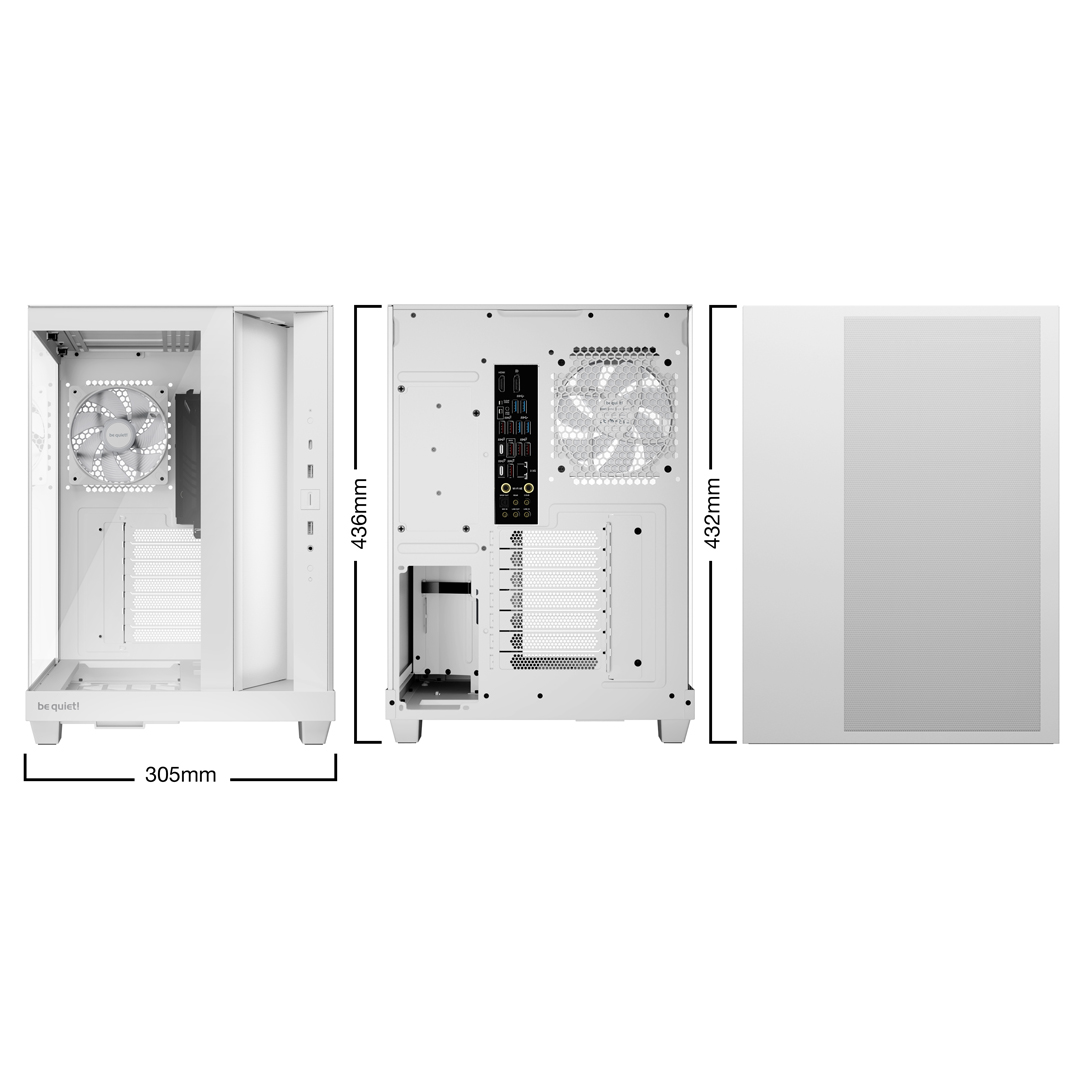

Case size excl. stands (L x W x H), (mm): 432 x 305 x 410
Case size incl. stands (L x W x H), (mm): 432 x 305 x 436
Volume (l): 49,6
PSU form factor: ATX PS/2
Net weight (kg): 10,95
Expansion slots: 7
Pre-installed fans
Fan at top -
Fan at front -
Fan at side 3x Light Wings LX Reverse 120mm PWM Black
Fan at rear 1x Light Wings LX 120mm PWM Black
Fan at bottom -
Dimensions (L x W x H), (mm) 120 x 120 x 25
Fan speed at 100% PWM / 12V (rpm) 1600 | 1500
Airflow at 100% PWM / 12V (CFM / m3/h) 51.5 / 87.5
Air Pressure at 100% PWM / 12V (mm H2O) 1.34
Noise level at 100% PWM / 12V (dB(A)) 25.5
Voltage range (V DC) 5 - 13.2
Input power (W) 3.8
Input current (A) 0.32
Connector 4-pin PWM
Lifespan (h / 25°C) 60,000
Fan controller 2x 12 Ports
PSU compatibility
Maximum dimensions excl. bottom fan (mm) <200
Maximum dimensions incl. bottom fan (mm) <200
Optional radiator installation
Top (mm) 120 / 240 / 280 / 360
Front (mm) -
Side (mm) 120 / 240
Rear (mm) 120
Bottom (mm) -
Graphics card
HDD cage (in height of graphics card) installed (mm) 400
HDD cage (in height of graphics card) removed (mm) 400
Maximum PCIe slots with vertical graphics card (pcs.)
Cooling
Max.construction height of CPU cooler unit (mm) 185
Airflow channel -

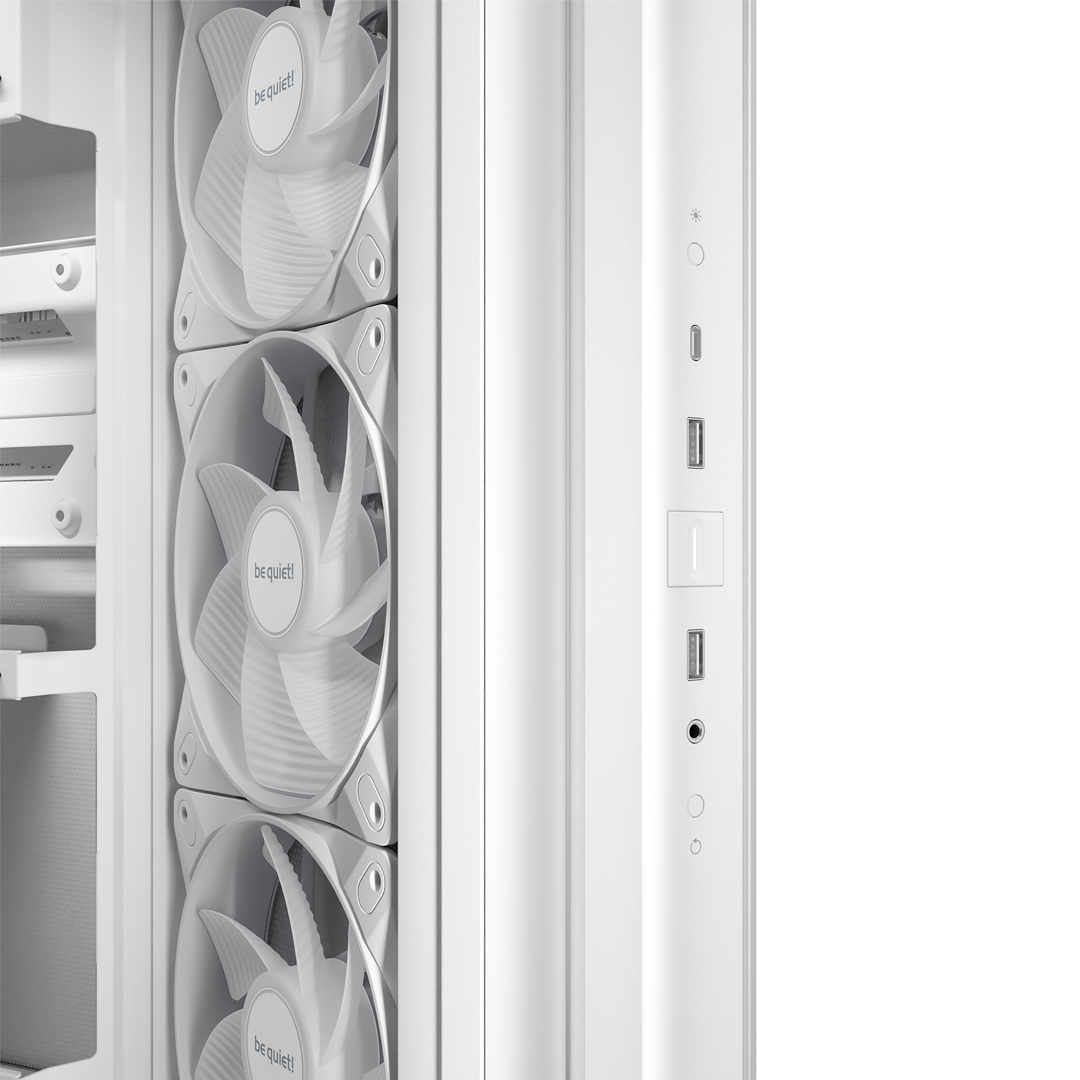

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -
Material
Top cover Steel
Front panel Glass
Side panel Glass
Side panel window Steel
Stands ABS
