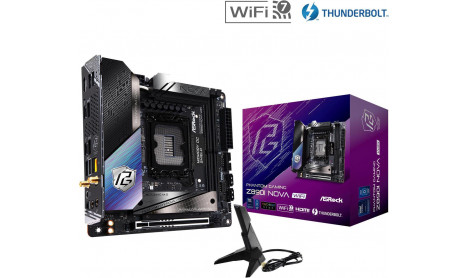

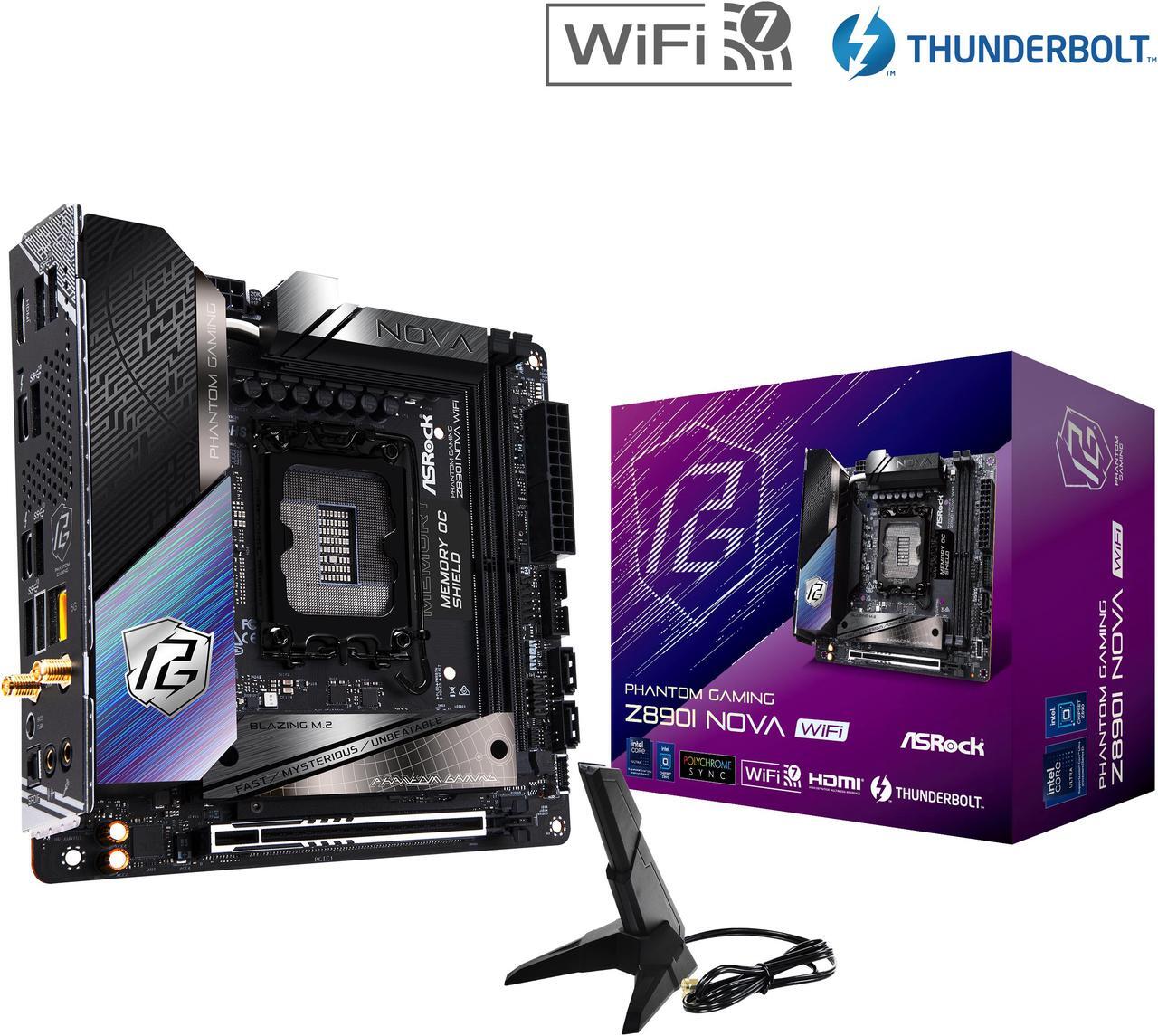

ASROCK Z890I NOVA WIFI LGA 1851

Product Code: ASRZ890I5245
Availability: In Stock
$295

0 reviews / Write a review

Description

Model
Brand	ASRock
Model	Z890I Nova WiFi

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	2x288pin (DDR5)
Memory Standard	DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9466 / DDR5 9600 / DDR5 9866
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports DDR5 non-ECC, un-buffered memory up to 9866+(OC)* Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel Extreme Memory Profile (XMP) 3.0x - 1DPC 1R Up to 9866+ MHz (OC), 6400 MHz Natively. - 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.

Expansion Slots
PCI Express 5.0 x16	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. * Supports NVMe SSD as boot disks - 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* * Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks
SATA RAID	Supports RAID 0 and RAID 1 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * Requires additional M.2 NVMe expansion cards to support RAID 10

Onboard Audio
Audio Chipset	Realtek ALC4082
Audio Channels	7.1 CH HD Audio with Content Protection Nahimic Audio

Onboard LAN
LAN Chipset	Realtek RTL8126CG
Max LAN Speed	5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Bluetooth 5.4

Rear Panel Ports
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 1 x Optical SPDIF Out Port 6 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging

Internal I/O Connectors
Onboard USB	1 x USB 2.0 Headers (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors	1 x Thermistor Cable Header 2 x Addressable LED Headers* 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control) 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) * Support in total up to 5V/3A, 15W LED Strip CPU_FAN and CHA_FAN1 support the fan power up to 2A (24W). * AIO_PUMP supports the fan power up to 3A (36W). *** AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Software Feature
BIOS Feature	256Mb AMI UEFI Legal BIOS with GUI support
Software	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Windows 11	Supported

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
