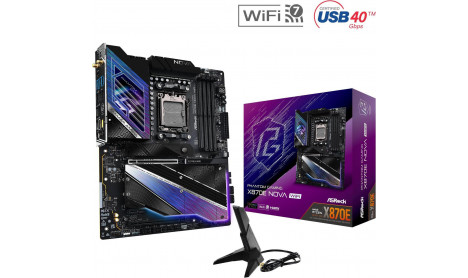

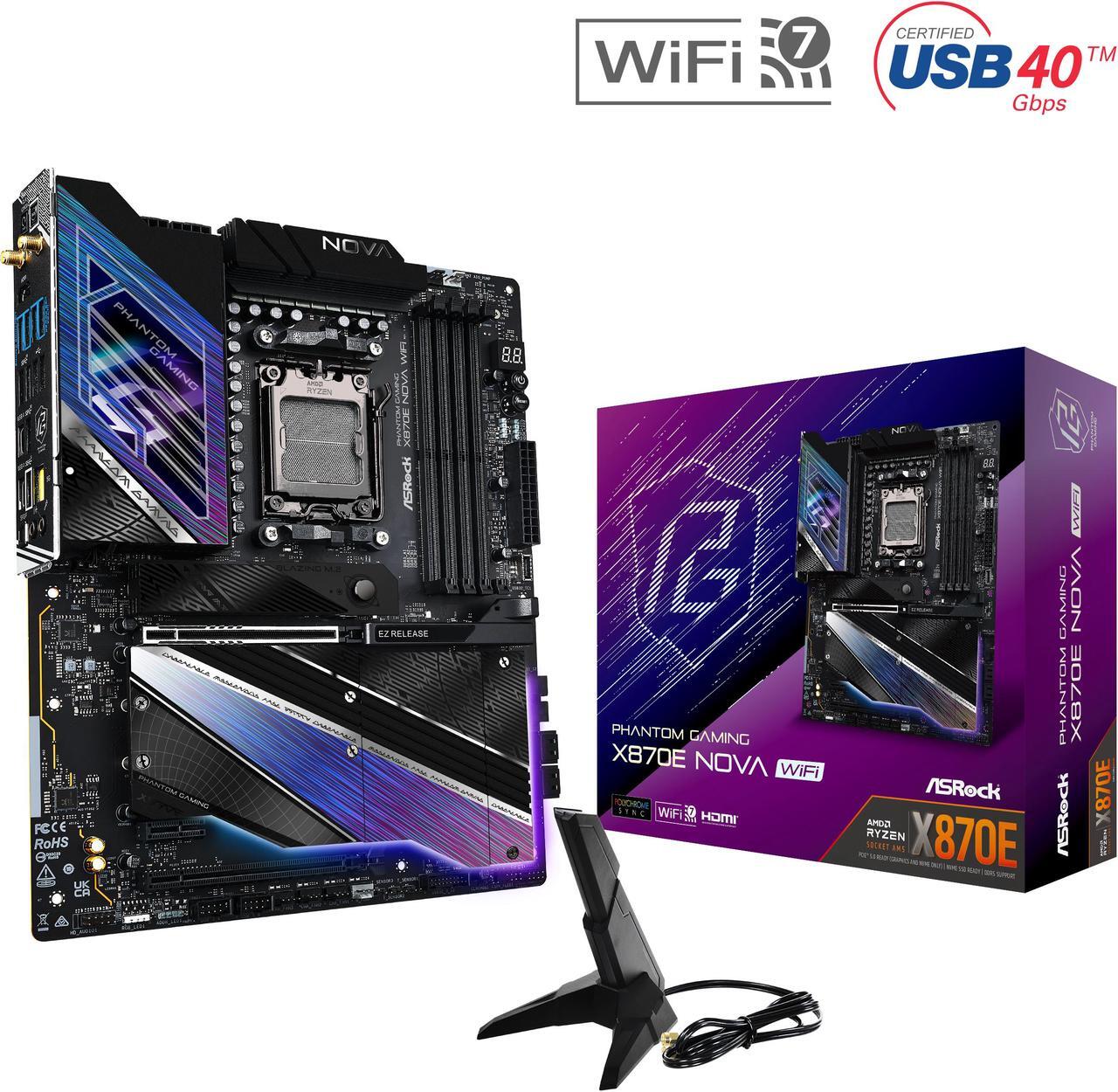

ASROCK X870E NOVA WIFI SOCKET AM5 AMD

Product Code: ASRX870NOVA
Availability: In Stock
$345

0 reviews / Write a review

Description

Model
Brand	ASRock
Model	X870E NOVA WIFI

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 8200+(OC)
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 5.0 x16	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 3.0 x16	1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*
PCI Express x1	1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode*
Other Slots	* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. * If M2_5 is occupied, PCIE3 will be disabled. * Supports NVMe SSD as boot disks

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
SATA RAID	Supports RAID 0 and RAID 1 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC4082
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Bluetooth 5.4

Rear Panel Ports
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors	3 x Thermistor Cable Headers 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). * CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). * CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
