  • ASROCK X870 PRO RS WIFI AMD SOCKET AM5

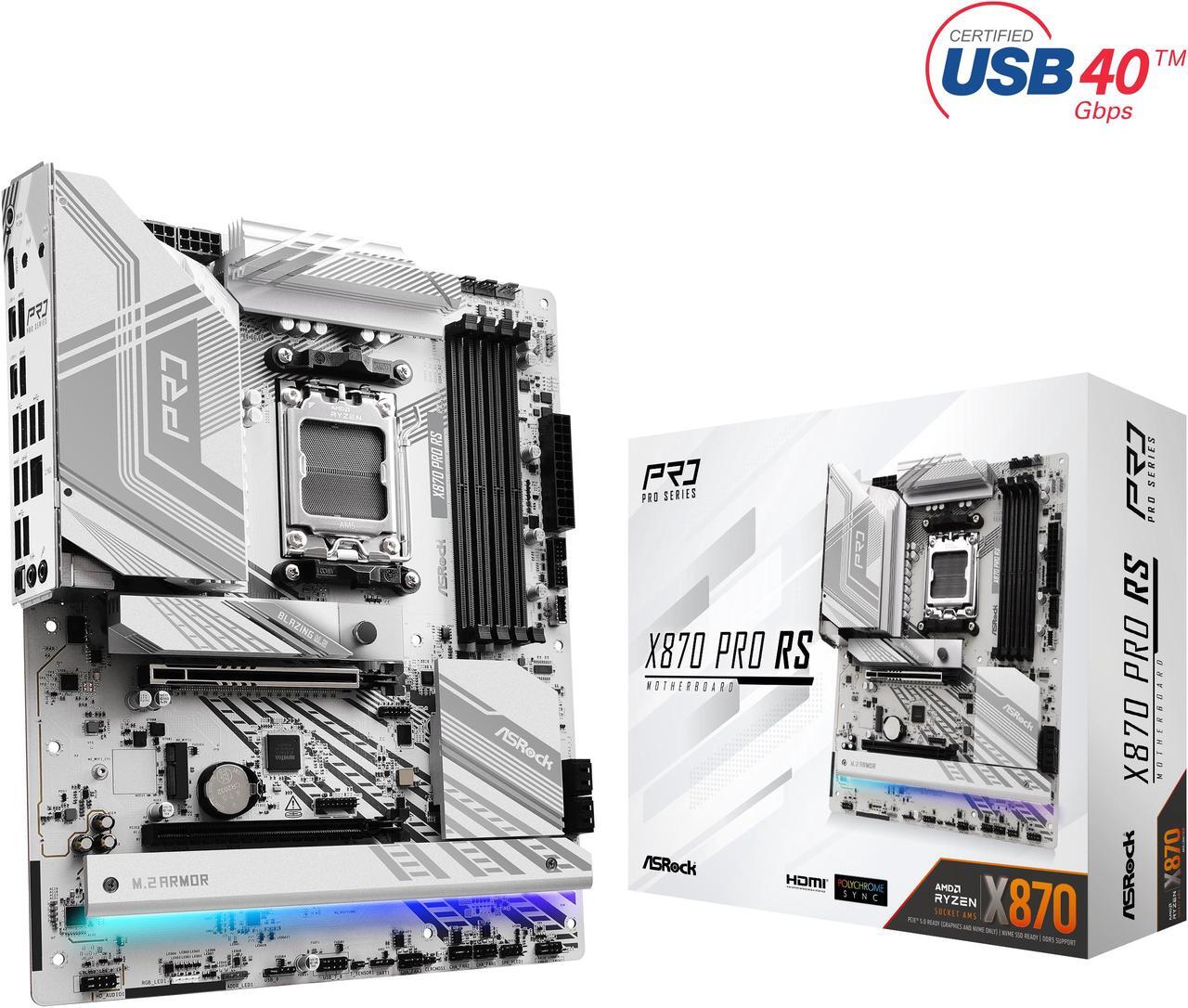

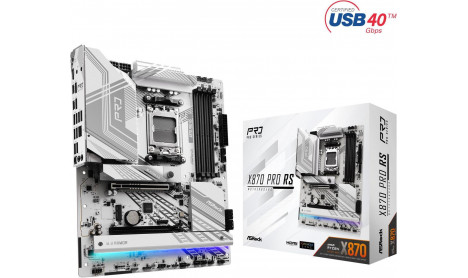

ASROCK X870 PRO RS WIFI AMD SOCKET AM5

  • Product Code: ASRX870
  • Availability: In Stock

  • $209

0 reviews / Write a review

Description
Model
BrandASRock
ModelX870 PRO RS
Supported CPU
CPU Socket Type AM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset AMD X870
Memory
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 8000+ (OC)
Maximum Memory Supported256GB
Channel Supported Dual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Expansion Slots
PCI Express 5.0 x161 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 4.0 x161 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
Other Slots* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
* If M2_2 is occupied, PCIE2 will be disabled.
* Supports NVMe SSD as boot disks
- Supports AMD CrossFire
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

* Supports NVMe SSD as boot disks
* M2_1 is the first priority for M.2 installation.
* M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
* If M2_2 is occupied, PCIE2 will be disabled.
* If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode
SATA RAIDSupports RAID 0 and RAID 1 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Rear Panel Ports
Back I/O Ports2 x Antenna Mounting Points
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Type-C Ports (40 Gb/s)*
4 x USB 3.2 Gen1 Type-A Ports
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Internal I/O Connectors
Onboard USB2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors1 x Thermistor Cable Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
*** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Software Feature
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
