  • ASROCK B860I LIGHTNING WIFI LGA 1851

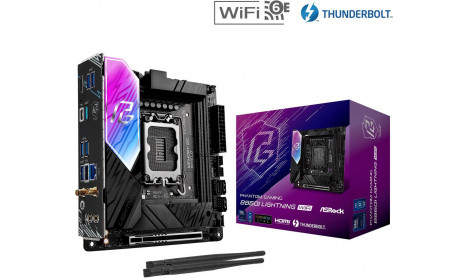

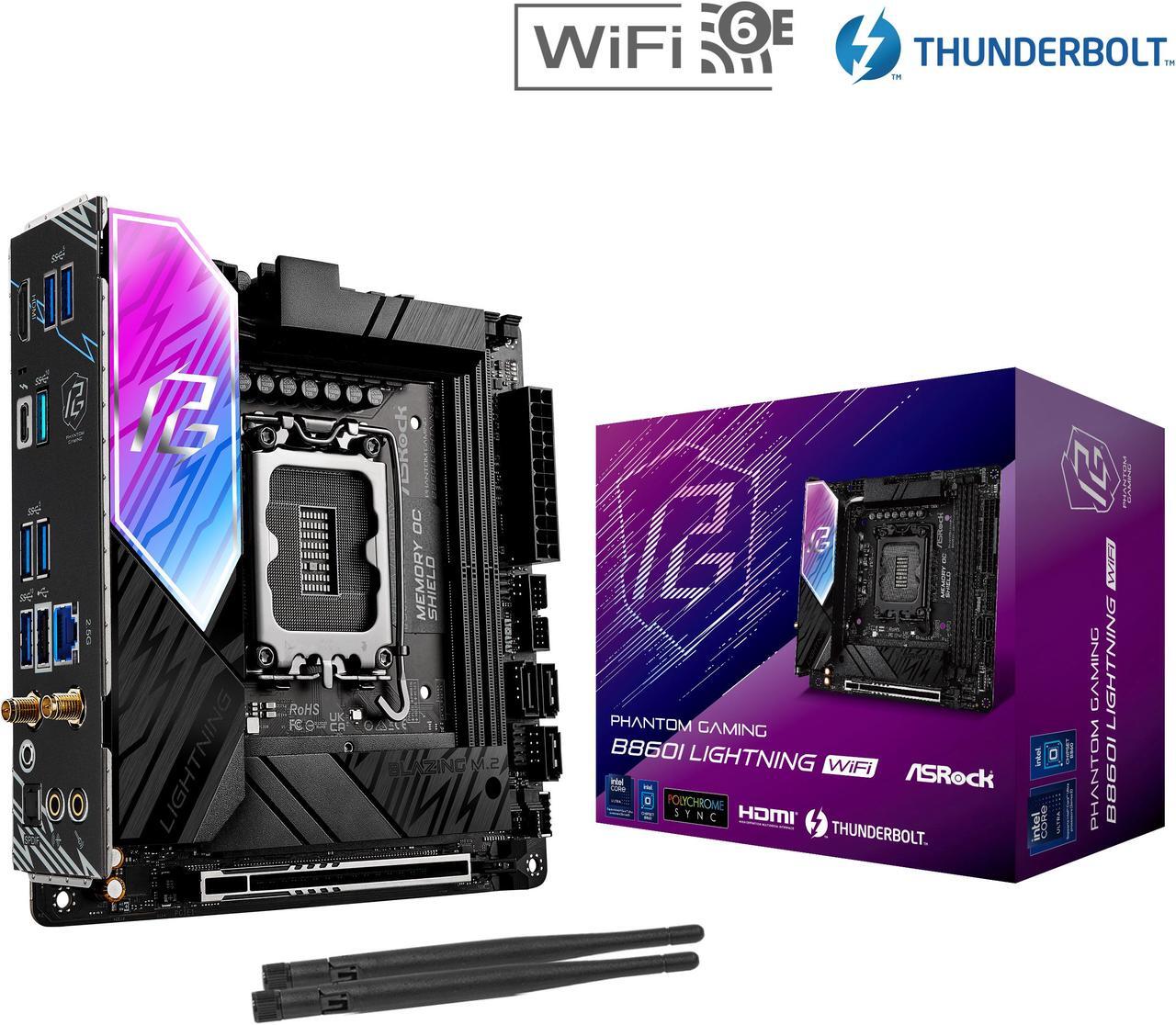

ASROCK B860I LIGHTNING WIFI LGA 1851

  • Product Code: ASRZB860I
  • Availability: In Stock

  • $219

0 reviews / Write a review

Description
Model
BrandASRock
ModelB860I Lightning WiFi
Part NumberB860I Lightning WiFi
Supported CPU
CPU Socket Type LGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
Chipsets
Chipset Intel B860
Memory
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to DDR5 9333+(OC)
Maximum Memory Supported128GB
Channel Supported Dual Channel
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 9333+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Expansion Slots
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Storage Devices
Serial ATA (SATA) 3 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

* Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1 and RAID 5 for SATA storage devices
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Rear Panel Ports
Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
2 x USB 3.2 Gen2 Type-A Ports
4 x USB 3.2 Gen1 Ports
1 x USB 2.0 Port
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)

* Supports USB PD 3.0 up to 5V@3A (15W) charging
Internal I/O Connectors
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Other Connectors1 x Thermistor Cable Header
2 x Addressable LED Headers*
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

* Supports in total up to 5V/3A, 15W LED Strip
** CPU_FAN and CHA_FAN1 support the fan power up to 1A (12W).
*** AIO_PUMP supports the fan power up to 3A (36W).
AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Windows 11 64-bit
Physical Spec
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Features

Specification
-->
