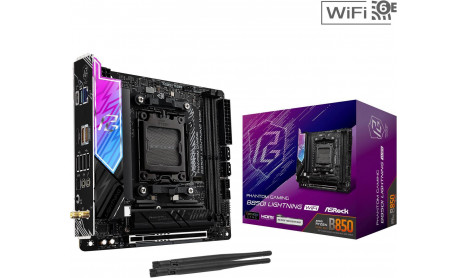

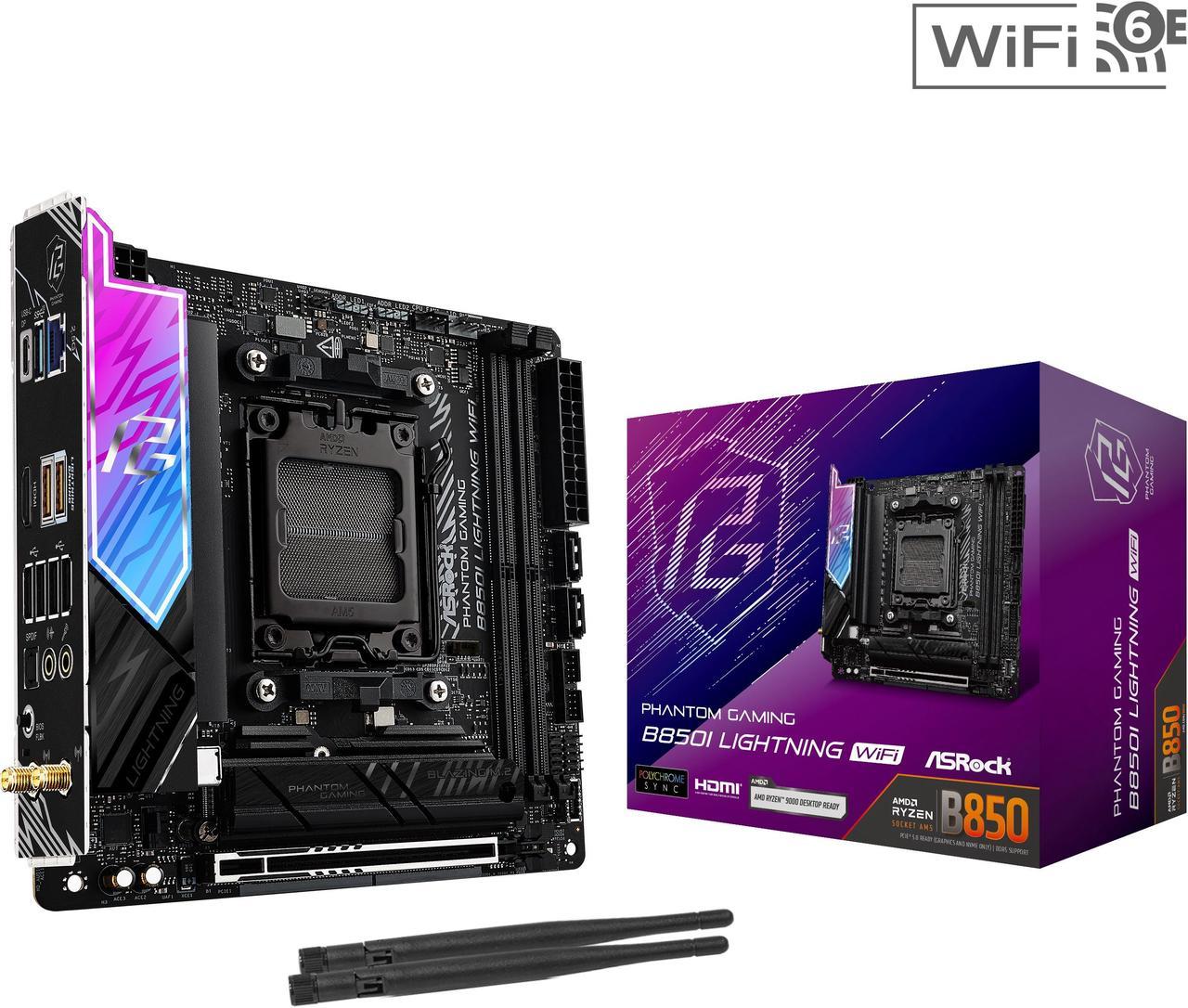

ASROCK B850I LIGHTNING WIFI SOCKET AM5

Product Code: ASRB850I
Availability: In Stock
$205

0 reviews / Write a review

Description

Model
Brand	ASRock
Model	B850I Lightning WiFi

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD B850

Memory
Number of Memory Slots	2x288pin (DDR5)
Memory Standard	Up to 8200+(OC)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 4.0 x16	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. * Supports NVMe SSD as boot disks

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors * M2_1 is the first priority for M.2 installation. * M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. * Supports NVMe SSD as boot disks
SATA RAID	Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Killer E3100G
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB 3.2 Gen 2 Type-A Ports (10 Gb/s)* 1 x USB 3.2 Gen 2 Type-C Port (10 Gb/s) (DP-alt mode supports DP1.4a.)** 1 x USB 3.2 Gen 1 Port* 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * USB32_23 are Lightning Gaming Ports. ** USB32_TC1 supports a maximum speed of 40 Gb/s as a USB4 port with the 8000 (Phoenix 1 and Phoenix 2) series processors.

Internal I/O Connectors
Onboard USB	1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors	1 x Thermistor Cable Header 2 x Addressable LED Headers* 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control) 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector * Support in total up to 5V/3A, 15W LED Strip CPU_FAN1, CHA_FAN1 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN1, CHA_FAN1 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

Software Feature
BIOS Feature	256Mb AMI UEFI Legal BIOS with GUI support
Software	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Windows 11	Windows OS 10 64-bit / 11 64-bit

Specification

-->
