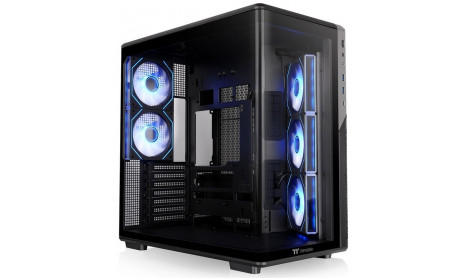

THERMALTAKE VIEW 590 TG ARGB MID TOWER CHASSIS - BLACK

PRODUCT SPECIFICATIONS

SPECIFICATION	DETAILS
P/N	CA-12C-00M1WN-01
Model	View 590 TG ARGB
Case Type	Mid Tower
Dimensions	473 × 290 × 477 mm
	18.7 × 11.42 × 18.78 in
Side Panel	4 mm Curved Tempered Glass × 1
Color	Black
Material	Black
Cooling System	Right (Intake): 3 × 120 × 120 × 25 mm Infinity ARGB PWM Reverse Fans
	1500 RPM, 24.9 dBA
	Rear (Exhaust): 2 × 120 × 120 × 25 mm Infinity ARGB PWM Fans
	1500 RPM, 21.8 dBA
Drive Bays	3 × 3.5" + 2 × 2.5" or 2 × 3.5" + 3 × 2.5"
Expansion Slots	7
Motherboard Support	Mini-ITX: 6.7" × 6.7"
	Micro-ATX: 9.6" × 9.6"
	ATX: 12" × 9.6"
	SSI-CEB: 12" × 10.5"
Hidden-Connector Motherboard Support	Micro-ATX: 9.6" × 9.6"
	ATX: 12" × 9.6"
I/O Ports	1 × USB 3.2 Gen 2 Type-C
	2 × USB 3.0
	1 × HD Audio
PSU Support	Standard PS2 PSU (Optional)
Fan Support — Top	3 × 120 mm / 2 × 120 mm / 1 × 120 mm
	2 × 140 mm / 1 × 140 mm
Fan Support — Right (M/B Side)	3 × 120 mm / 2 × 120 mm / 1 × 120 mm
Fan Support — Bottom	3 × 120 mm / 2 × 120 mm / 1 × 120 mm
Fan Support — Rear	2 × 120 mm / 1 × 120 mm
Radiator Support — Top	360 / 280 / 240 / 140 / 120 mm
Radiator Support — Right (M/B Side)	360 / 240 / 120 mm
Radiator Support — Rear	120 mm
CPU Cooler Clearance	Up to 165 mm
GPU Clearance	Up to 435 mm
	Up to 350 mm with AIO installed on M/B side
PSU Clearance	Up to 270 mm
	Up to 180 mm with HDD installed
