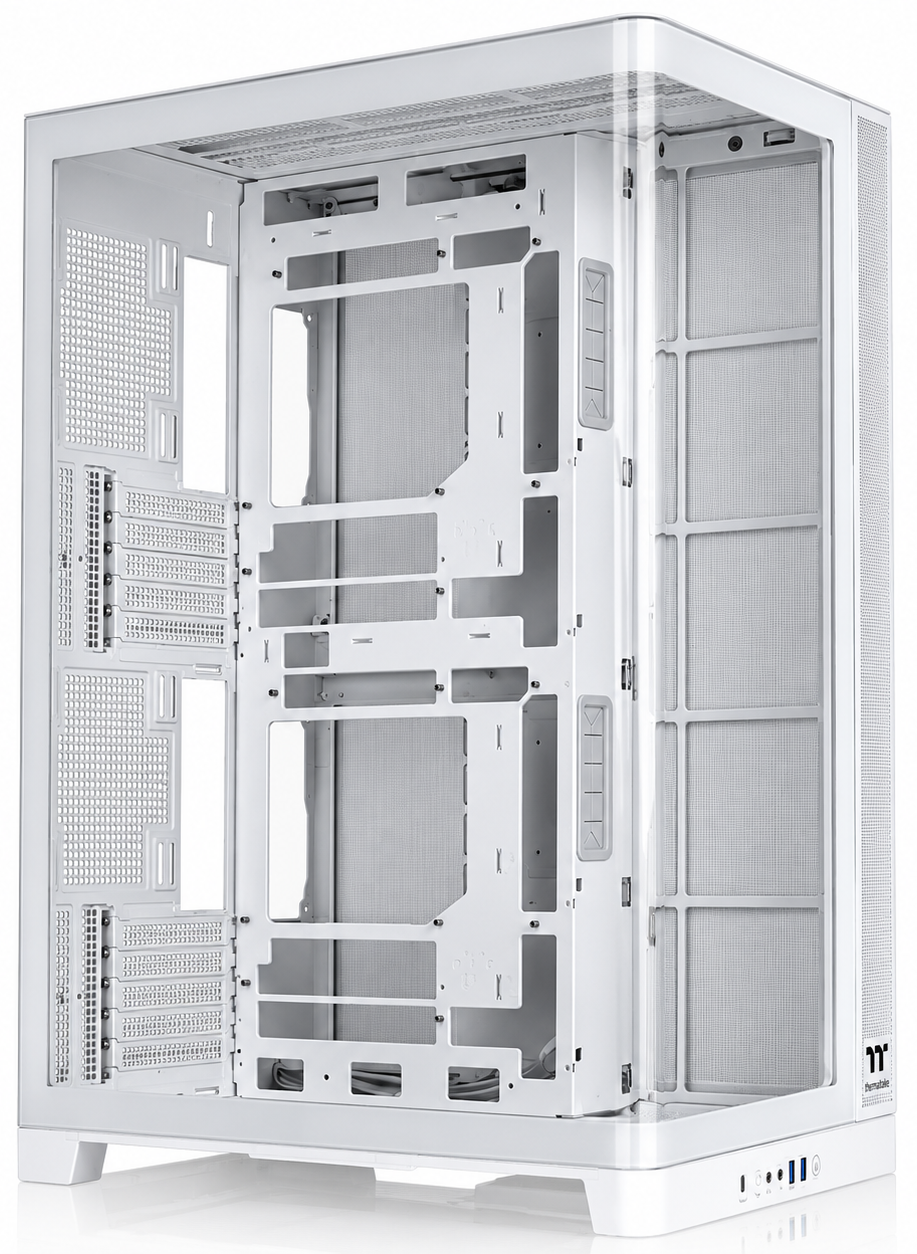

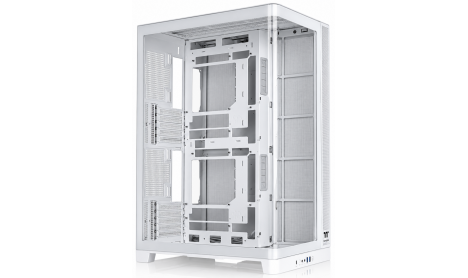

THERMALTAKE CAPO X SNOW DUAL 2026 - SNOW
- Product Code: TTCXS-2354S
- Availability: In Stock
-
$0
PRODUCT SPECIFICATIONS SPECIFICATION | DETAILS |
|---|---|
| P/N | CA-12D-00S6WN-00 |
| Series | CAPO |
| Case Type | Dual System Micro Case |
| Dimensions | 691 × 305 × 448 mm |
| 27.21 × 12.01 × 17.64 in | |
| Side Panel | 4 mm Tempered Glass × 1 |
| Color | White |
| Material | SPCC |
| Cooling System | N/A |
| Expansion Slots | 10 Slots |
| Upper System: 5 Slots | |
| Lower System: 5 Slots | |
| Motherboard Support — Upper System | Micro-ATX: 9.6" × 9.6" |
| Mini-ITX: 6.7" × 6.7" | |
| Motherboard Support — Lower System | Micro-ATX: 9.6" × 9.6" |
| Mini-ITX: 6.7" × 6.7" | |
| Hidden-Connector Motherboard Support | N/A |

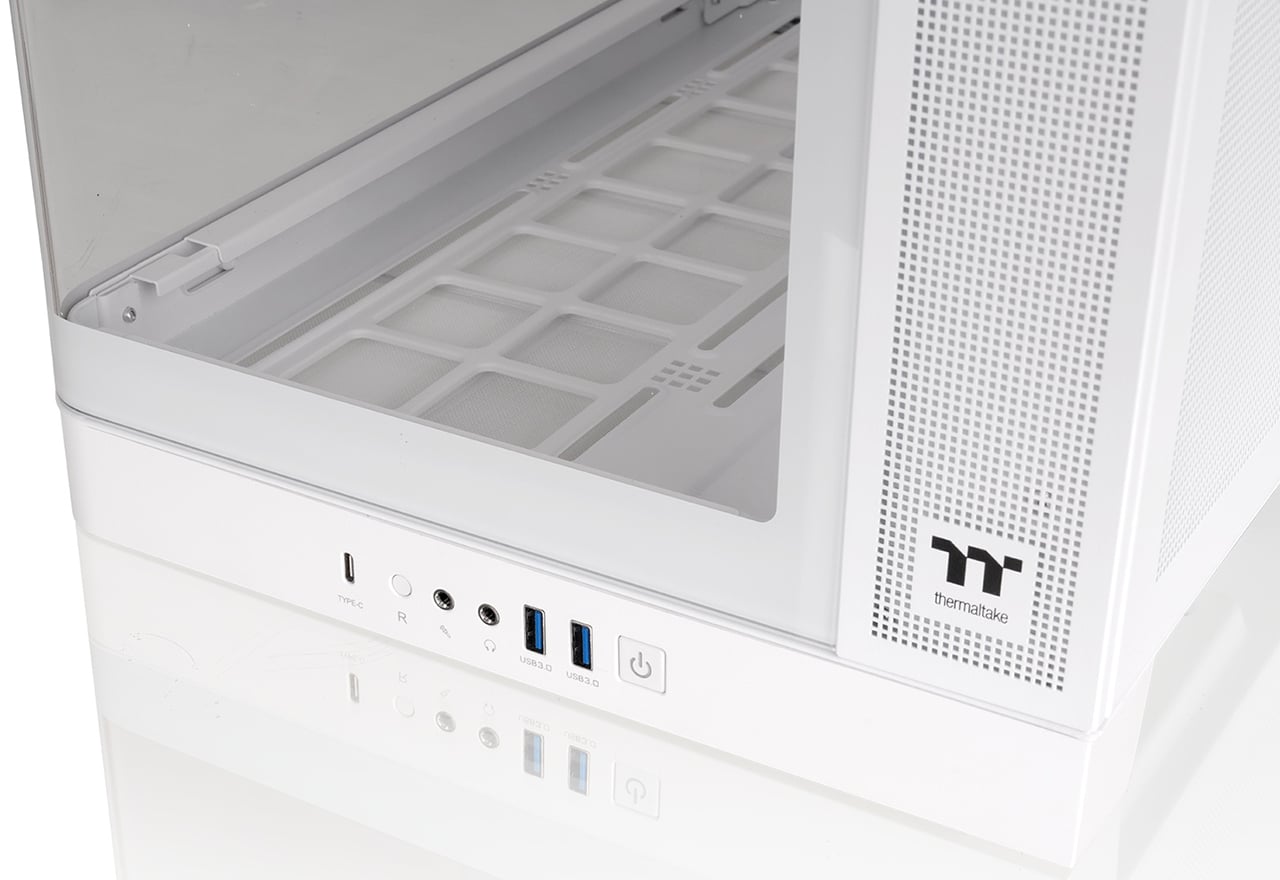

| I/O Ports — Upper System | 1 × USB 3.2 Gen 2 Type-C |
| 2 × USB 3.0 | |
| 1 × HD Audio | |
| I/O Ports — Lower System | 1 × USB 3.2 Gen 2 Type-C |
| 2 × USB 3.0 | |
| 1 × HD Audio | |
| PSU Support — Upper System | Standard PS2 PSU (Optional) |
| PSU Support — Lower System | Standard PS2 PSU (Optional) |
| Fan Support — Top | 3 × 120 mm / 2 × 120 mm / 1 × 120 mm |
| 2 × 140 mm / 1 × 140 mm | |
| Fan Support — Right | 5 × 120 mm / 4 × 120 mm / 3 × 120 mm / 2 × 120 mm / 1 × 120 mm |
| 4 × 140 mm / 3 × 140 mm / 2 × 140 mm / 1 × 140 mm | |
| Fan Support — Rear | Upper System: 1 × 120 mm / 1 × 140 mm |
| Lower System: 1 × 120 mm / 1 × 140 mm | |
| Fan Support — Bottom | 3 × 120 mm / 2 × 120 mm / 1 × 120 mm |
| 2 × 140 mm / 1 × 140 mm | |
| Radiator Support — Top (AIO) | 360 / 280 / 240 / 140 / 120 mm |
| Radiator Support — Right (AIO) | 360 / 280 / 240 / 140 / 120 mm |
| Supports up to 2 × 280 mm radiators | |
| Radiator Support — Rear (AIO) | Upper System: 120 mm |
| Lower System: 140 / 120 mm | |
| CPU Cooler Clearance | Up to 180 mm |
| GPU Clearance | Up to 420 mm |
| PSU Clearance — Upper System | A: 160 mm / B: 180 mm / C: 250 mm |
| PSU Clearance — Lower System | D: 180 mm / E: 250 mm |
