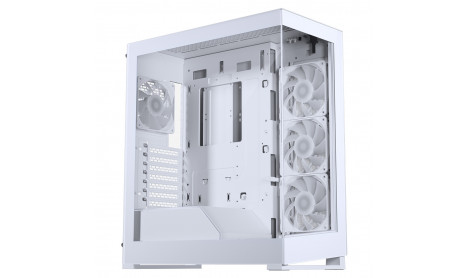

PHANTEKS NV5S SHOWCASE MID TOWER WHITE

Product Code: PH-NV523S_DMW01
Availability: In Stock
$0

0 reviews / Write a review

Description

Specifications

General Data

Model Number	PH-NV523S_DMW01
Colour	Matte White
Dimension	218 x 450 x 505 mm / 8.6 x 17.7 x 19.9 in (W x D x H)
Form Factor	Mid Tower
Material(s)	Steel Chassis, Tempered Glass
Motherboard Support	ATX, micro-ATX, mini-ITX, E-ATX (Up to 280 mm with GPU support bracket)

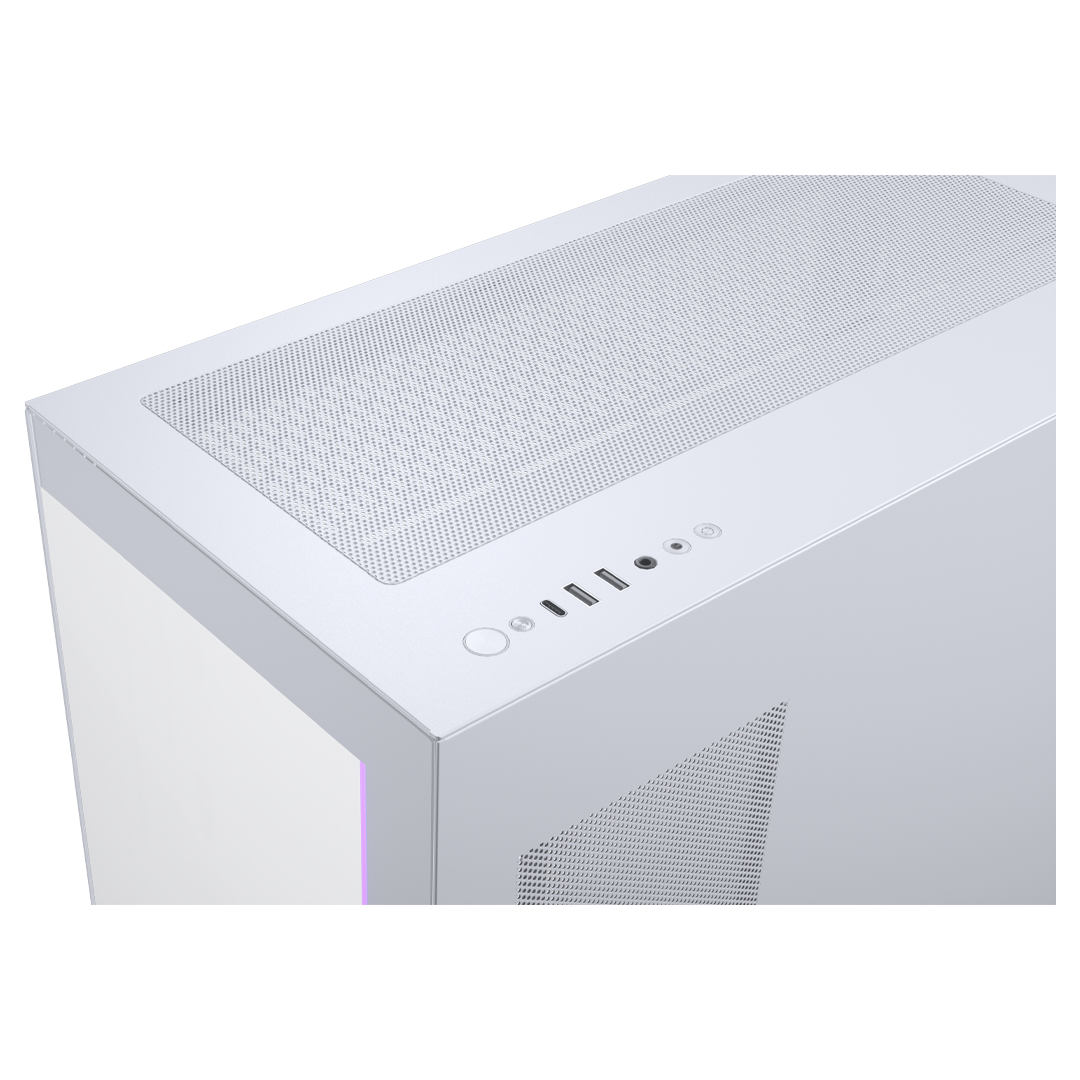

Front I/O	2 x USB 3.0, USB-C Gen2, Microphone / Headphone Combo, Power Button, Reset Button, D-RGB Mode, D-RGB Colour
Connectors	Power Switch, D-RGB, HD-audio, USB 3.0, SATA Power, Reset, USB 3.2 GEN 2 Type-C
Window	Yes, Front and Side Tempered Glass
Net Weight	8.35 kg
Warranty	5 Years
What's Included	NV5S Chassis 4 x D-RGB 120 Fans 1 x D-RGB Controller 1 x Triple SSD Bracket 1 x GPU Support Bracket 1 x Accessory Box MB/SSD Screw Thumb Screw HDD Screw Standoff Removal Tool MB stand-off PSU Screw

Expansion & Drive Bays

Expansion Slots	7
Vertical GPU Support	Yes, with optional bracket PH-VGPUKT4.0_03
Internal 3.5”	1
Internal 2.5"	3
D-RGB Controller Output	7 A

Cooling

120mm Fan

Side: 3x (included)
Top: 3x
Rear: 1x (included)

Liquid Cooling

120mm Radiator

Side: Up to 360 (with vertical GPU only)
Top: Up to 360
Rear: 120

Clearance

Graphic Card Length	430 mm
CPU Cooler Height	170mm
PSU Length	195mm
Side 360 Radiator	120 x 400 x 60 mm
Top 360 Radiator	120 x 400 x 60 mm
Rear 120 Radiator	120 x 180 mm
