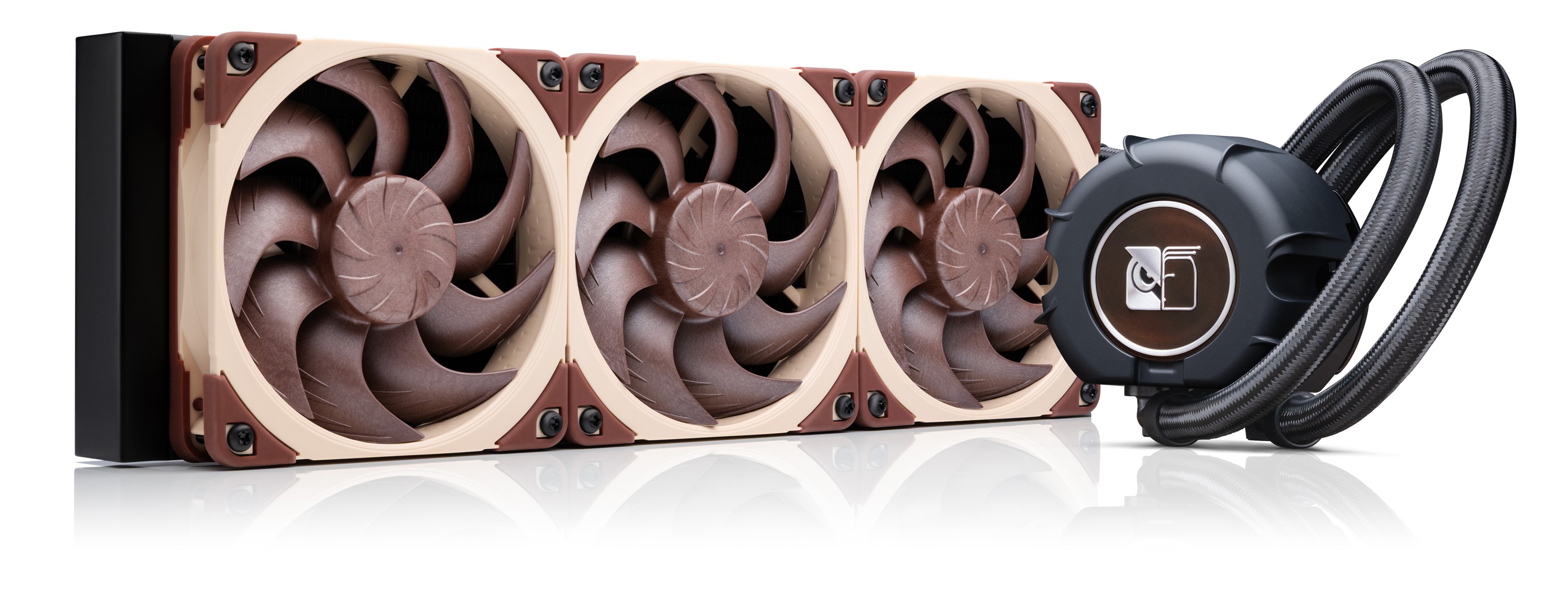

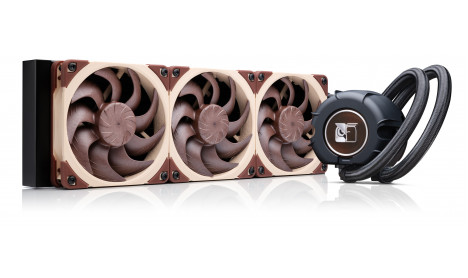

NOCTUA NL-LC1-36AIO LIQUID COOLER 360MM
- Product Code: NLLC136-147
- Availability: In Stock
-
$0
Specifications
Fan specifications:
Fan model: NF-A12x25 G2 PWM Sx2-PP
Size and form factor: 120 x 120 x 25 mm (square)
Speed range: 0 to 1800 rpm
Maximum airflow: 107.3 m³/h (63.15 CFM)
Maximum acoustical noise: 22.5 dB(A)
Maximum static pressure: 3.14 mm H₂O
Rated voltage: 12 V
Connector: 4-pin
Colour: Brown
Warranty: 6 years
Pump block specifications:
Pump model: Asetek Emma V2
Pump block height: 70 mm
Motor type and phases: Three phase
Impeller type: Centrifugal (closed)
Bearing: Ceramic sleeve and shaft
Rated voltage: 12 V
Starting voltage: 9.5 V
Maximum operating voltage: 13.2 V
Maximum input power: 6 W
Typical input power: 2 W
Maximum input current: 1.7 A
Typical input current: 0.5 A
Maximum rotational speed in manual mode: 3400 rpm
Maximum rotational speed in balanced mode: 2600 rpm
Maximum rotational speed in quiet mode: 2100 rpm
Rotational speed at 20% PWM: 750 rpm
Rotational speed at 0% PWM: 750 rpm
Maximum acoustical noise in manual mode: 14.9 dB(A)
Maximum acoustical noise in balanced mode: 7.8 dB(A)
Maximum acoustical noise in quiet mode: less than 5 dB(A)
Cable length: 500 mm
Connector type: 4-pin PWM
Pin configuration:
Pin 1: Black: Ground (GND)
Pin 2: Black: Voltage (Vcc)
Pin 3: Black: RPM Signal
Pin 4: Black: PWM Signal
Cold plate and mounting specifications:
Cold plate material: Copper CU1100 (99.95% high-purity)
Cold plate size: 55.5 x 55.5 mm
Construction: Skived fin micro channels
Mounting system: SecuFirm2+
Mounting hole pitch: 78 mm
Pump noise absorber: NL-PNA1
Auxiliary cooling fan: Optional (NL-ACF1)
Coolant specifications:
Composition: 22% propylene glycol, 78% water
Inhibitors: Anti-freeze, Anti-corrosion, Antibiological
Compatibility: Non-toxic, Electrically conductive
Tube specifications:
Material: EPDM (braided)
Tube length: 400 mm
Outer diameter: 12.5 mm
Inner diameter: 7 mm
Minimum bend radius: 26 mm
Radiator specifications:
Form factor: 360 mm
Fins material: Aluminium
Tubes material: Aluminium
Frame material: Steel
Fins per inch (FPI): 20
Radiator size: 279.5 x 120 x 30 mm
Fan configuration: 2x 120x120x25 mm
Screw threads: UNC 6-32
