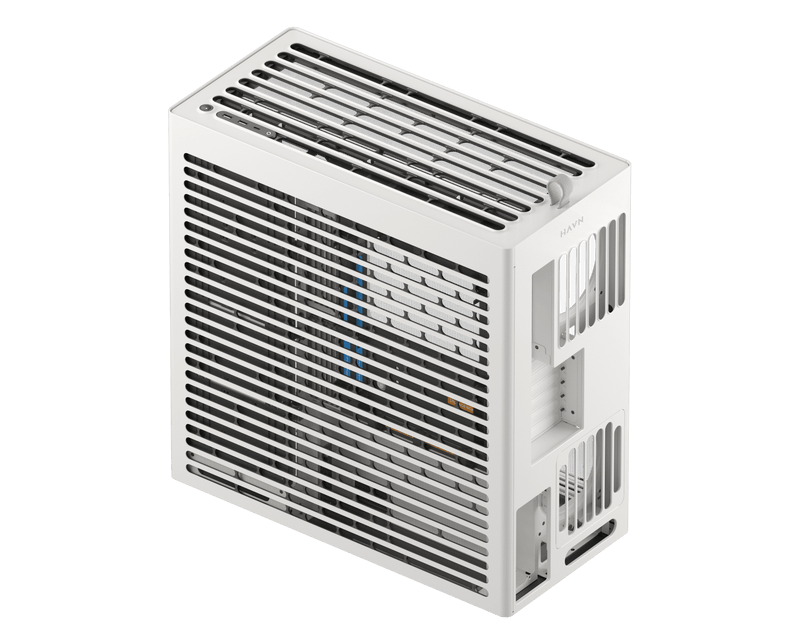

HAVN HS420 BASE PREMIUM CASE EDITION WHITE 2025

  • Product Code: HAVNHS420BW
  • Availability: In Stock
  • $229

Product Specifications

Form Factor

Mid Tower

Material

SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)

541 x 259.5 x 547 mm

Net Weight

17.84kg

Warranty

1 year

Notice
Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.

Please review our full warranty terms for more information.

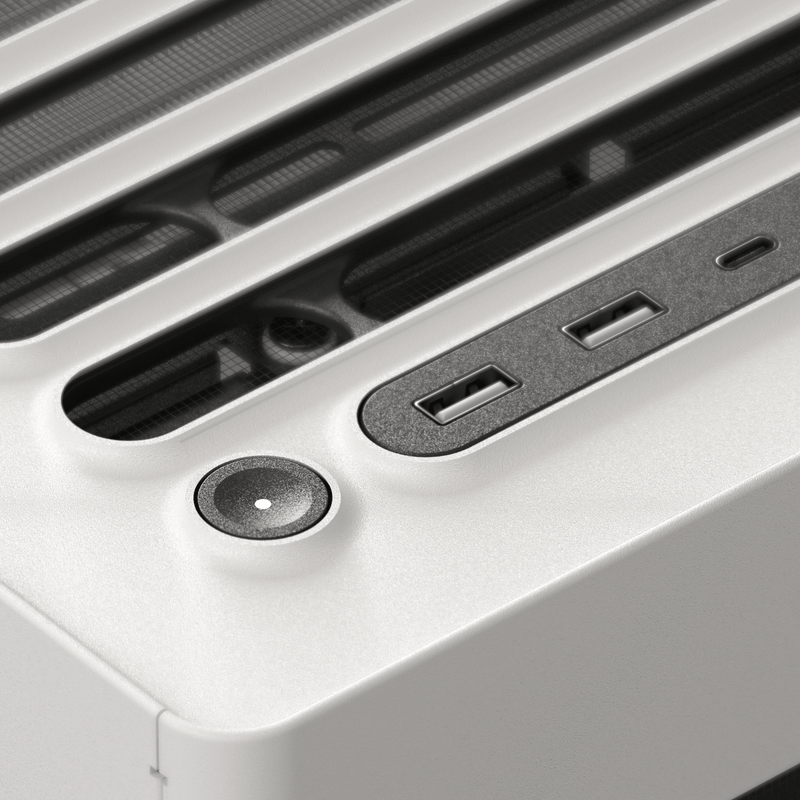

Front I/O

USB 3.2 Gen 2 Type-C x1

USB 3.2 Gen 1 Type-A x2

Audio Jack x1

Power & Reset Button x1

Motherboard Support

E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots

6

Fan Support

Maximum Amount: 11

Top: 3 x 120 / 3 x 140 mm

Right: 3 x 120 / 3 x 140 mm

Bottom: 3 x 120 / 3 x 140 mm

Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)

Fan PWM Repeater

Channel: Total 12 ch

Location: Cable Management Tray x1

PSU shroud x1

CPU Tower Cooler Clearance

Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.

Liquid Cooling Support

Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)

Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)

Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)

Graphics Card Clearance

Length: Up to 480 mm

Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.

GPU Support

2 - 5 Slots

RAM Clearance

If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm

Power Supply Support

ATX

Length: Up to 220mm (Clearance - 290mm)

Storage

Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''

Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''

Storage Bay Included: 4x

Internal Display Support

VESA Mounting: 75 x 75 mm / 100 x 100 mm

Display Size: 14 in. (Max)

Location: Front Right Pillar

Dust Filter

Bottom: 1 (Removable)

Top: 1 (Built-in)

Right: 1 (Built-in)

Rear Bottom: 1 (Removable)
