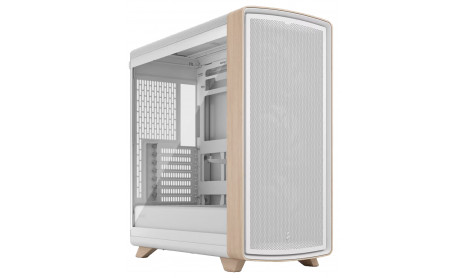

FRACTAL DESIGN SUMMIT CHALK WHITE TG CLEAR TINT
- Product Code: FDTG-2345
- Availability: In Stock
-
$0
SPECIFICATIONS
General
Color: White
Dedicated 3.5" Drive Mounts: 0
Dedicated 2.5" Drive Mounts: 2
Combined 3.5"/2.5" Drive Mounts: 2
Expansion Slots: 7
Ambient Lighting: No
Adjust Pro Hub Included: No
Front I/O
2 × USB Type-A 5Gbps
1 × USB Type-C 20Gbps
1 × Audio/Microphone Combo Jack
1 × Power Button
Panels & Features
Front Panel: Ventilated Steel Mesh
Left Side Panel: Tempered Glass
Right Side Panel: Industrial Steel
Dust Filter: PSU Dust Filter
Cable Grommets: Yes
Hook-and-Loop Straps: Yes
Cable Routing Space: 34mm
Tool-Free Access
Front Panel
Top Panel
PCIe Cover
Both Side Panels
Bottom Filter
Top Bracket
PSU Bracket
Captive Thumbscrews
PSU Bracket
Top Radiator Bracket
FAN SUPPORT
Front: 3 × 120mm or 3 × 140mm
Top: 3 × 120mm or 2 × 140mm
Rear: 1 × 120mm
Included Fans: 3 × Momentum 14 Front Fans
COMPATIBILITY
Motherboard: Mini-ITX / Micro-ATX / ATX / E-ATX
Reverse Motherboard: Reverse Micro-ATX / Reverse ATX
Reverse Connector Motherboard Support: Yes
PSU: ATX
Maximum PSU Length: 253mm
Maximum GPU Length: 425mm
Maximum CPU Cooler Height: 173mm
Radiator Support
Top: 120 / 240 / 280 / 360mm
Front: 120 / 240 / 280 / 360mm
Rear: 120mm
DIMENSIONS & WEIGHT
Product Dimensions: 495 × 229 × 515mm
Package Dimensions: 595 × 350 × 620mm
Volume: 55.43L
Net Weight: 10.0kg
Gross Weight: 11.9kg
PRODUCT INFORMATION
SKU: FD-C-SUM1A-02
EAN / GTIN-13: 7340172712695
UPC: 843276112691
Warranty: 2 Years
Package Contents
1 × Computer Case
1 × Accessory Box
1 × User Manual
Accessory Box Contents
11 × Motherboard Screws (6-32)
4 × PSU Screws (6-32)
1 × Motherboard Replacement Standoff
8 × HDD Screws
8 × HDD Rubber Grommets
16 × M3 SSD Screws
1 × PWM Extension Cable
4 × Cable Ties
1 × Stud-Catcher Replacement
1 × Hook-and-Loop Strap
