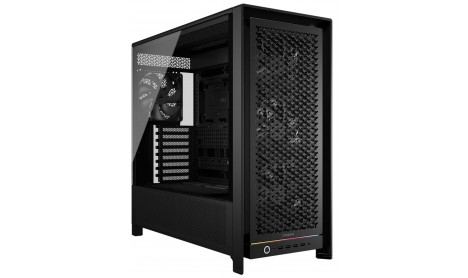

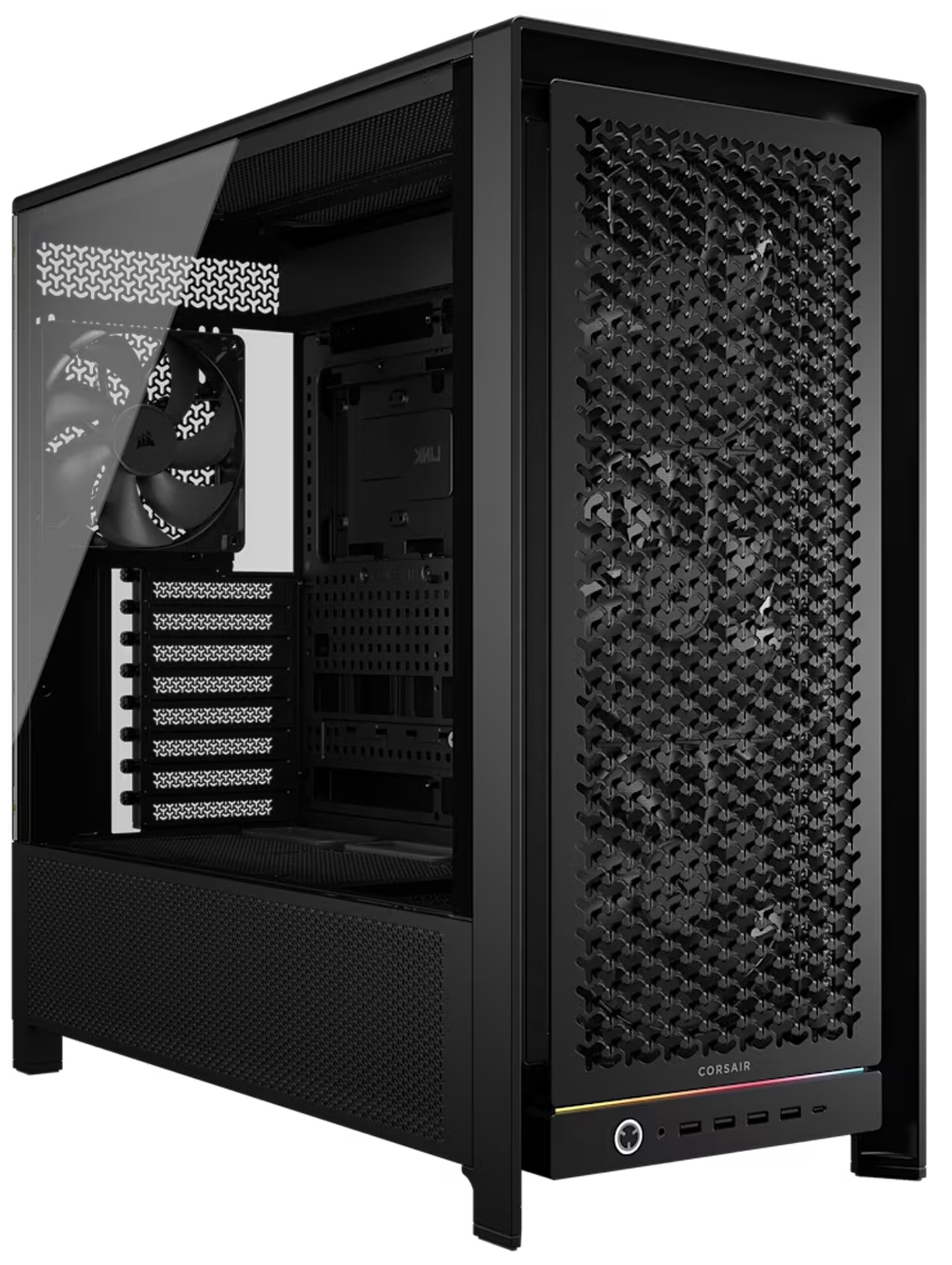

CORSAIR FRAME 5000D RS HIGH-AIRFLOW MID-TOWER PC CASE
- Product Code: 5000DRS243
- Availability: In Stock
-
$0
Tech Specs
|
Case Supported |
Mini-ITX | MicroATX | ATX | E-ATX (305mm x 277mm) |
|

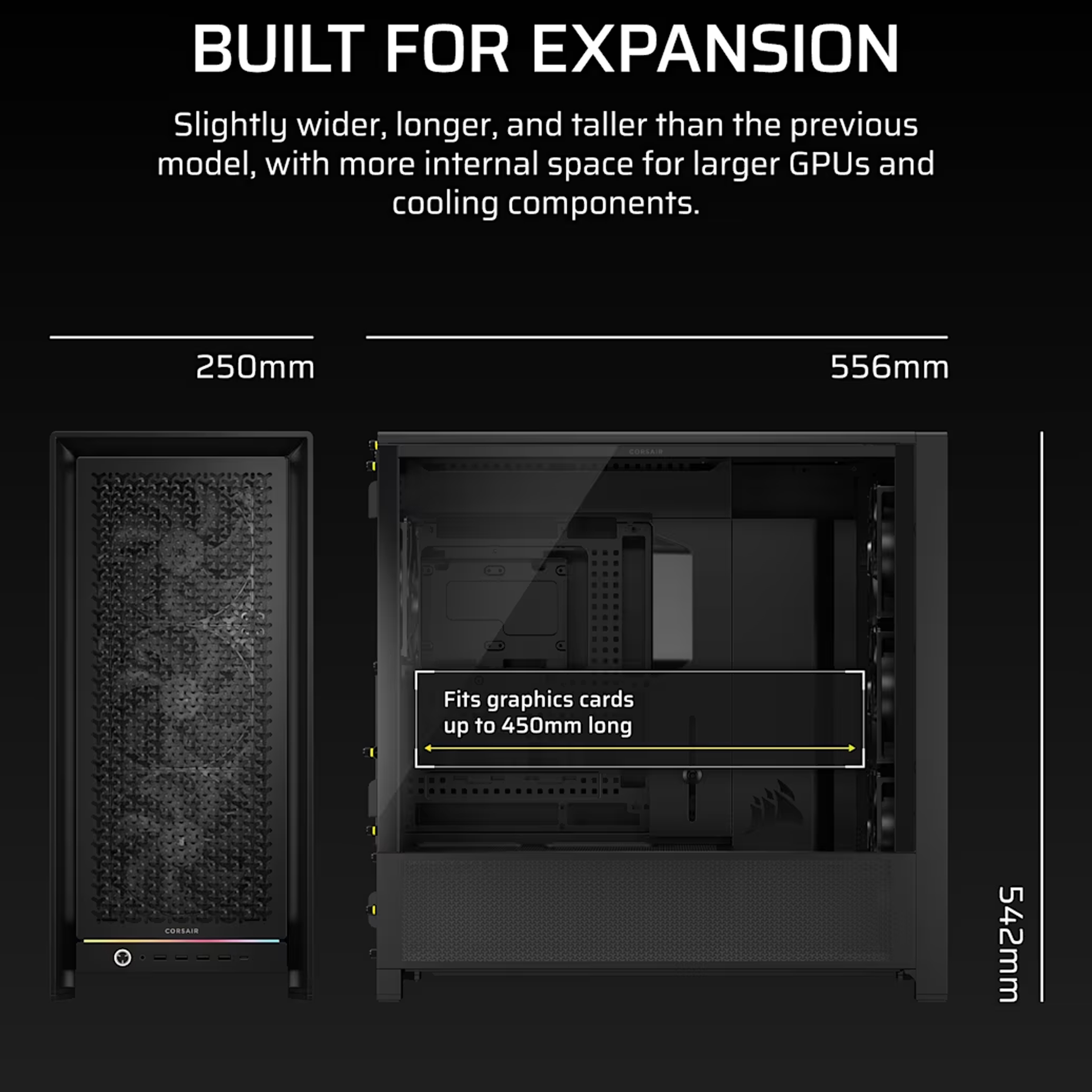

Case Height |
542mm |
|
Case Length |
556mm |
|
Case Width |
250mm |
|
Material |
Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
|
Color |
BLACK |
|
Case Size |
Mid-Tower |
|
Case Window |
Tempered Glass |
|
Internal 3.5" Drive Bays |
2 |
|
Internal 2.5" Drive Bays |
6 |
|
Maximum CPU Cooler Height |
175mm |
|
Case Front IO |
(1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x)
Audio in/out |
|
Maximum GPU Length |
450mm |
|
Weight |
15.48kg |
|
Case Expansion Slots |
8 horizontal + 3 vertical |
|
Case Power Supply |
ATX |
|
Radiator Support - Top |
420mm, 360mm, 280mm, 240mm |
|
Radiator Support - Front |
420mm, 360mm, 280mm, 240mm |
|
Radiator Support - Bottom |
None |
|
Radiator Support - Side |
420mm, 360mm, 280mm, 240mm |
|
Radiator Support - Rear |
140mm, 120mm |
|

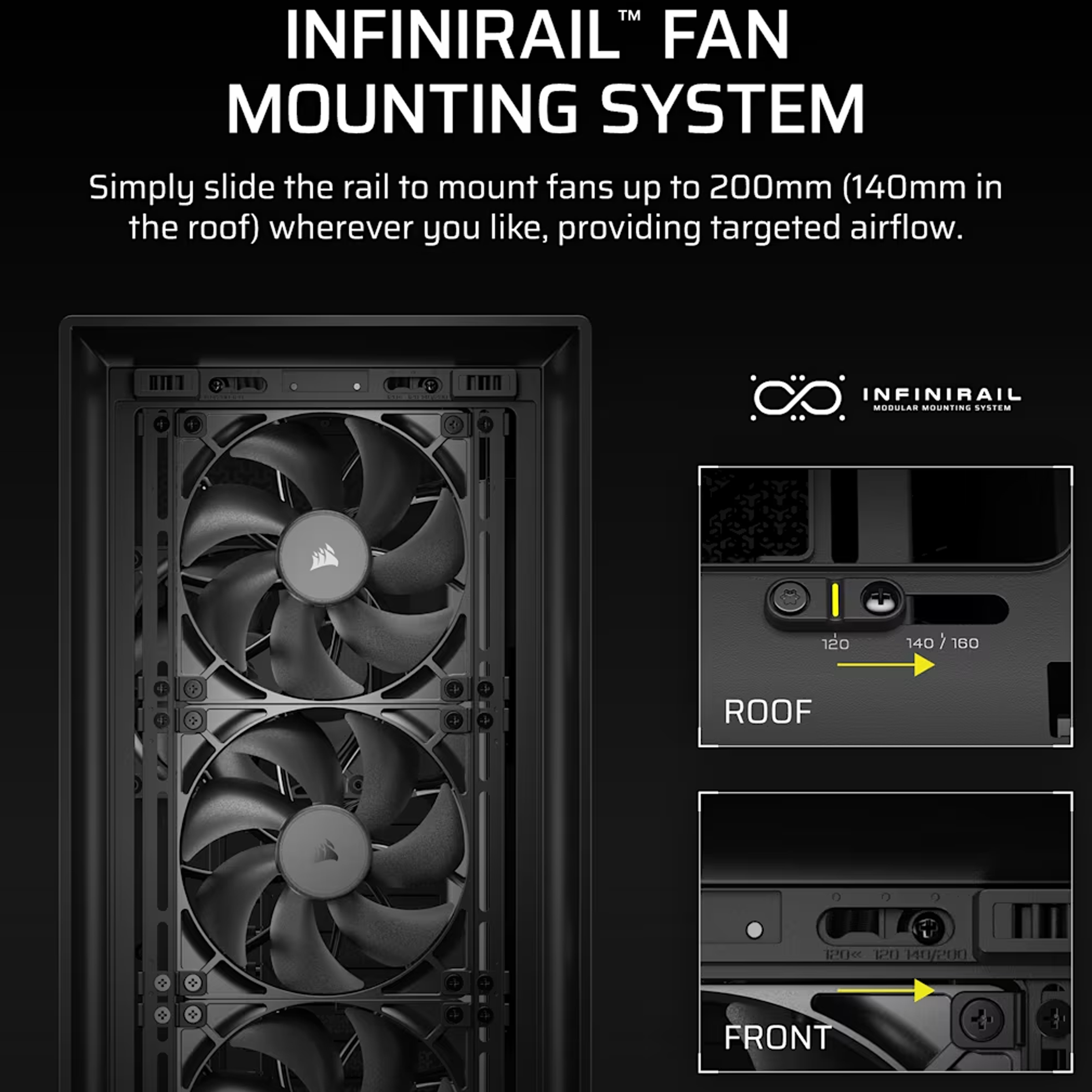

Fan Support - Top |
3x 120mm, 3x 140mm |
|
Fan Support - Front |
3x 120mm, 3x 140mm, 2x 200mm |
|
Fan Support - Bottom |
4x 120mm |
|
Fan Support - Side |
3x 120mm, 3x 140mm |
|
Fan Support - Rear |
1x 120mm, 1x 140mm |
|
Front IO Motherboard Connections |
1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x
F_PANEL, 1x 5V ARGB |
|
Reverse Connector Motherboard Support |
Yes |
|
Included Fans |
RS Series |
|
Dust Filtration |
Yes |
|
Cable Routing Space |
42mm |
|
RapidRoute Included |
Yes |
|
Left Side Panel |
Tempered Glass |
|
Right Side Panel |
Steel |
|
Vertical Mount Support |
Supported (Riser Card Sold Separately) |
