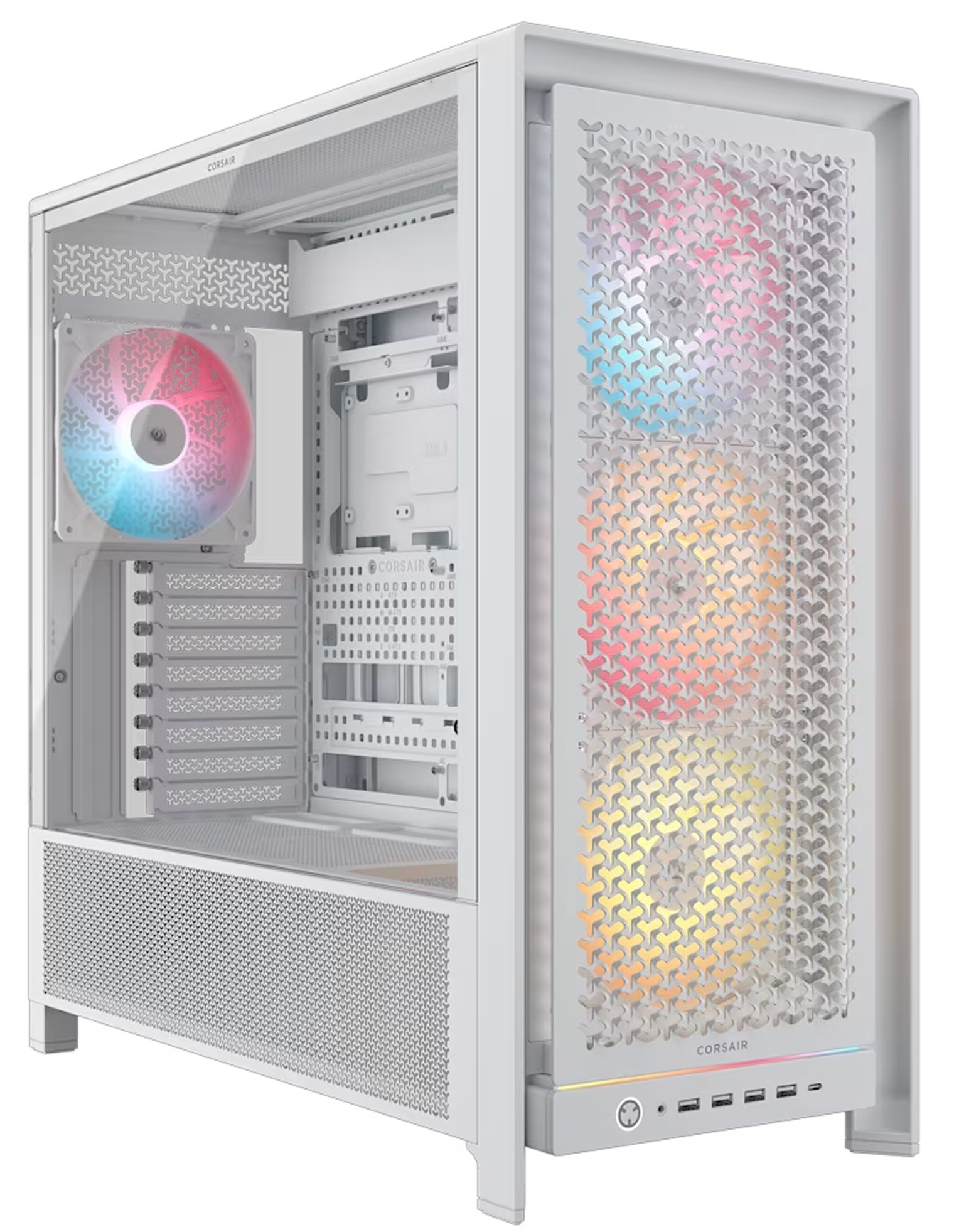

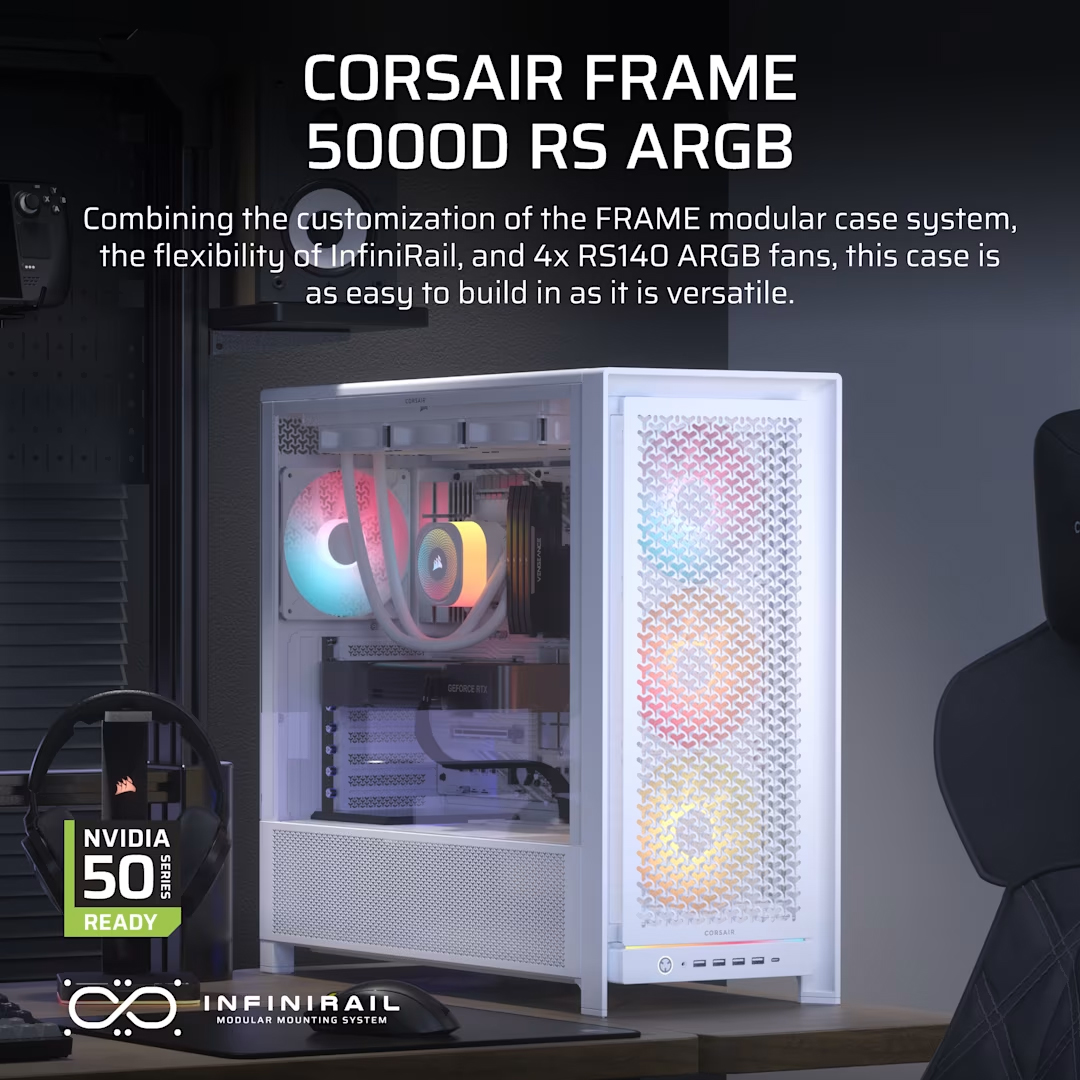

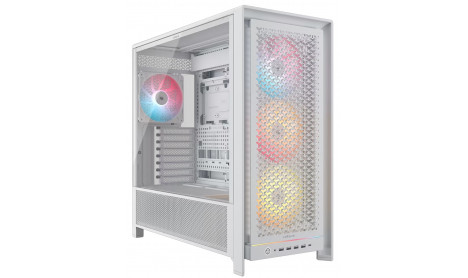

CORSAIR FRAME 5000D RS ARGB HIGH AIRFLOW MID-TOWER WHITE
- Product Code: CC-9011310-WW
- Availability: In Stock
-
$0
Tech Specs
Case Supported Mini-ITX | MicroATX | ATX | E-ATX (305mm x 277mm)

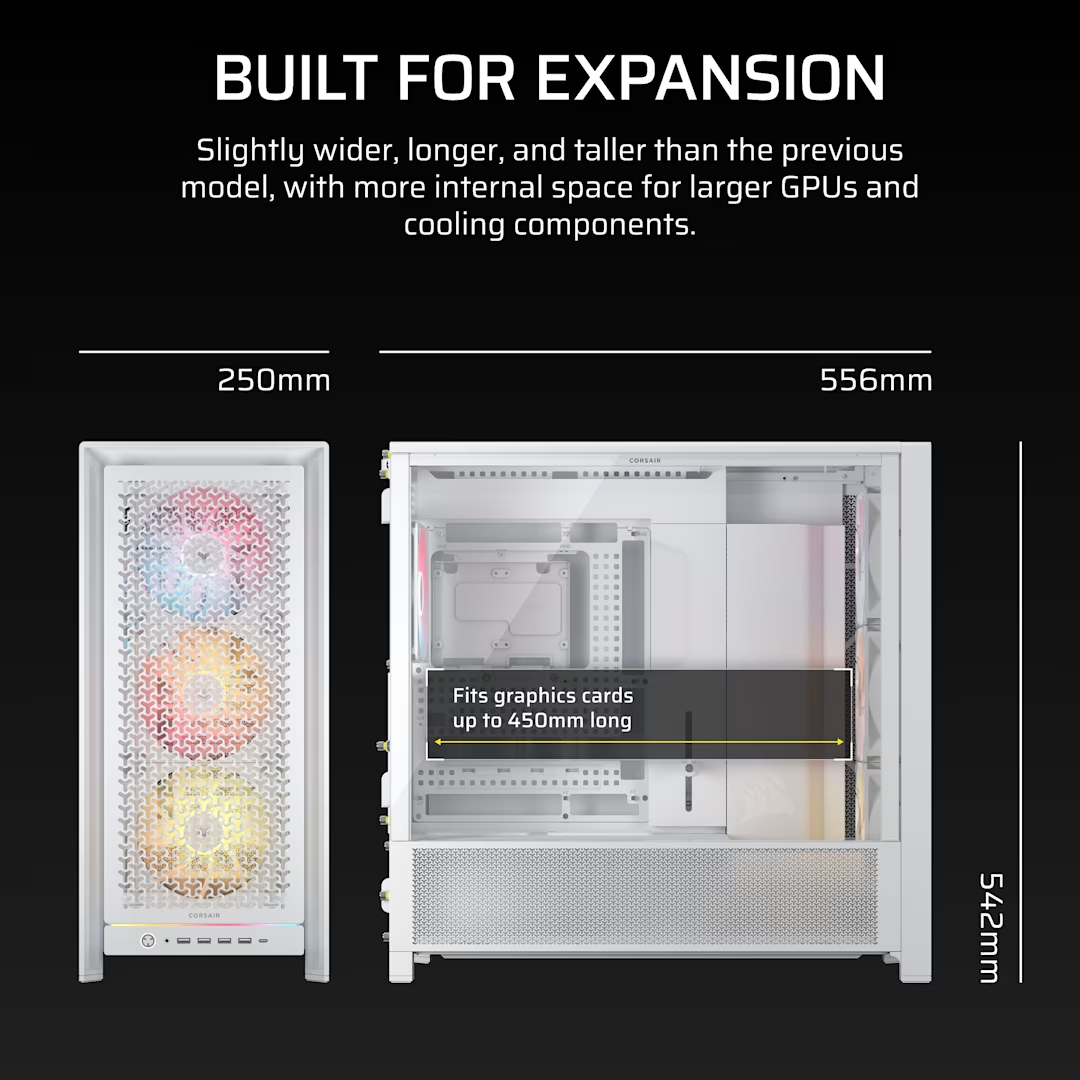

Case Height 542mm
Case Length 556mm
Case Width 250mm
Material Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Color BLACK
Case Size Mid-Tower
Case Window Tempered Glass
Internal 3.5" Drive Bays 2
Internal 2.5" Drive Bays 6
Maximum CPU Cooler Height 175mm
Case Front IO (1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length 450mm
Weight 15.48kg
Case Expansion Slots 8 horizontal + 3 vertical
Case Power Supply ATX
Radiator Support - Top 420mm, 360mm, 280mm, 240mm
Radiator Support - Front 420mm, 360mm, 280mm, 240mm
Radiator Support - Bottom None
Radiator Support - Side 420mm, 360mm, 280mm, 240mm
Radiator Support - Rear 140mm, 120mm

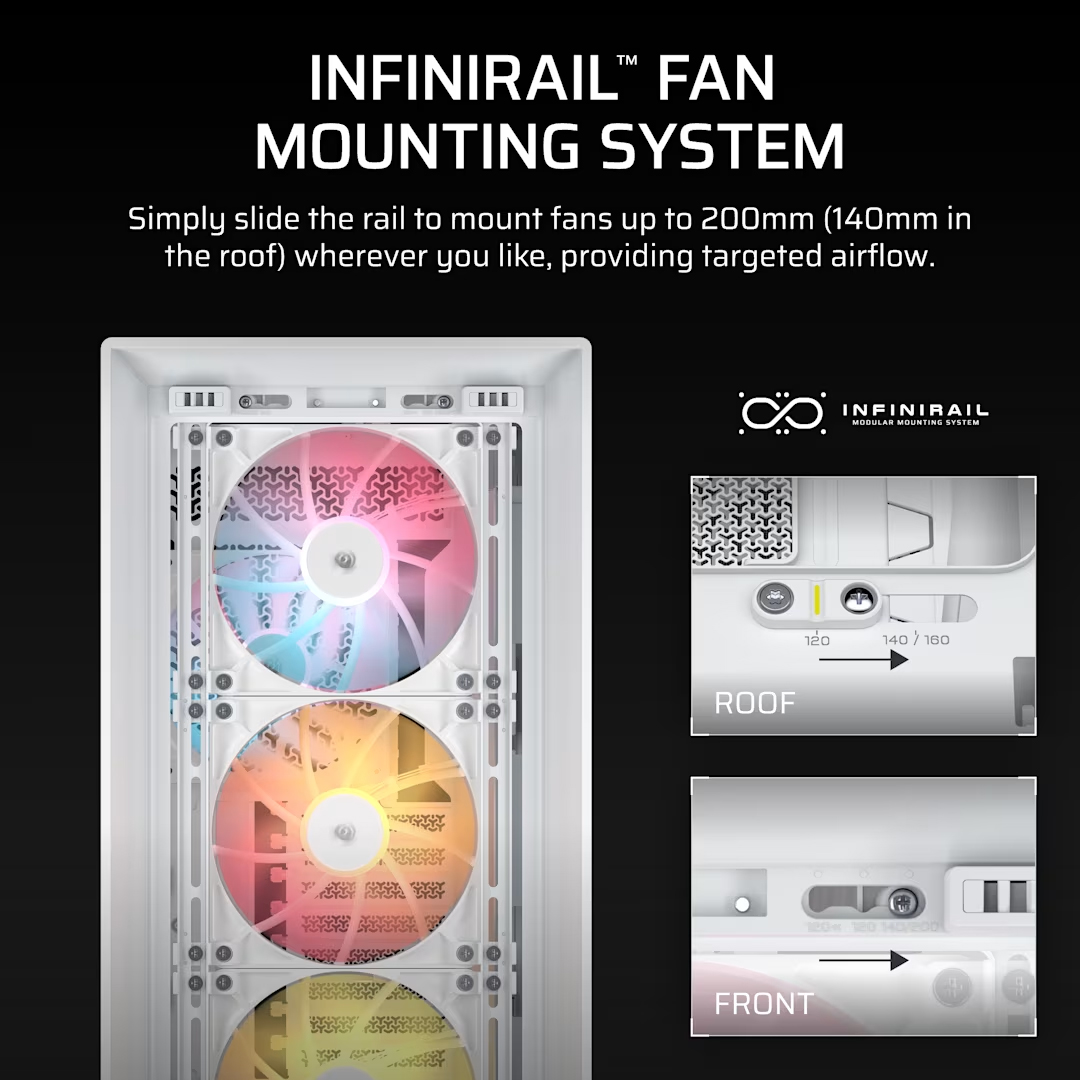

Fan Support - Top 3x 120mm, 3x 140mm
Fan Support - Front 3x 120mm, 3x 140mm, 2x 200mm
Fan Support - Bottom 4x 120mm
Fan Support - Side 3x 120mm, 3x 140mm
Fan Support - Rear 1x 120mm, 1x 140mm
Front IO Motherboard Connections 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB
Reverse Connector Motherboard Support Yes
Included Fans RS ARGB Series
Dust Filtration Yes
Cable Routing Space 42mm
RapidRoute Included Yes
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
Tags: CORSAIR FRAME 5000D RS ARGB HIGH AIRFLOW MID-TOWER WHITE
