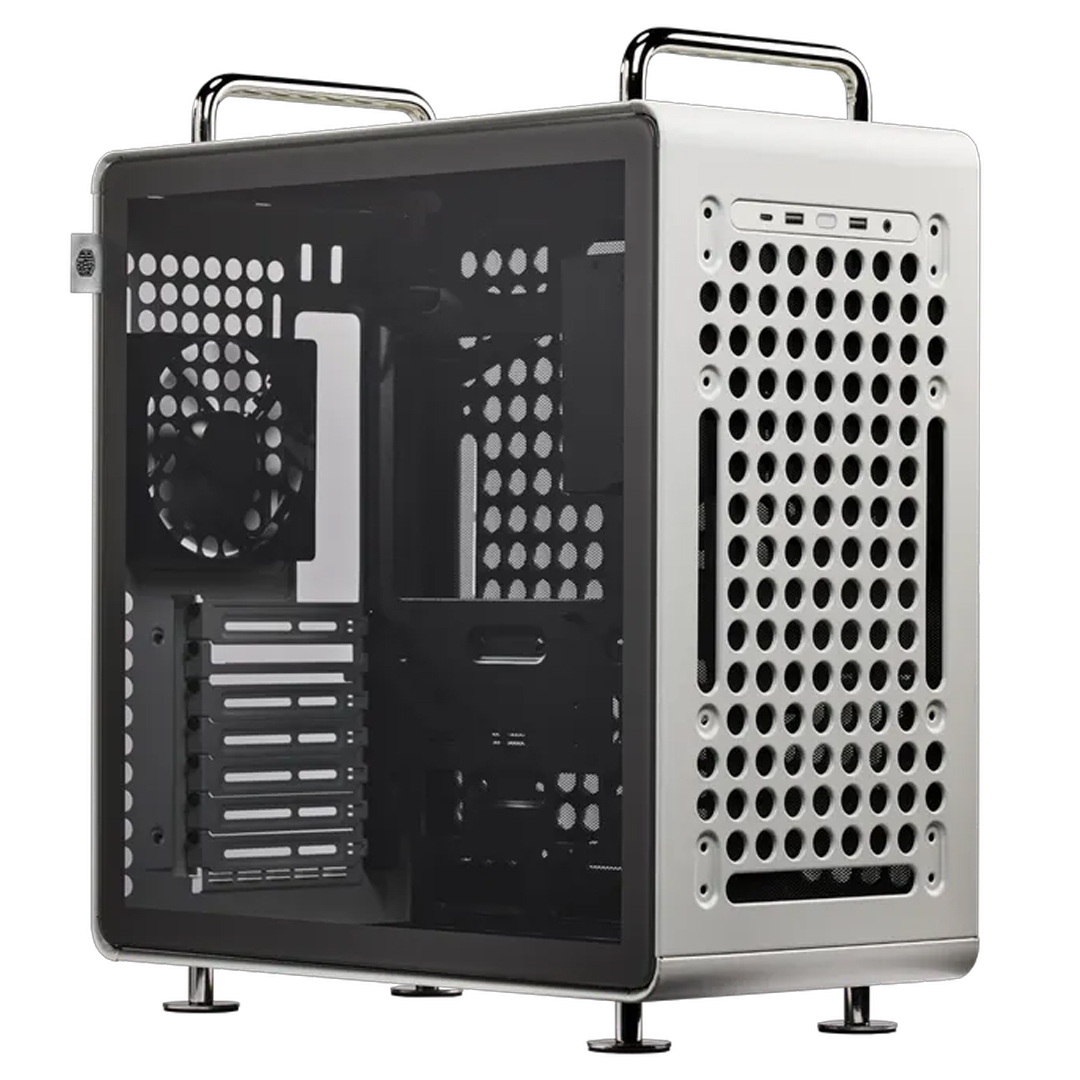

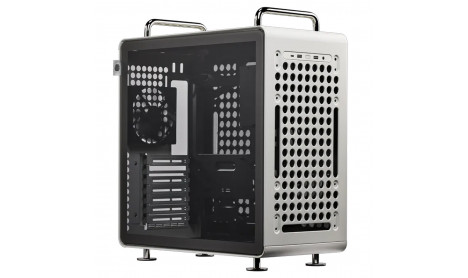

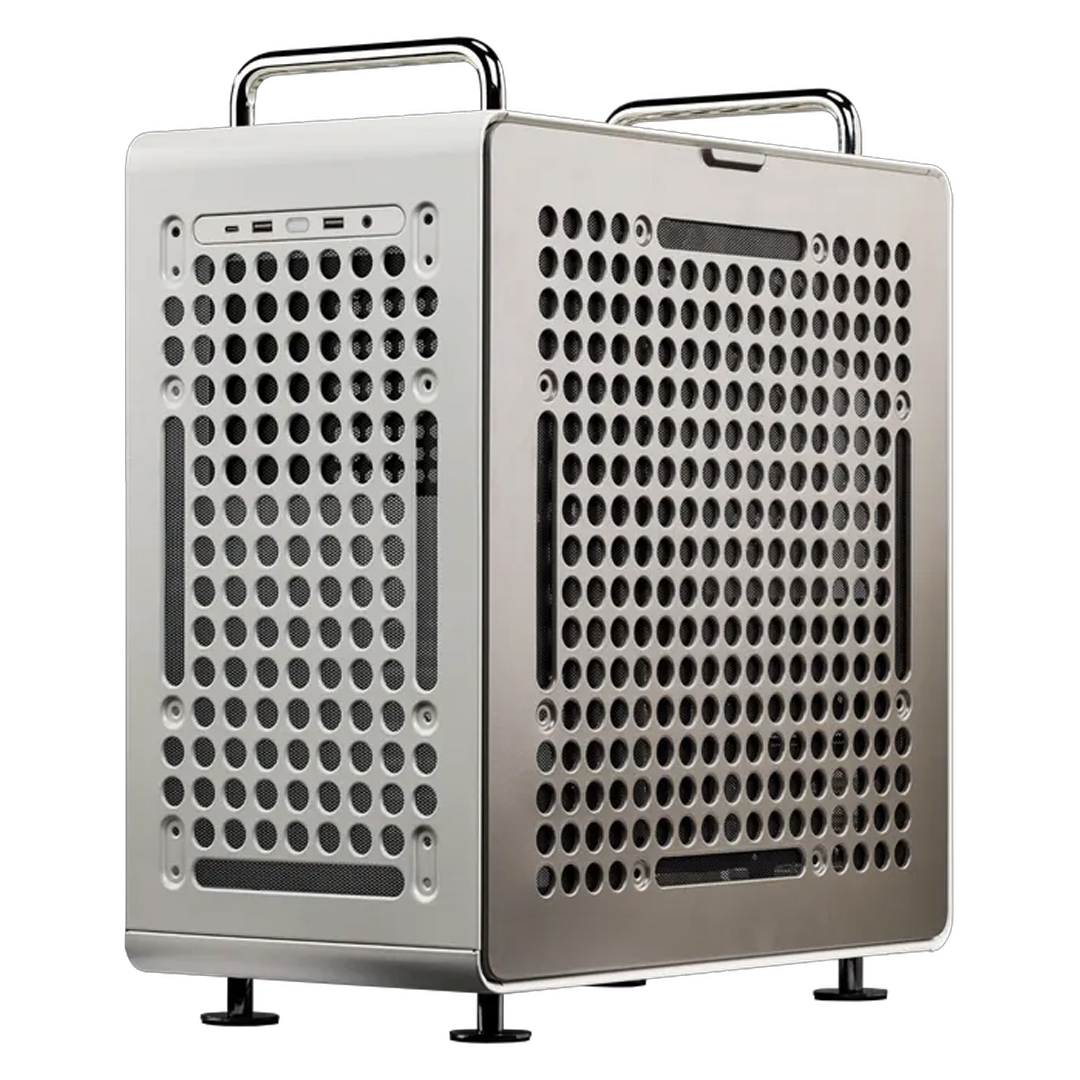

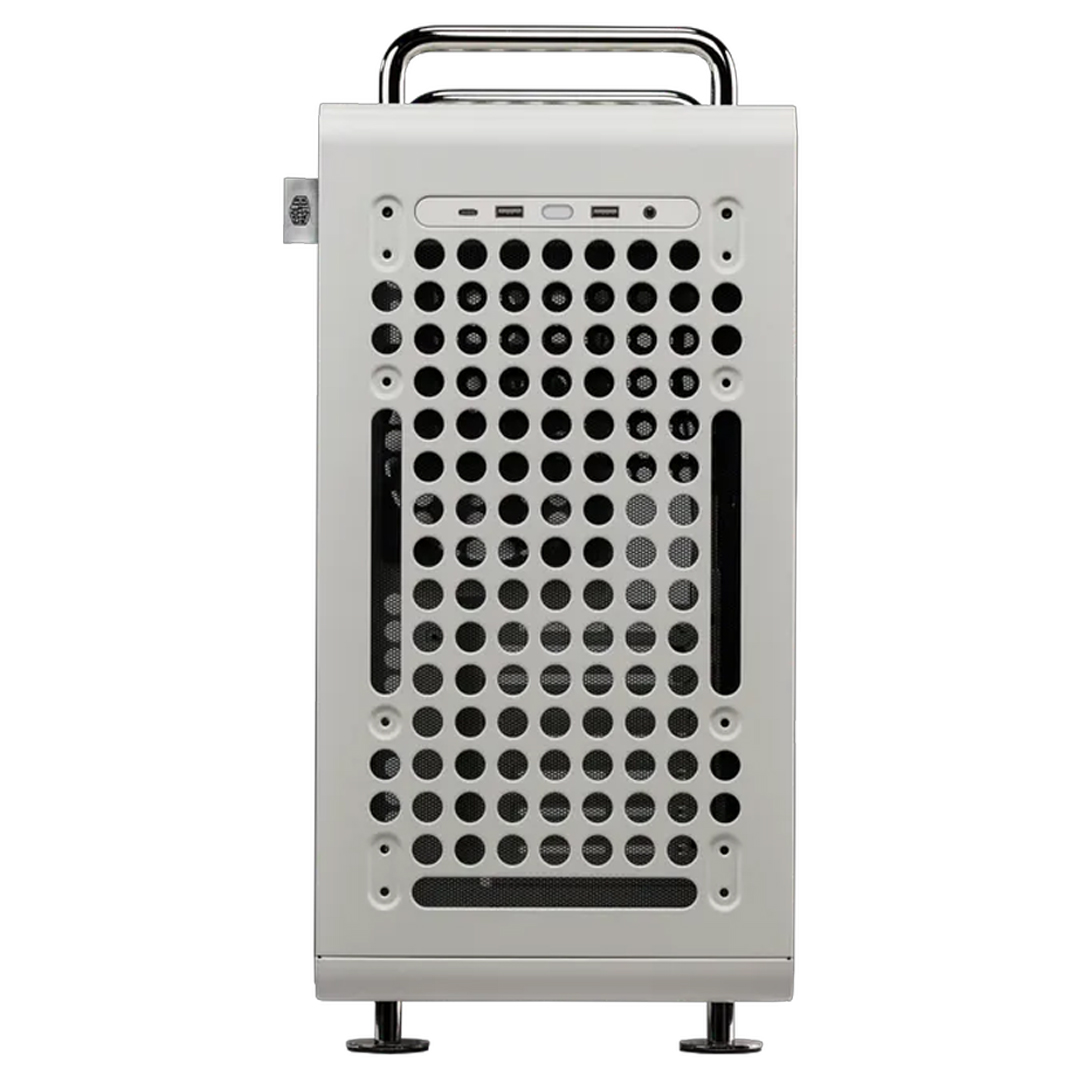

COOLER MASTER QUBE 540 MID TOWER - MOONSTONE
- Product Code: CMQUBESF540MTMS
- Availability: In Stock
-
$0
Product Identity
Product Name: QUBE 540
Series: QUBE Series
Size: Mid Tower
Model Number (Stardust Iron): Q540-MGNN-S00
Model Number (Moonstone): Q540-LGNN-S00
Color(s): Stardust Iron / Moonstone
Warranty: 2 years
Build Materials & Physical Specs
Materials - Exterior: Steel
Material - Side Panel (Right): Steel
Material - Side Panel (Left): TG (Tempered Glass)
Dimensions (L x W x H) Incl. Protrusions: 438.5 x 225 x 492.1 mm
Dimensions (L x W x H) Excl. Protrusions: 425 x 225 x 425 mm
Volume (w/o protrusions): 40.64 L
Volume (with panel, protrusions and feet): 48.55 L
Compatibility & Expansion
Motherboard Support: ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
Expansion Slots: 7
Drive Bays - 5.25" ODD: N/A
Drive Bays - 3.5" HDD: 1 (Shared 3.5" and 2.5" mounting on PSU bracket)
Drive Bays - 2.5" SSD: 2 (Max. 5)
I/O Connectivity
USB Ports: 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
Audio In / Out: 1 x 3.5 Mic / Audio Combo Jack
Cooling Support
Fan Support - Front: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support - Top: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support - Rear: 1x 120mm
Fan Support - Bottom: 3 x 120 mm / 2 x 140 mm
Preinstalled Fan(s) - Front/Top: N/A
Pre-installed Fans - Rear: 1x 120mm Black Fan
Radiator Support
Radiator Support - Front: 140 / 280 / 360 mm (w/o I/O panel)
Radiator Support - Top: 140 / 280 / 360 mm (w/o I/O panel)
Radiator Support - Rear: 120 mm
Radiator Support - Bottom: 140 / 280 / 360mm (w/o I/O panel)
Clearances & General Info
Clearances - CPU Cooler: 172 mm
Clearances - Power Supply: 200 mm
Clearances - Graphics Card: 415 mm (w/o Front Fan)
Cable Routing - Behind Motherboard Tray: 27 mm
Dust Filters: Top / Bottom / Front
Power Supply Support: ATX / SFX
Note: -
