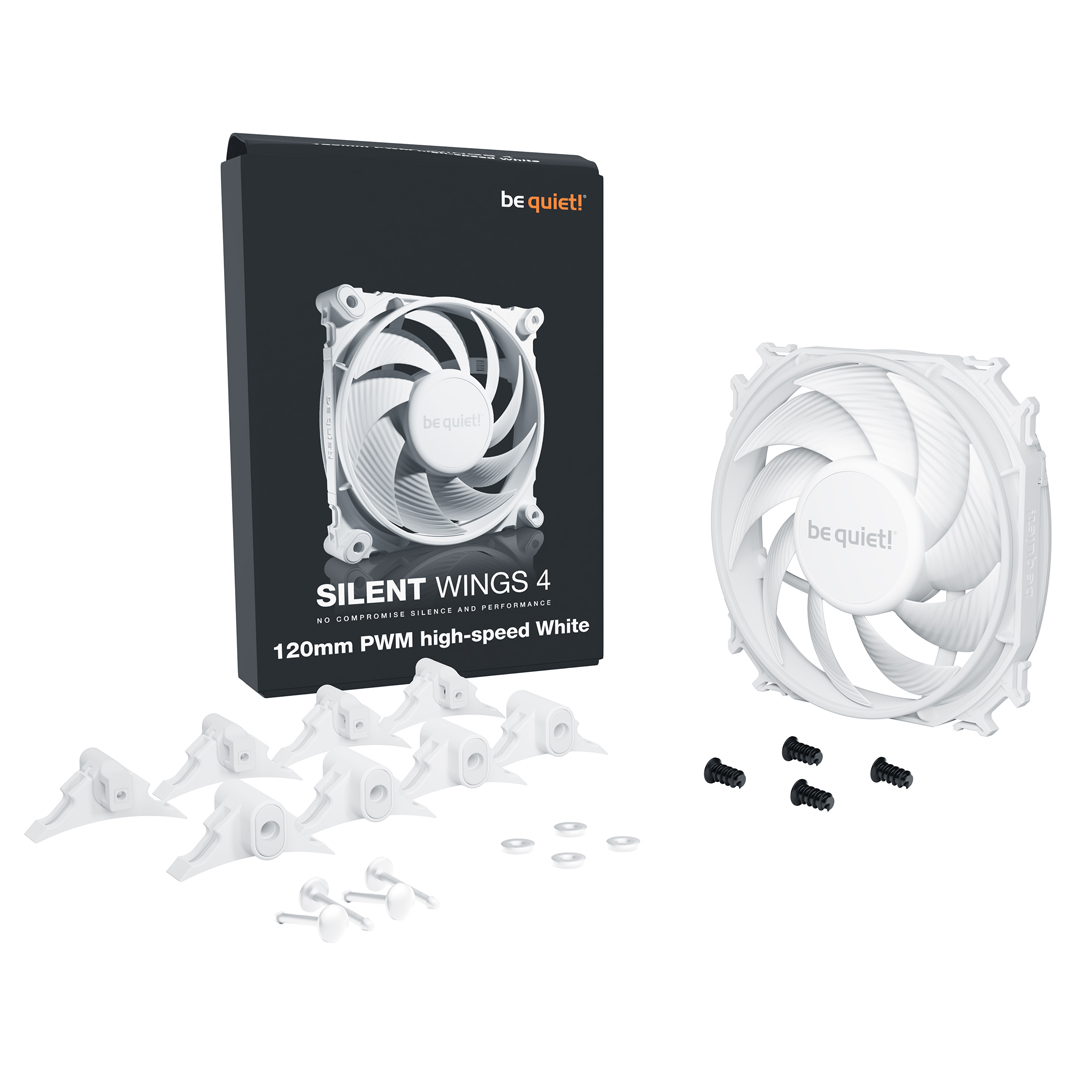

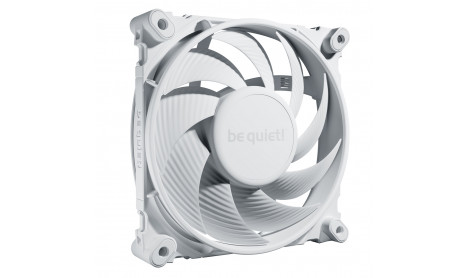

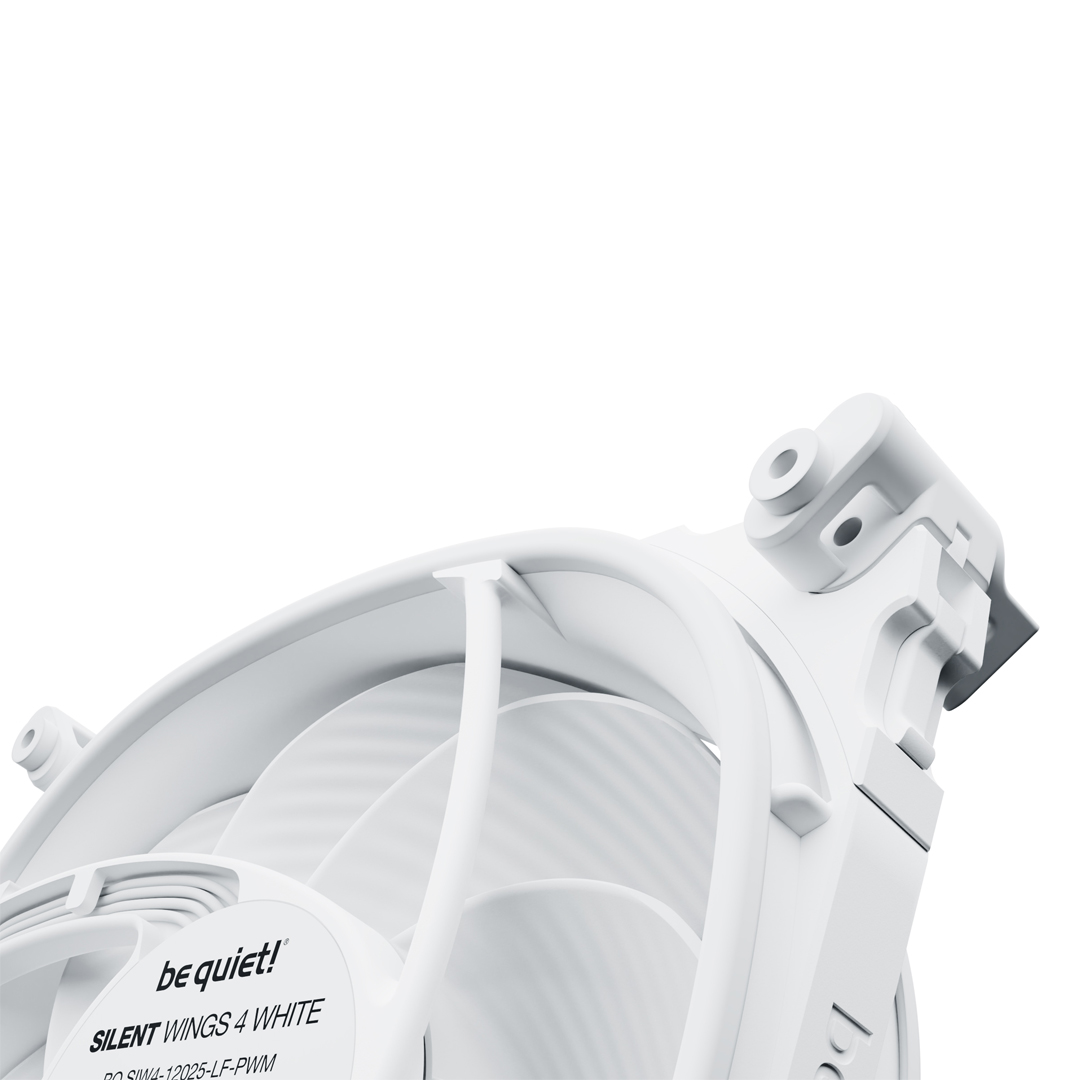

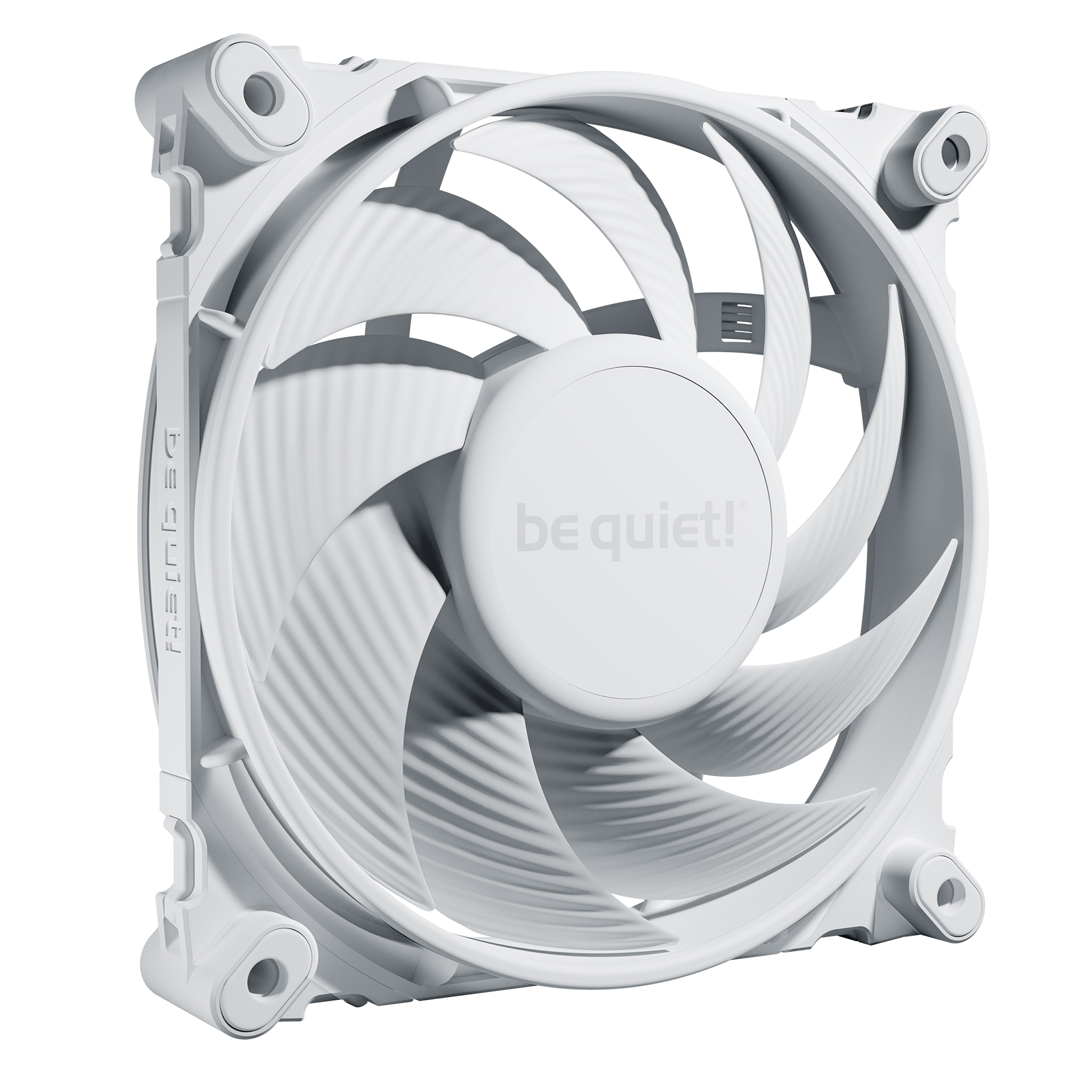

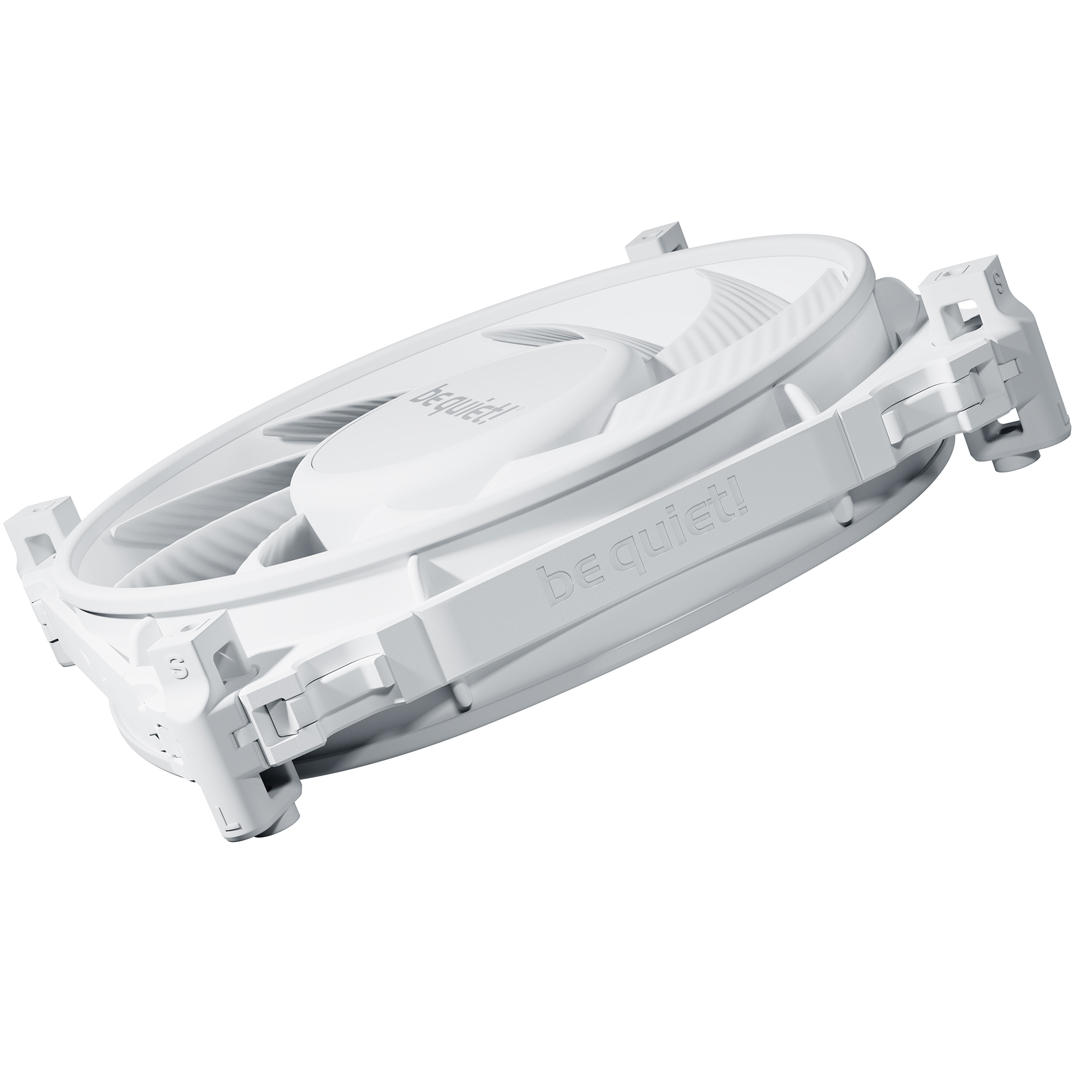

BE QUIET SILENT WINGS 4 120MM PWM HIGH-SPEED PC FAN CASE - WHITE
- Product Code: BQSW4120MMHPW
- Availability: In Stock
-
$0
General data
Model Silent Wings 4 120mm PWM high-speed
Dimensions (mm) 120
Color option Black
Lighting -
Fan speed at 100% PWM / 12V (rpm) 2500
Noise level at 100% PWM / 12V (dB(A)) 31.2
Airflow at 100% PWM / 12V (CFM / m3/h) 76.7 / 130.3
Air Pressure at 100% PWM / 12V (mm H2O) 3.96
Mechanical specifications
Dimensions (L x W x H), (mm) 120 x 25 x 120
Weight incl. fixed cables (g) 190
Bearing technology FDB
Motor technology 6-pole fan motor
Push pin fixing ✓
Screw fixing ✓
Cables / Connectors
Daisy-chain compatible -
Lighting connector -
Connector 4-pin PWM
Cable length (mm) 500
Cable sleeve ✓
Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h) 76.7 / 130.3
Air Pressure at 100% PWM / 12V (mm H2O) 3.96
Noise level at 100% PWM / 12V (dB(A)) 31.2
Lifespan (h / 25°C) 300,000
Zero RPM mode ✓
Electrical specifications
Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 - 13.2
Input current (A) 0.20
Safety current (A) 0.20
Input power (W) 2.4
Rated Current LED (A) -
Logistics data and RRP
Article number BL094
EAN code 4260052188866
Dimensions, package (L x W x H), (mm) 192 x 31 x 141
Gross weight, package (kg) 0.35
Pieces per packaging unit 40
Dimensions, shipping box (L x W x H), (mm) 432 x 387 x 375
Gross weight, shipping box (kg) 15.04
RRP (€) 23.90
Tags: BE QUIET SILENT WINGS 4 120MM PWM HIGH-SPEED PC FAN CASE - WHITE
