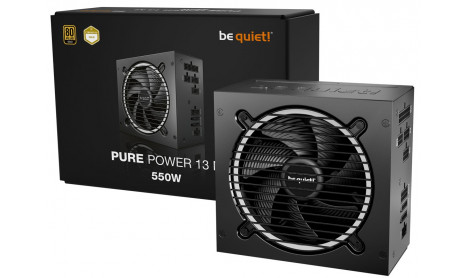

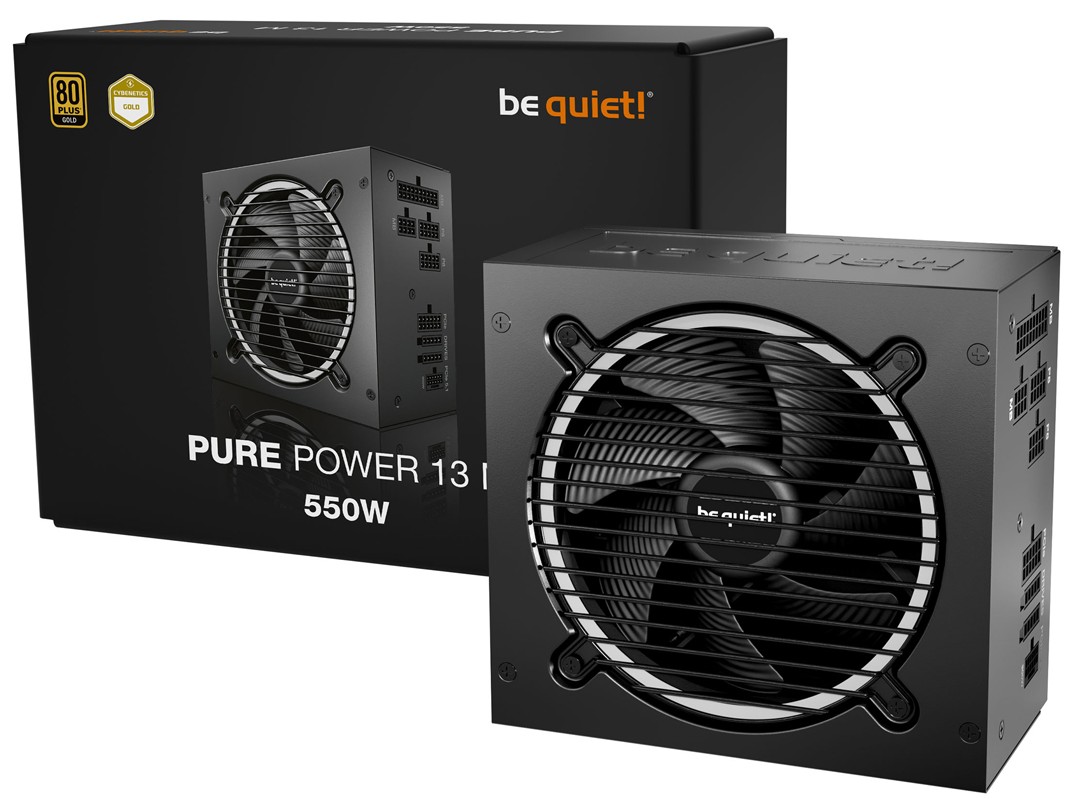

BE QUIET PURE POWER 13 (ATX 3.1/PCIE 5.1) - 550W
- Product Code: BQPP13 -550W
- Availability: In Stock
-
$0
General data
Model PURE POWER 13 M | 550W
Continuous power (W) 550
Peak power (W) 600
Form factor ATX 3.1
Form factor EPS 12V Version 2.92
Topology LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 10 / 5
Power factor at 100% load >0.98
Modern standby ✓
Power consumption in standby (W) <0.1
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40
Efficiency
80 PLUS certification Gold
Cybenetics ETA -
Efficiency (%) at 230V, 2% load 70.3
Efficiency (%) at 230V, 10% load 90.1
Efficiency (%) at 230V, 20% load 92.8
Efficiency (%) at 230V, 50% load 93.8
Efficiency (%) at 230V, 100% load 92.1
Fan and cooling technology
Cybenetics LAMBDA -
Fan Silence-optimized be quiet! fan
Fan size (mm) 120
Bearing technology Rifle
Motor technology 4-pole fan motor
Max. fan speed (rpm) 1800
dB(A) at 10% load 7.5
dB(A) at 20% load 7.5
dB(A) at 50% load 8.6
dB(A) at 100% load 14
Output
Multi-rail operation (12V rails) -
12V single rail operation ✓
Overclocking key -
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 45.8
+12V2 (A) N/A
+12V3 (A) N/A
+12V4 (A) N/A
+12V5 (A) N/A
+12V6 (A) N/A
-12V (A) 0,3
+5Vsb (A) 3
Max. combined power 12V (W) 550
Max. combined power 12V-2x6 (W) 300
Max. combined power 3.3V + 5V (W) 120
Hold-up time at 100% load (ms) 21.68
Hold-up time at 80% load (ms) 31.49
Power good signal (ms) 100 - 150
Cables and connectors
Modular cables ✓
Sleeved cables ✓
Flat cables ✓
Maximum cable length (cm) 95
Cable length to motherboard (cm) 55
No. of cables 6
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) -
P4 (CPU) -
12V-2x6 cables 1
PCI-e 6+2-pin (GPU) 2
PCI-e 6-pin (GPU) -
SATA 5
PATA 2
FDD (Floppy) -
Protection
OTP (over temperature protection) ✓
OCP (over current protection) ✓
OPP (over power protection) ✓
SCP (short circuit protection) ✓
OVP (over Voltage protection) ✓
UVP (under Voltage protection) ✓
SIP (Surge & Inrush protection) ✓
Safety certification
BSMI ✓
CB ✓
CCC ✓
CE ✓
cRUus -
cTUVus ✓
CU ✓
FCC ✓
RCM ✓
TÜV ✓
UKCA ✓
IRAM -
Casing
Dimensions without cable (L x W x H), (mm) 160 x 150 x 86
Weight (kg) 2.23
Color Black
