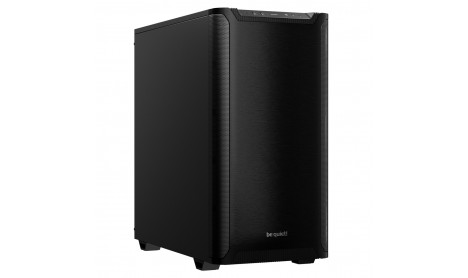

BE QUIET! PURE BASE 501 MIDI-TOWER - BLACK
- Product Code: BQ501-2343454B
- Availability: In Stock
-
$0
General data
Model Pure Base 501
Color option Black
Motherboard compatibility ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm) 450 x 231 x 449
Case size incl. stands (L x W x H), (mm) 450 x 231 x 463
Volume (l) 39.2
PSU form factor ATX PS/2
Net weight (kg) 6.7
Expansion slots 7
Pre-installed fans
Fan at top -
Fan at front 1x Pure Wings 3 140mm PWM
Fan at side -
Fan at rear 1x Pure Wings 3 140mm PWM
Fan at bottom -
Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96
Noise level at 100% PWM / 12V (dB(A)) 21.9
Voltage range (V DC) 5 - 13.2
Input power (W) 3.6
Input current (A) 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 80,000
Fan controller -
Maximum fan installation
Maximum fans 6
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) -
PSU shroud -
Optional radiator installation
Top (mm) 120 / 240
Front (mm) 120 / 140 / 240 / 280 / 360
Side (mm) -
Rear (mm) 120 / 140
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 180
Maximum dimensions incl. bottom fan (mm) 180
Graphics card
HDD cage (in height of graphics card) installed (mm) 368
HDD cage (in height of graphics card) removed (mm) 368
Maximum PCIe slots with vertical graphics card (pcs.) 5
Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 2
3.5 slots (max.) 2
2.5 slots (scope of delivery) 5
2.5 slots (max.) 5

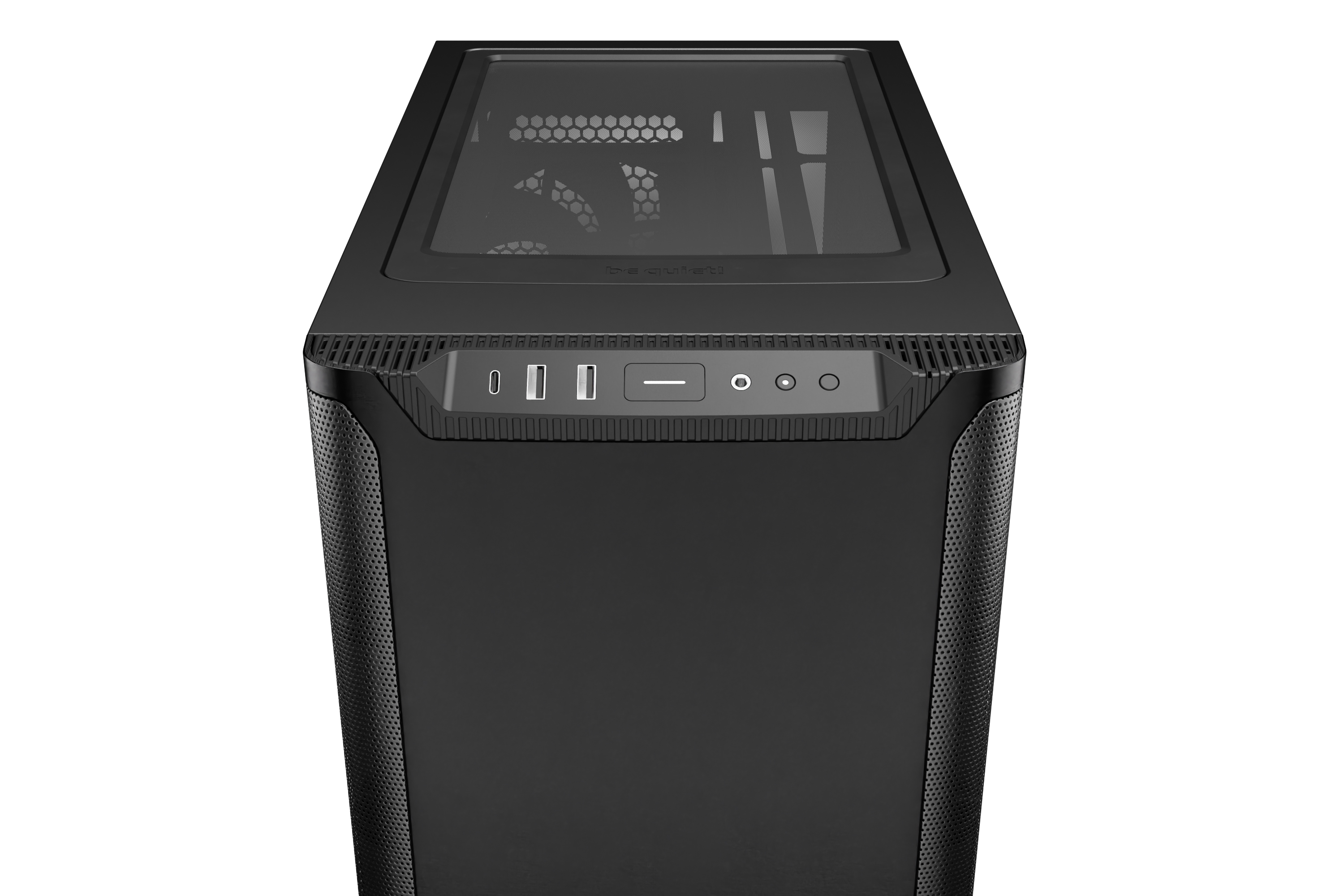

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -
Material
Top cover Steel
Front panel ABS
Side panel Steel
Side panel window -
Stands ABS
