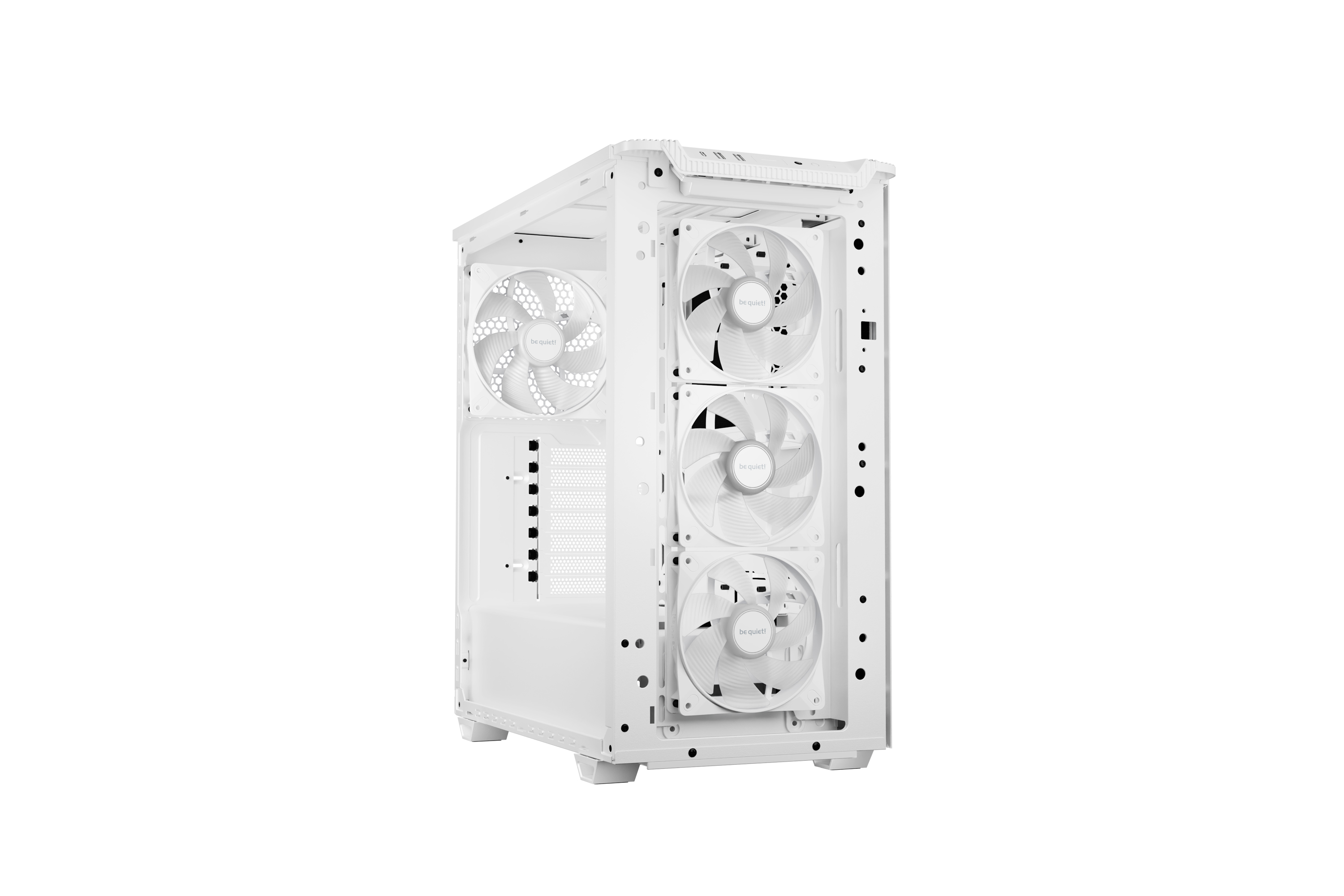

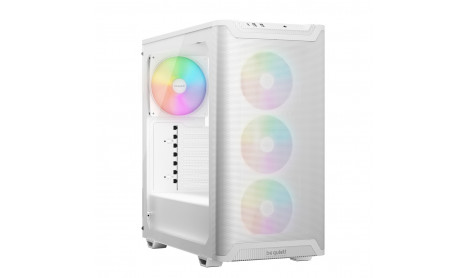

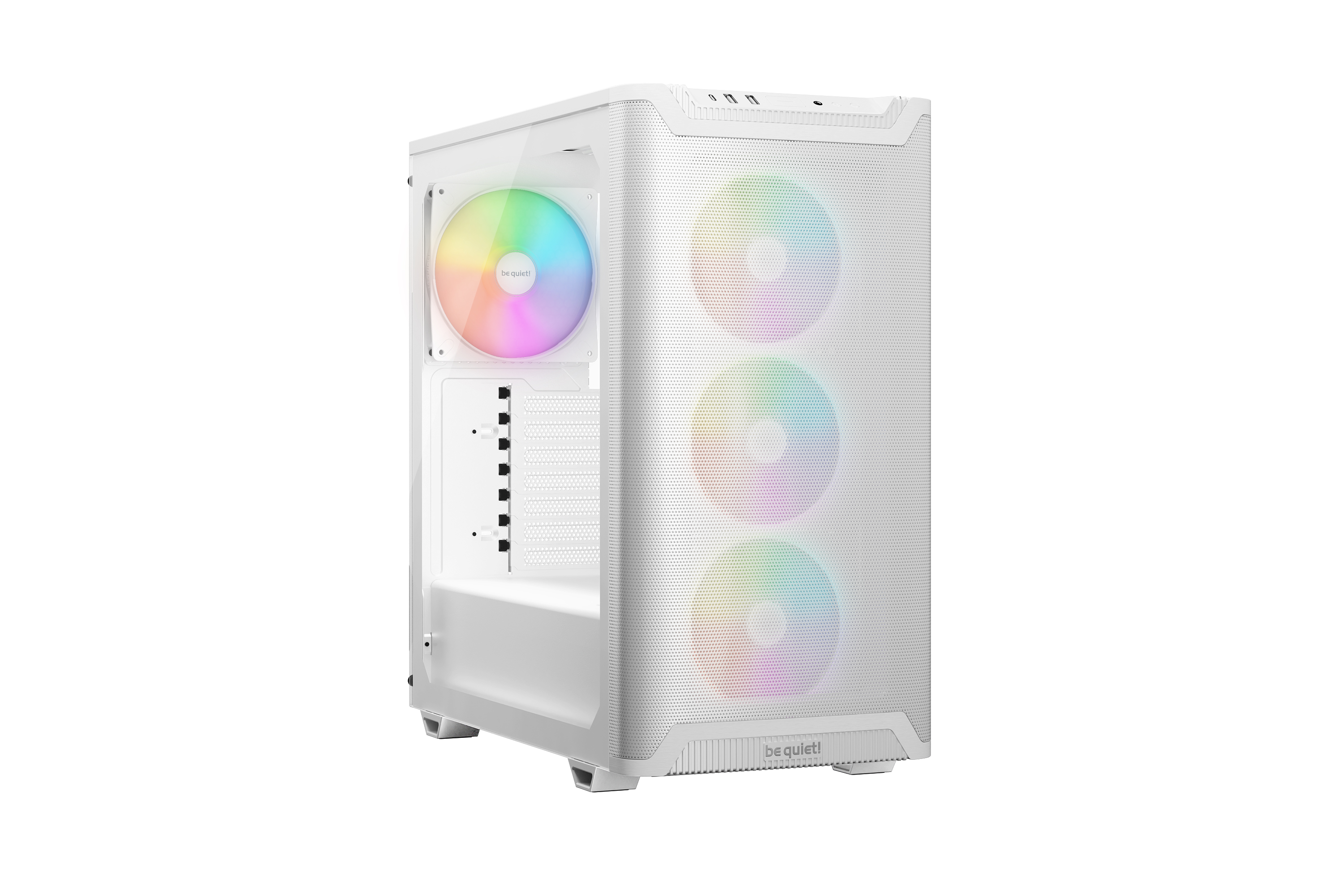

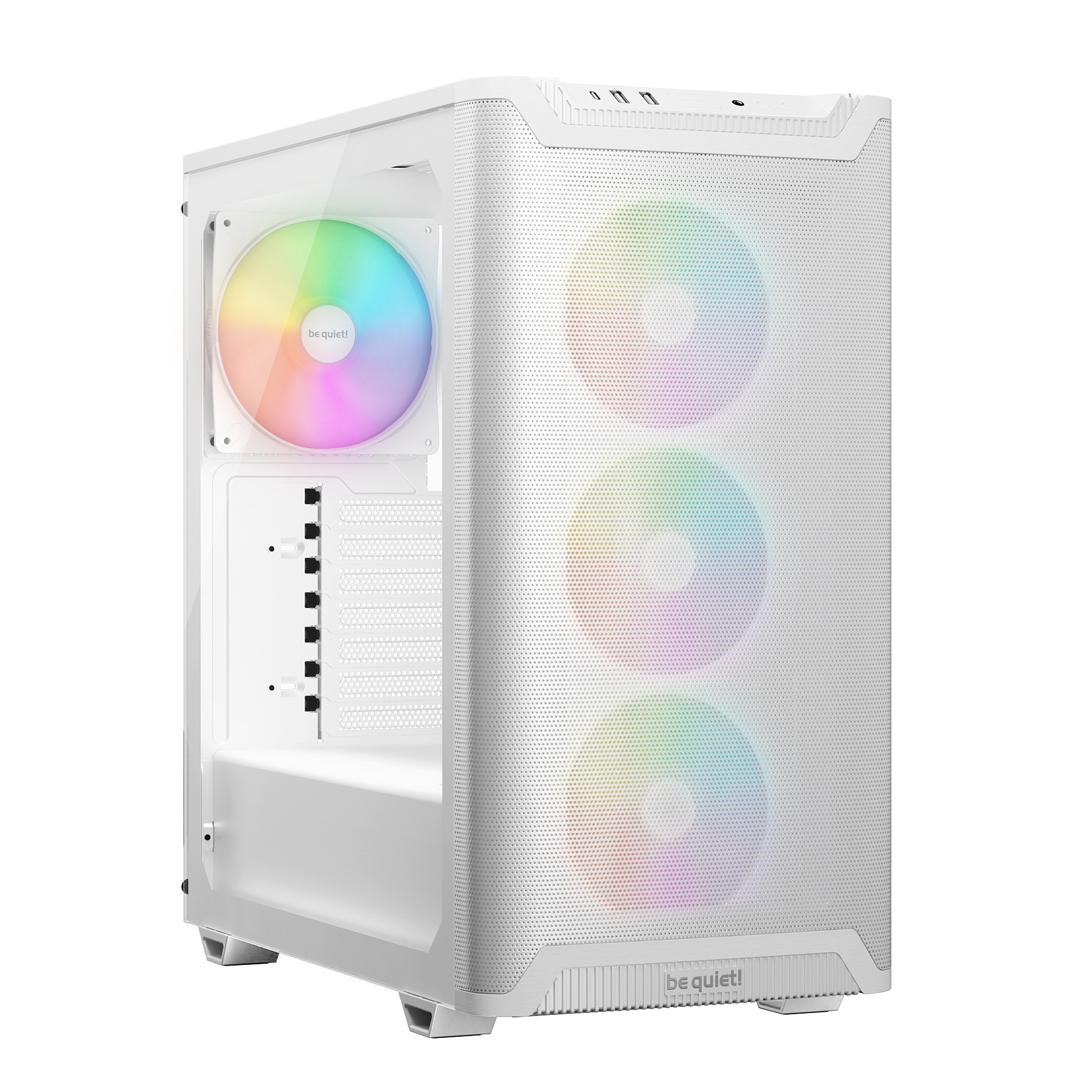

BE QUIET! PURE BASE 501 LX MIDI-TOWER - WHITE
- Product Code: BQLB501LXW
- Availability: In Stock
-
$0
General data
Model Pure Base 501 LX Black
Color option Black
Motherboard compatibility ATX / M-ATX / Mini-ITX

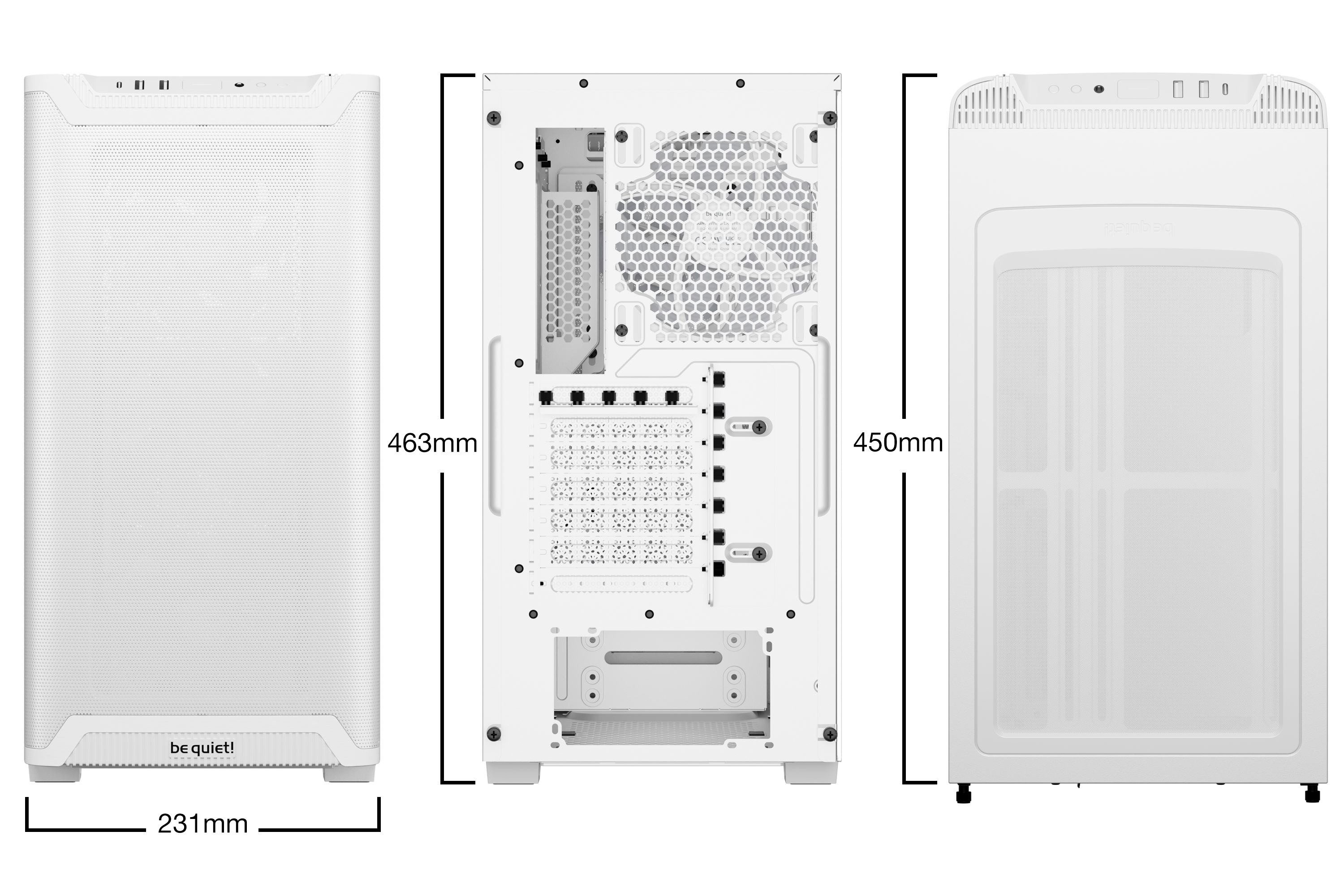

Case size excl. stands (L x W x H), (mm) 450 x 231 x 449
Case size incl. stands (L x W x H), (mm) 450 x 231 x 463
Volume (l) 39.2
PSU form factor ATX PS/2
Net weight (kg) 7.8
Expansion slots 7
Maximum fan installation
Maximum fans 6
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) -
PSU shroud -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 200
Maximum dimensions incl. bottom fan (mm)
Graphics card
HDD cage (in height of graphics card) installed (mm) 368
HDD cage (in height of graphics card) removed (mm) 368
Maximum PCIe slots with vertical graphics card (pcs.)
Cooling
Max.construction height of CPU cooler unit (mm) 178
Airflow channel -

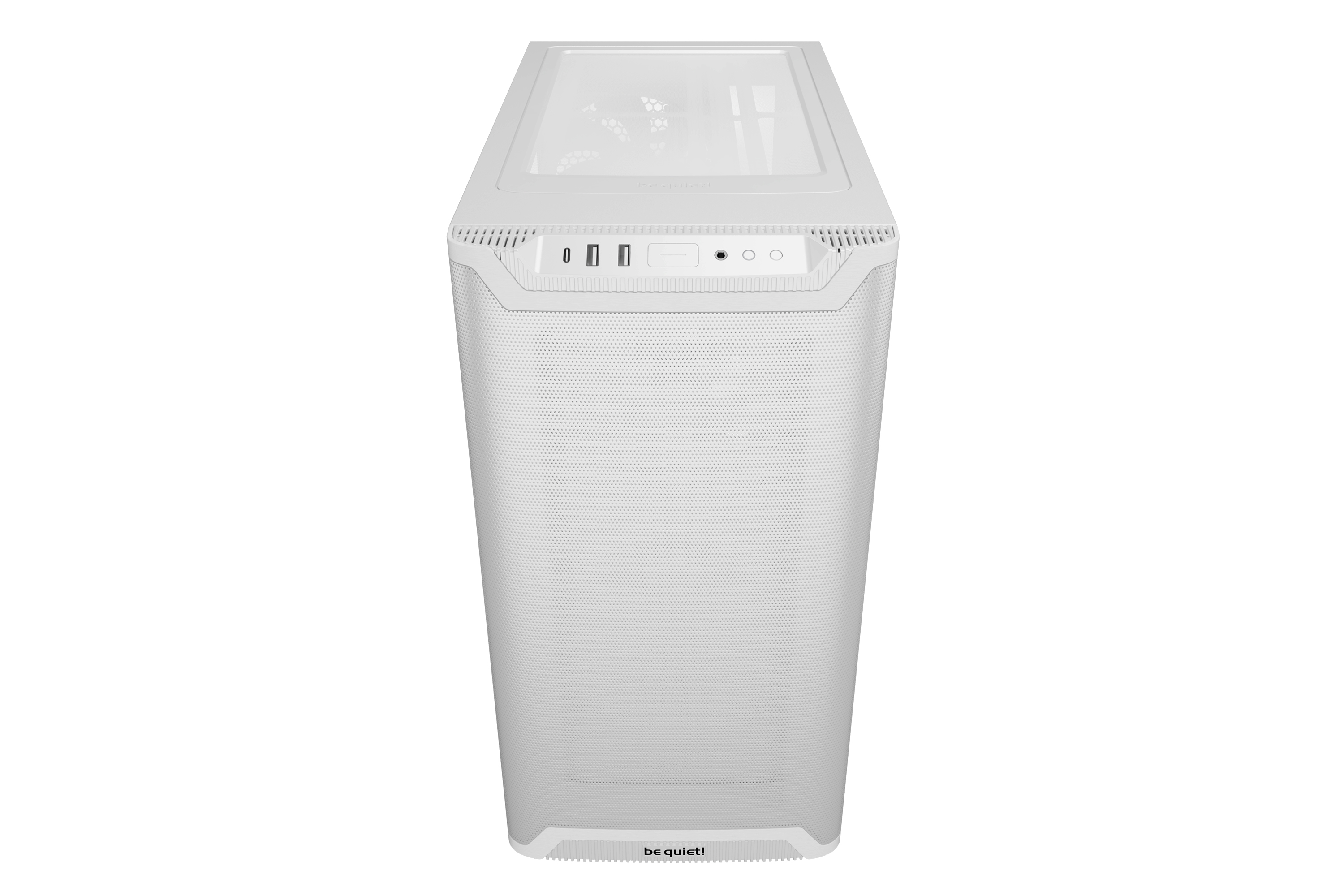

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -
Pre-installed fans
Fan at top -
Fan at front 3x Light Wings LX 120mm PWM
Fan at side -
Fan at rear 1x Light Wings LX 140mm PWM
Fan at bottom -
Dimensions (L x W x H), (mm) Front: 120 x 25 x 120 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1600 / 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 51.5 / 87.5 | 56.0 / 95.0
Air Pressure at 100% PWM / 12V (mm H2O) 1.34 / 0.90
Noise level at 100% PWM / 12V (dB(A)) 25.5 / 22.9
Voltage range (V DC) 5 - 13.2
Input power (W) 3.8 / 3.6
Input current (A) 0.10 / 0.09
Connector 4-pin PWM
Lifespan (h / 25°C) 60,000
Fan controller -
