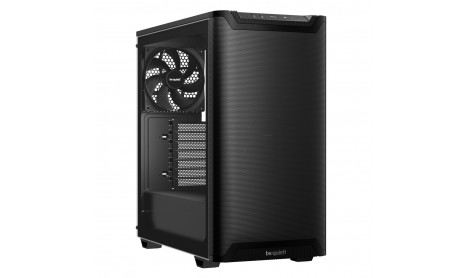

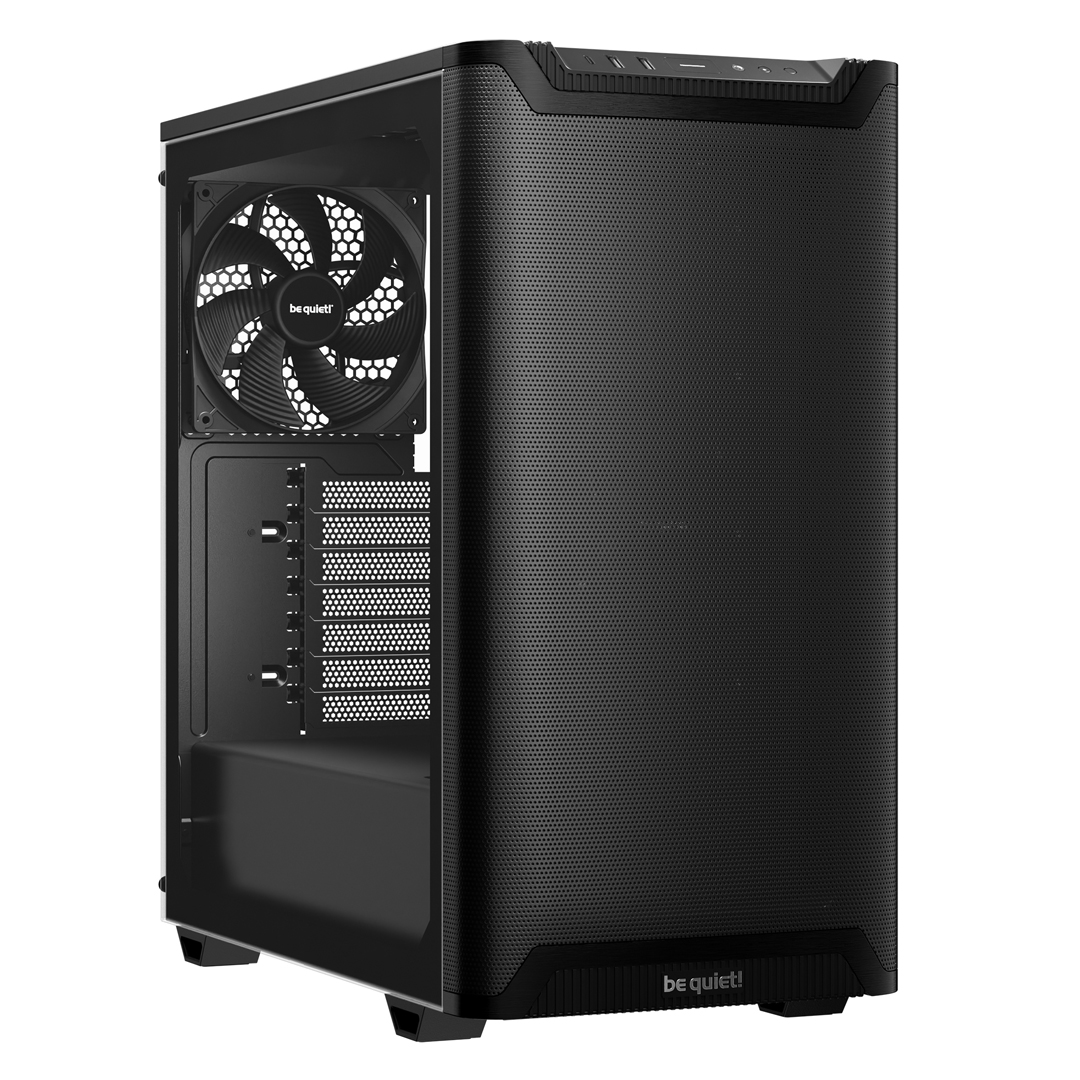

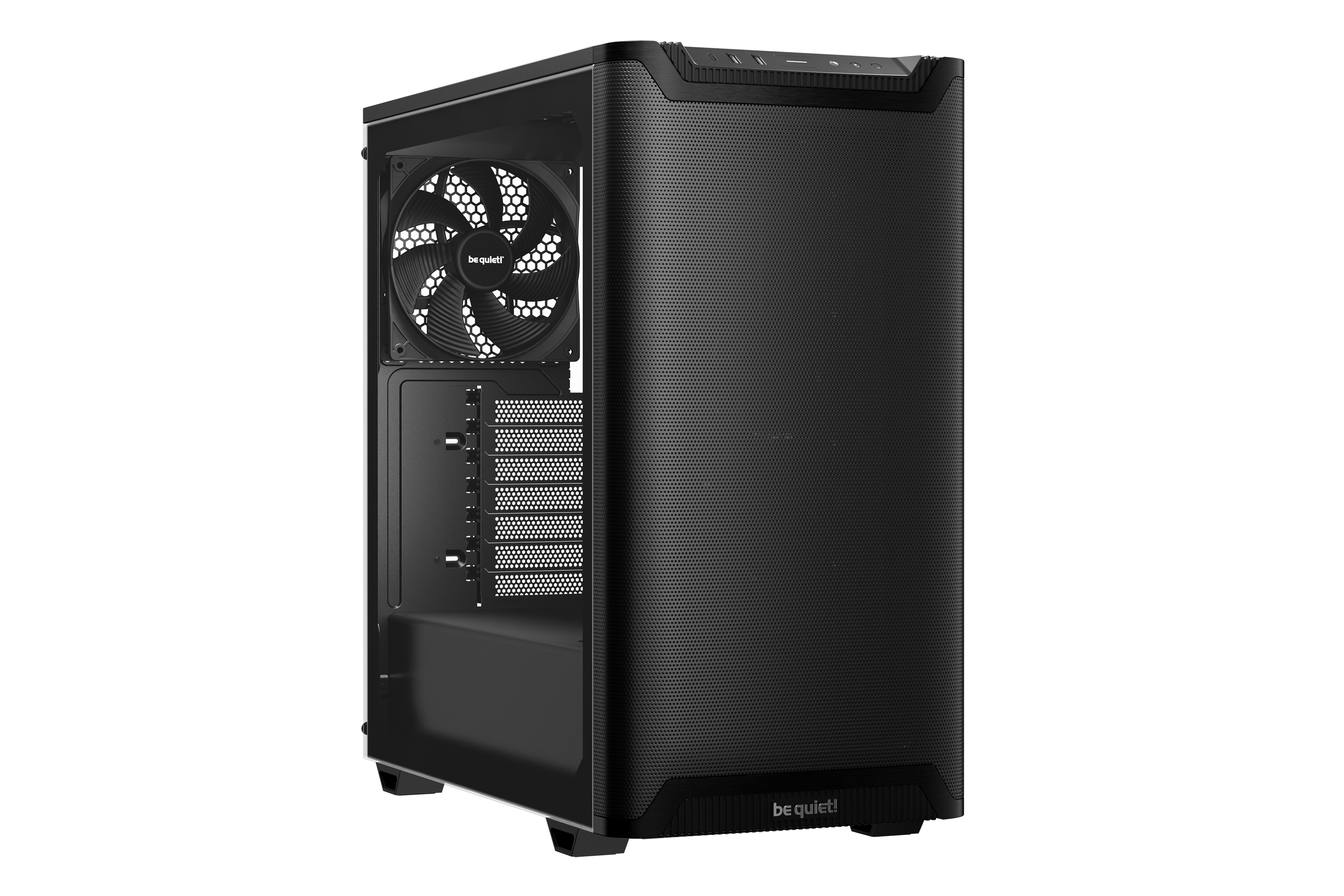

BE QUIET! PURE BASE 501 AIRFLOW WINDOW MIDI-TOWER - BLACK
- Product Code: BQ50BK-23443
- Availability: In Stock
-
$0
General data
Model Pure Base 501 Airflow Window Black
Color option Black
Motherboard compatibility ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm) 450 x 231 x 449
Case size incl. stands (L x W x H), (mm) 450 x 231 x 463
Volume (l) 39.2
PSU form factor ATX PS/2
Net weight (kg) 7.2
Expansion slots 7

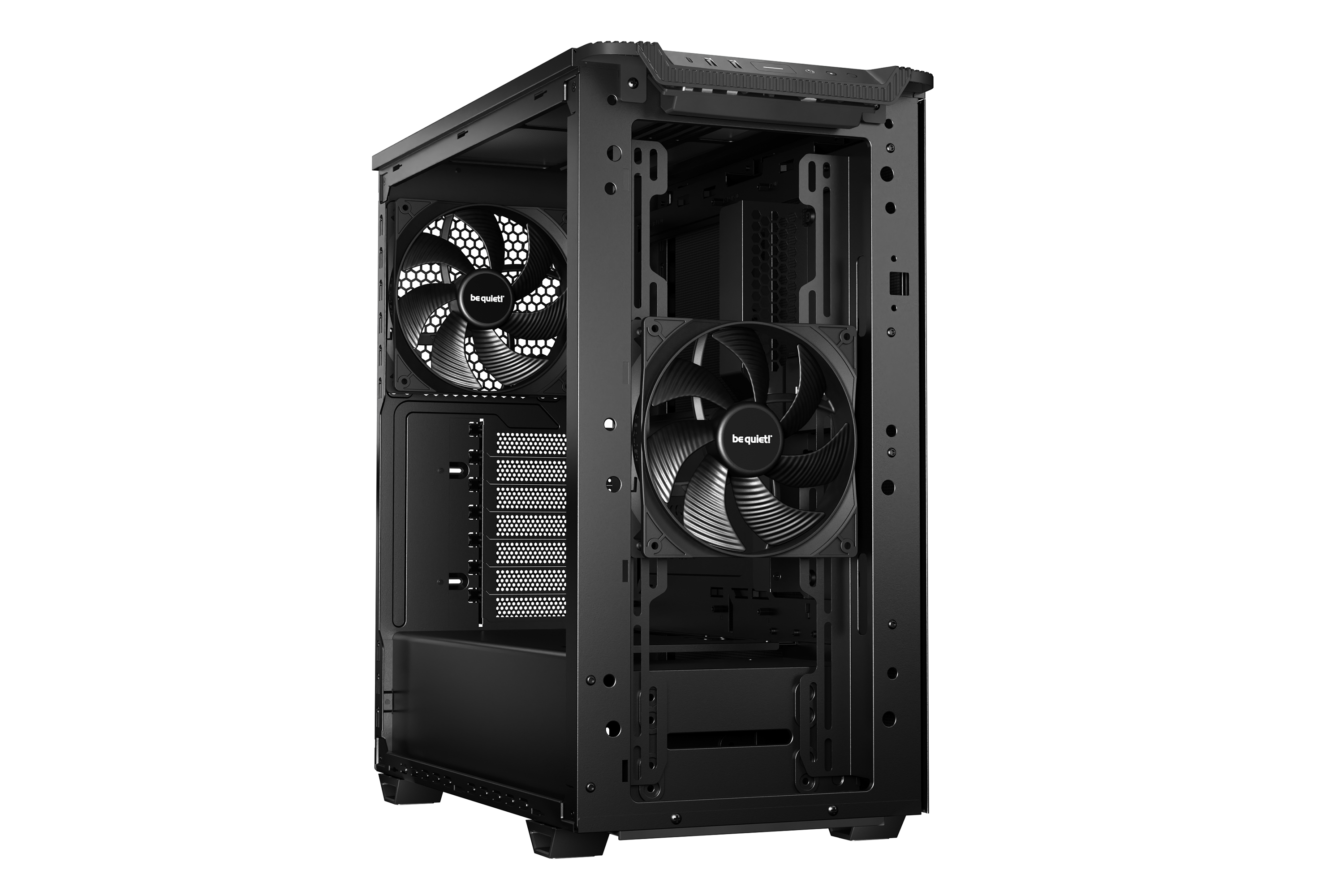

Pre-installed fans
Fan at top -
Fan at front 1x Pure Wings 3 140mm PWM
Fan at side -
Fan at rear 1x Pure Wings 3 140mm PWM
Fan at bottom -
Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96
Noise level at 100% PWM / 12V (dB(A)) 21.9
Voltage range (V DC) 5 - 13.2
Input power (W) 3.6
Input current (A) 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 80,000
Fan controller -
Maximum fan installation
Maximum fans 6
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) -
PSU shroud -
Optional radiator installation
Top (mm) 120 / 240
Front (mm) 120 / 140 / 240 / 280 / 360
Side (mm) -
Rear (mm) 120 / 140
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 180
Maximum dimensions incl. bottom fan (mm) 180
Material
Top cover Steel
Front panel ABS
Side panel Steel
Side panel window Glass
Stands ABS

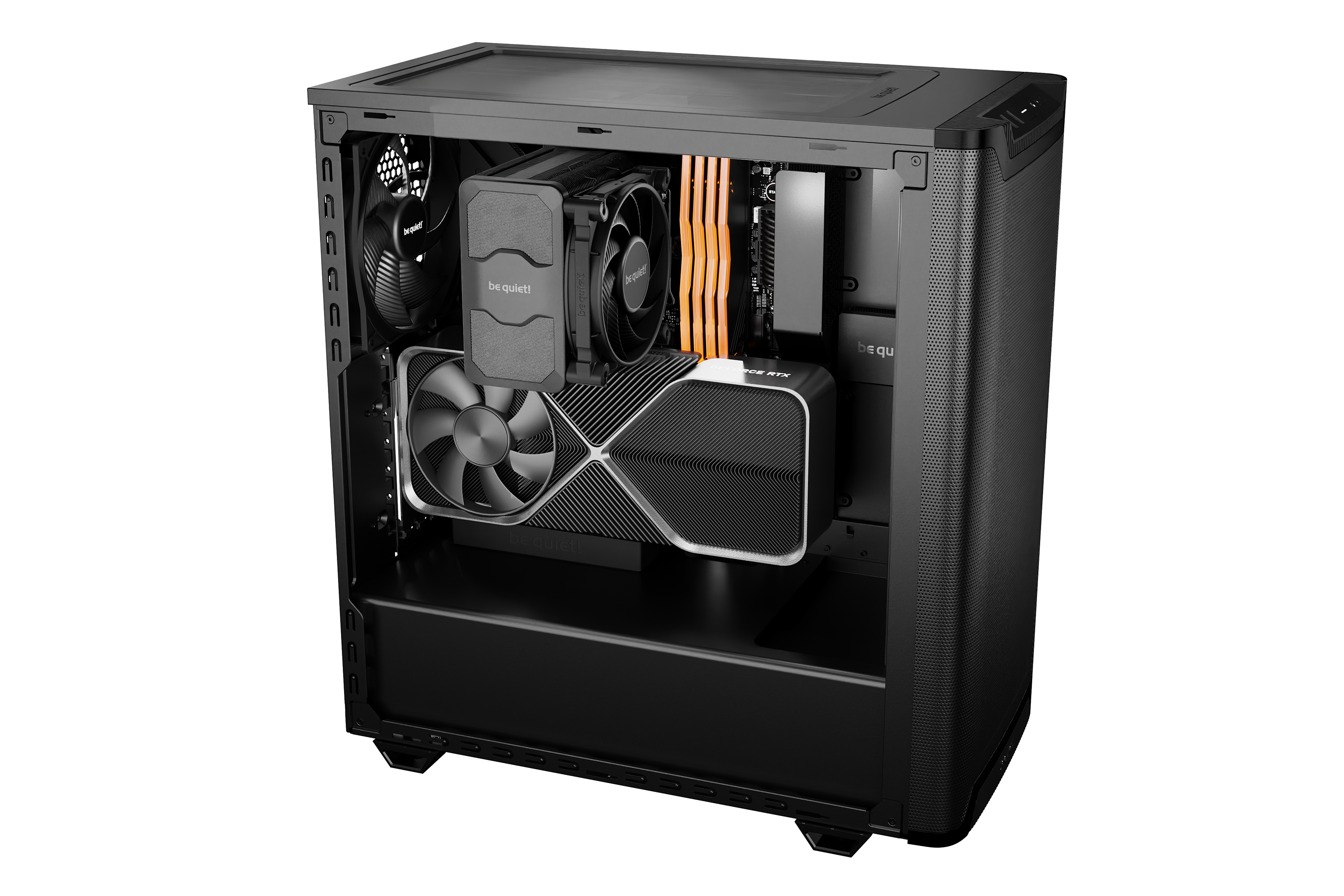

Graphics card
HDD cage (in height of graphics card) installed (mm) 368
HDD cage (in height of graphics card) removed (mm) 368
Maximum PCIe slots with vertical graphics card (pcs.) 5
Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 2
3.5 slots (max.) 2
2.5 slots (scope of delivery) 5
2.5 slots (max.) 5
Cooling
Max.construction height of CPU cooler unit (mm) 178
Airflow channel -

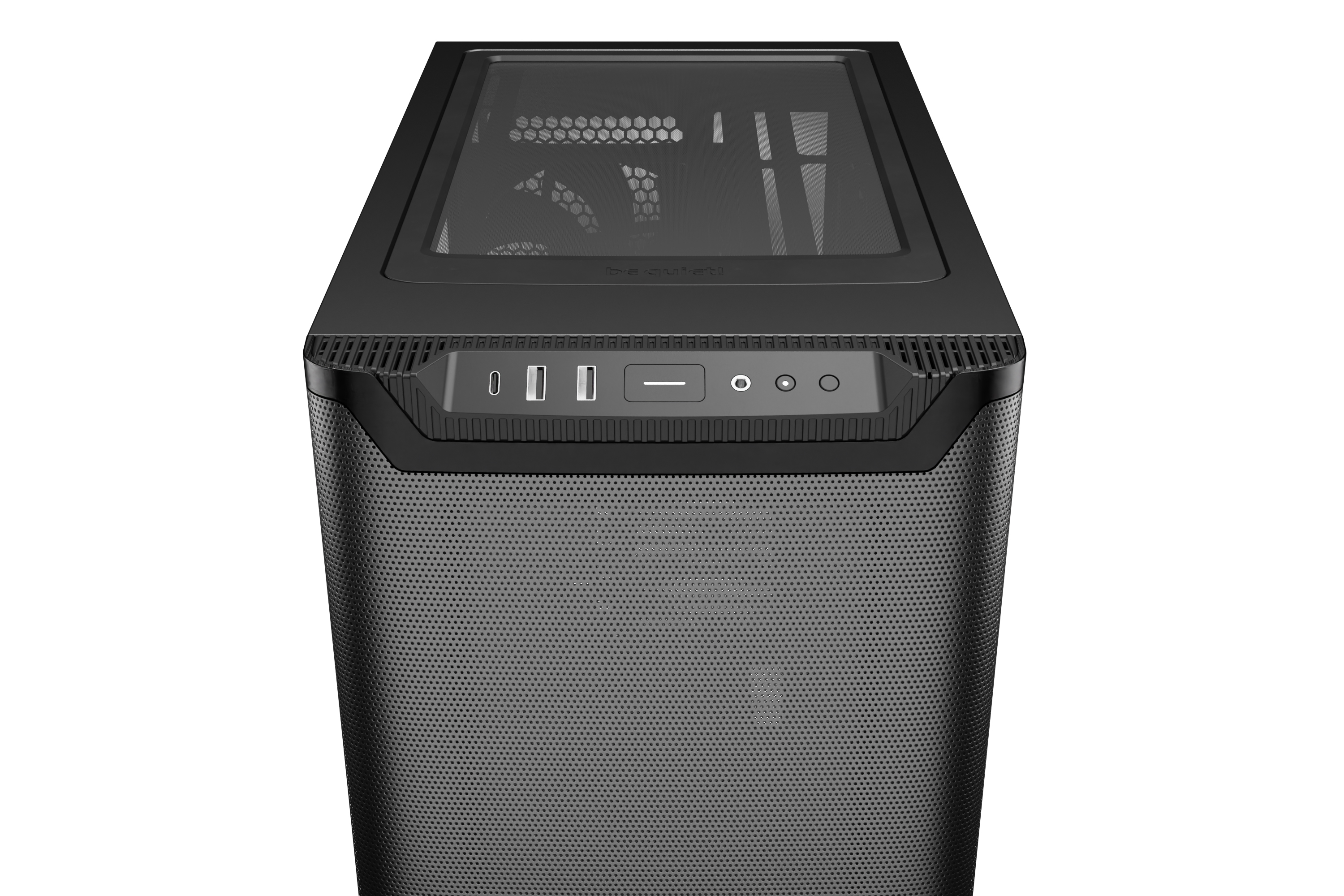

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -
Insulation and damping
Top panel insulation mats -
Front panel insulation mats -
Side panel insulation mats ✓
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray ✓
Logistics data and RRP
Article number BGW74
EAN code 4260052191828
Dimensions, package (L x W x H), (mm) 518 x 292 x 503
Gross weight, package (kg) 8.4
Pieces per packaging unit 1
RRP (€) 104.90
