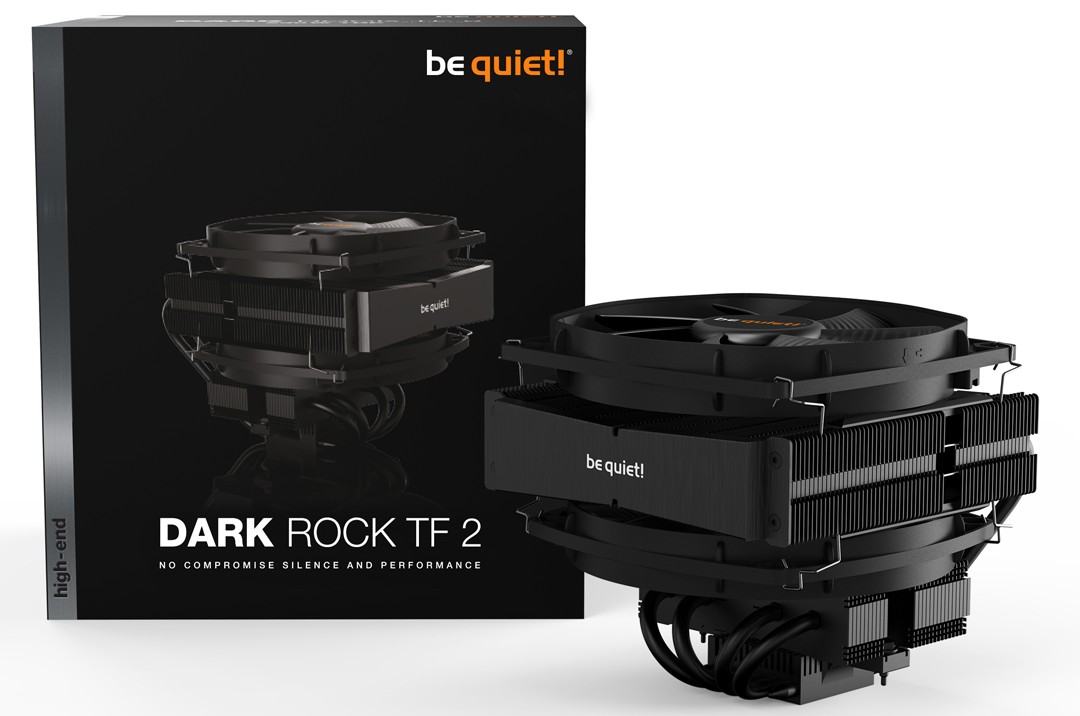

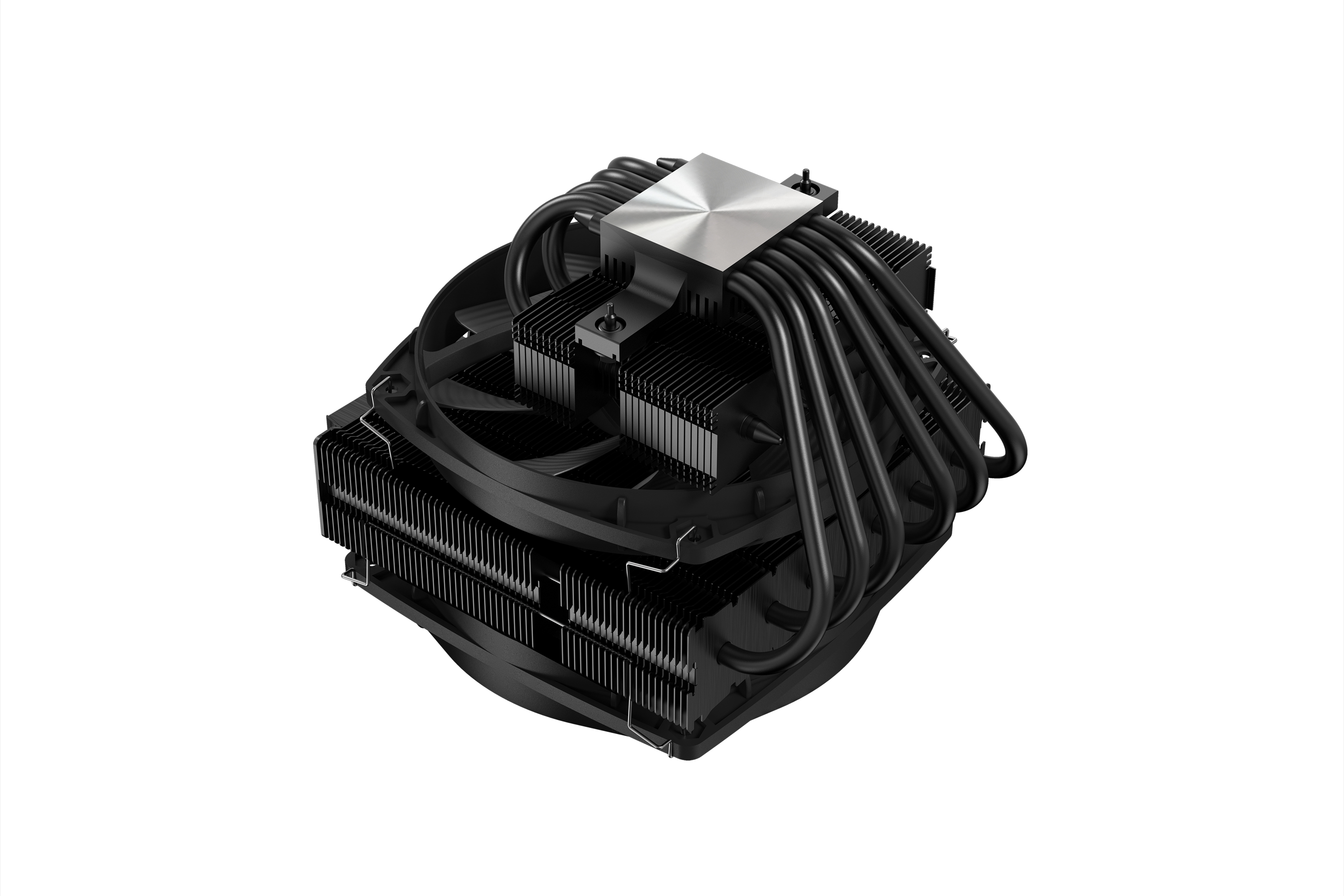

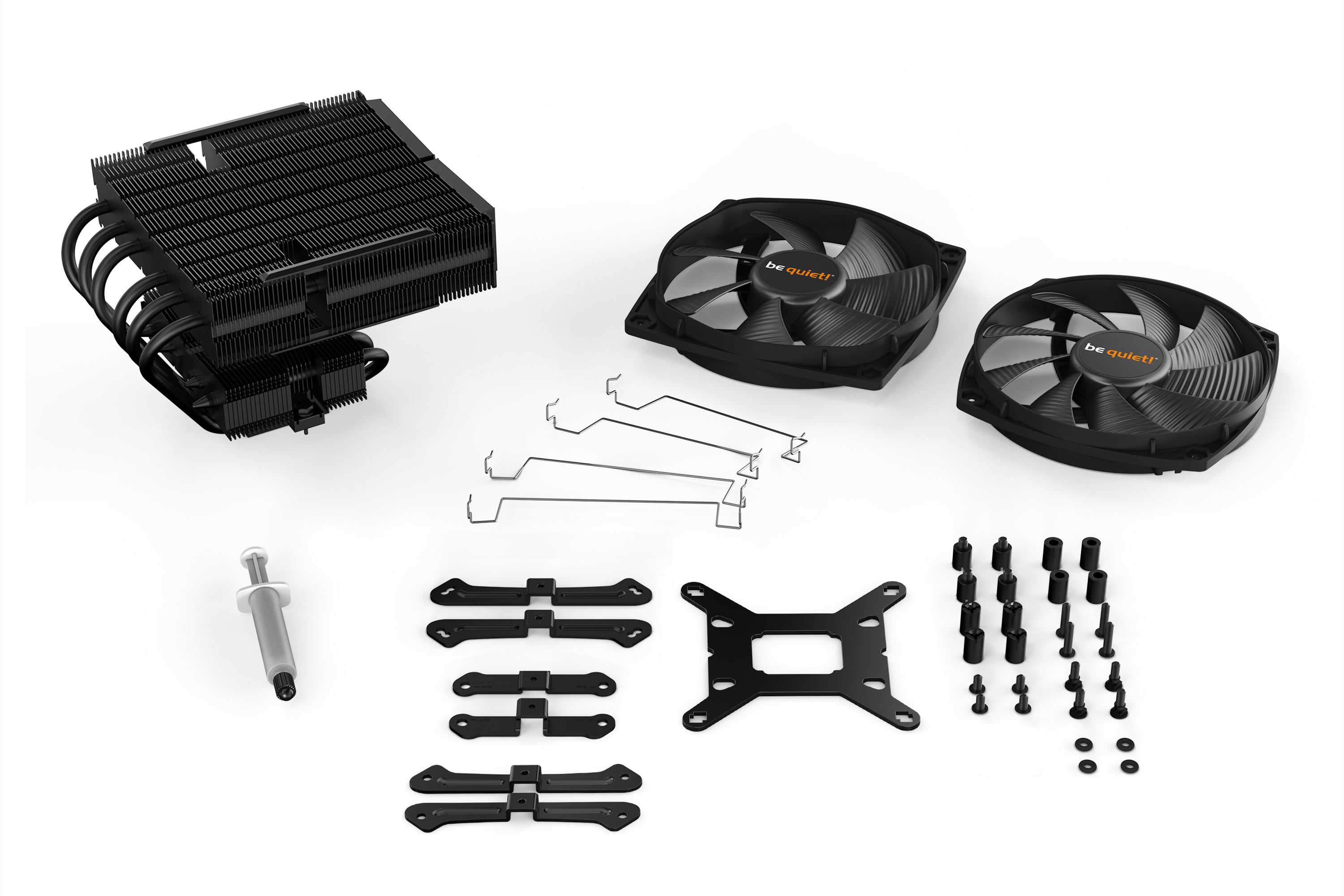

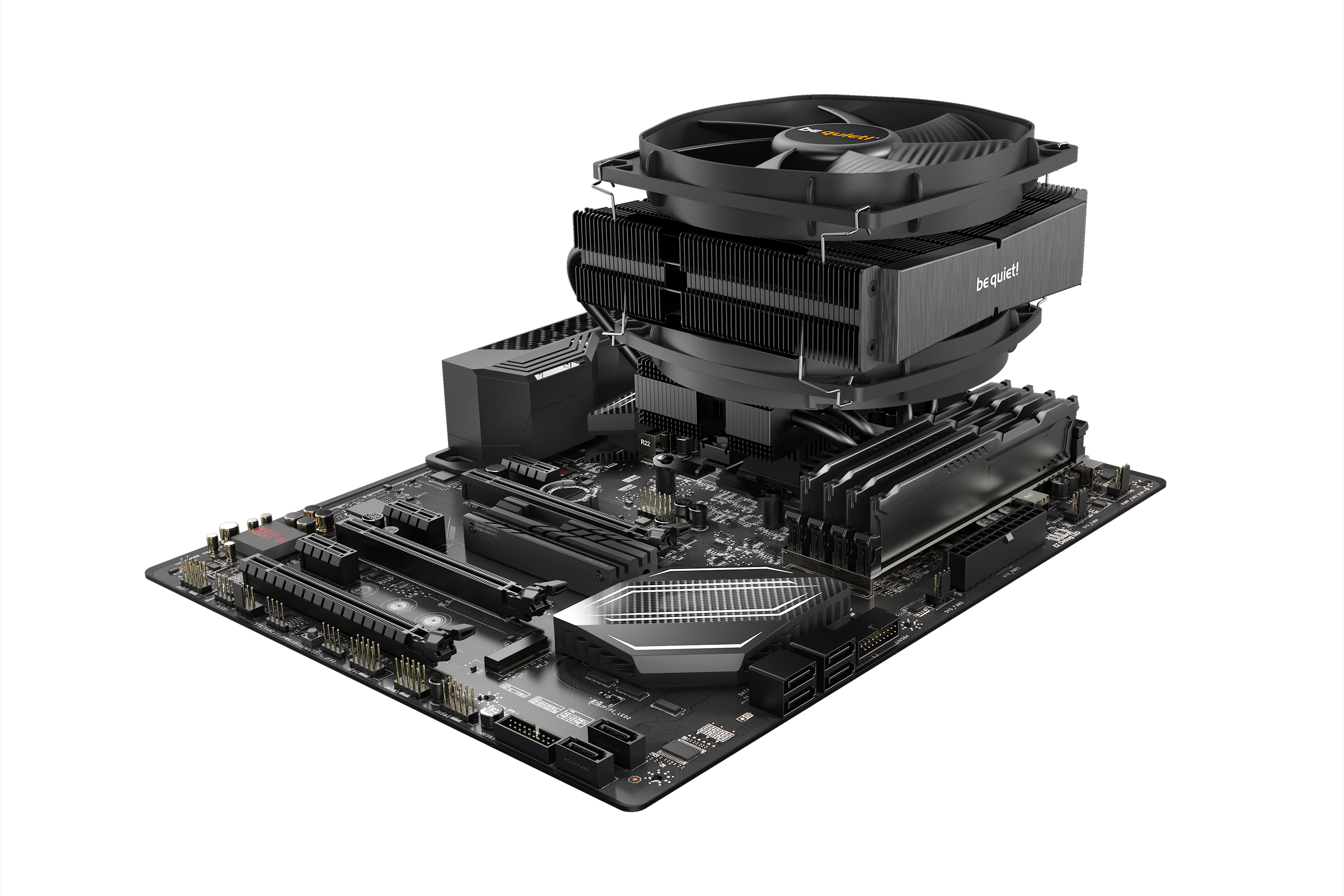

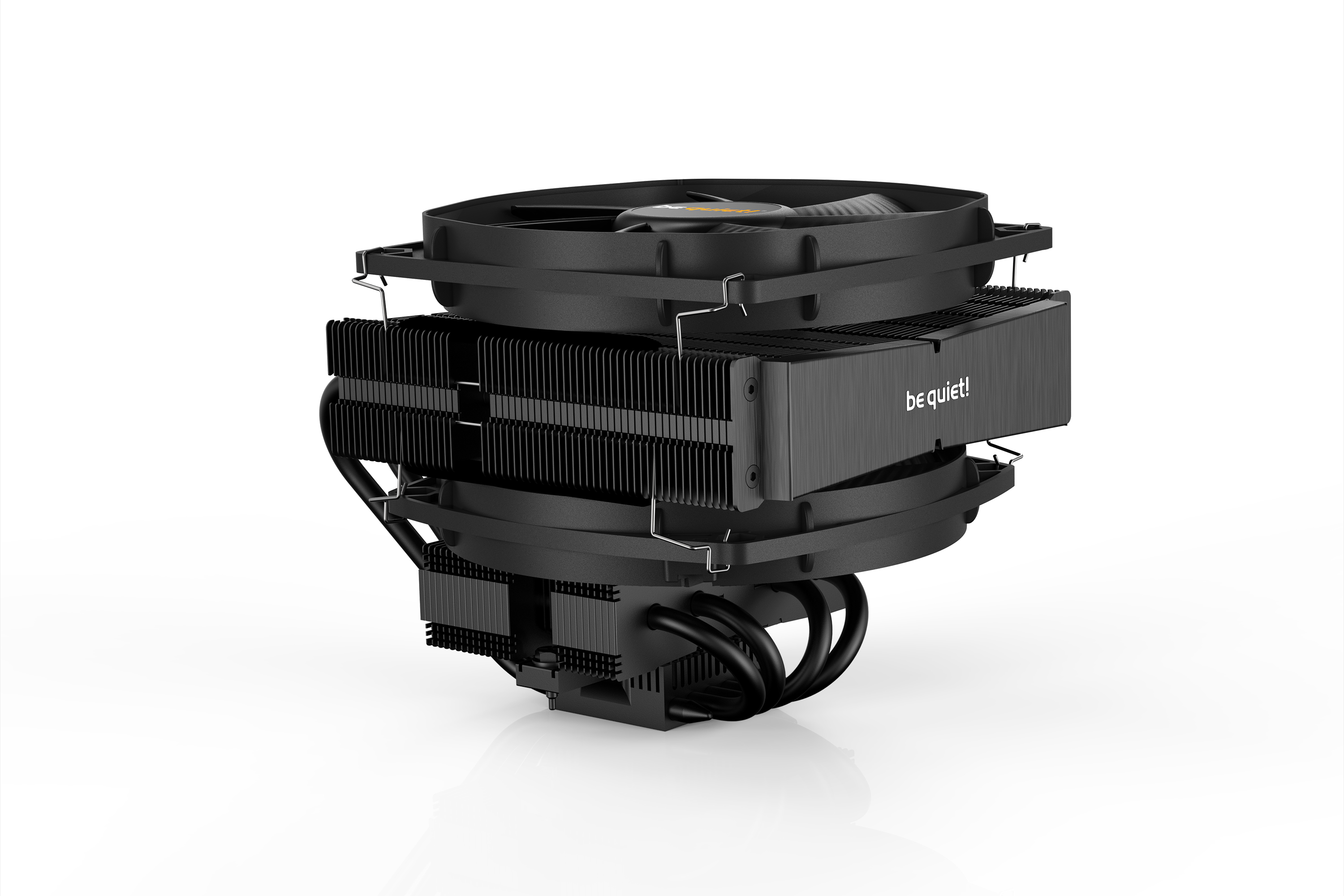

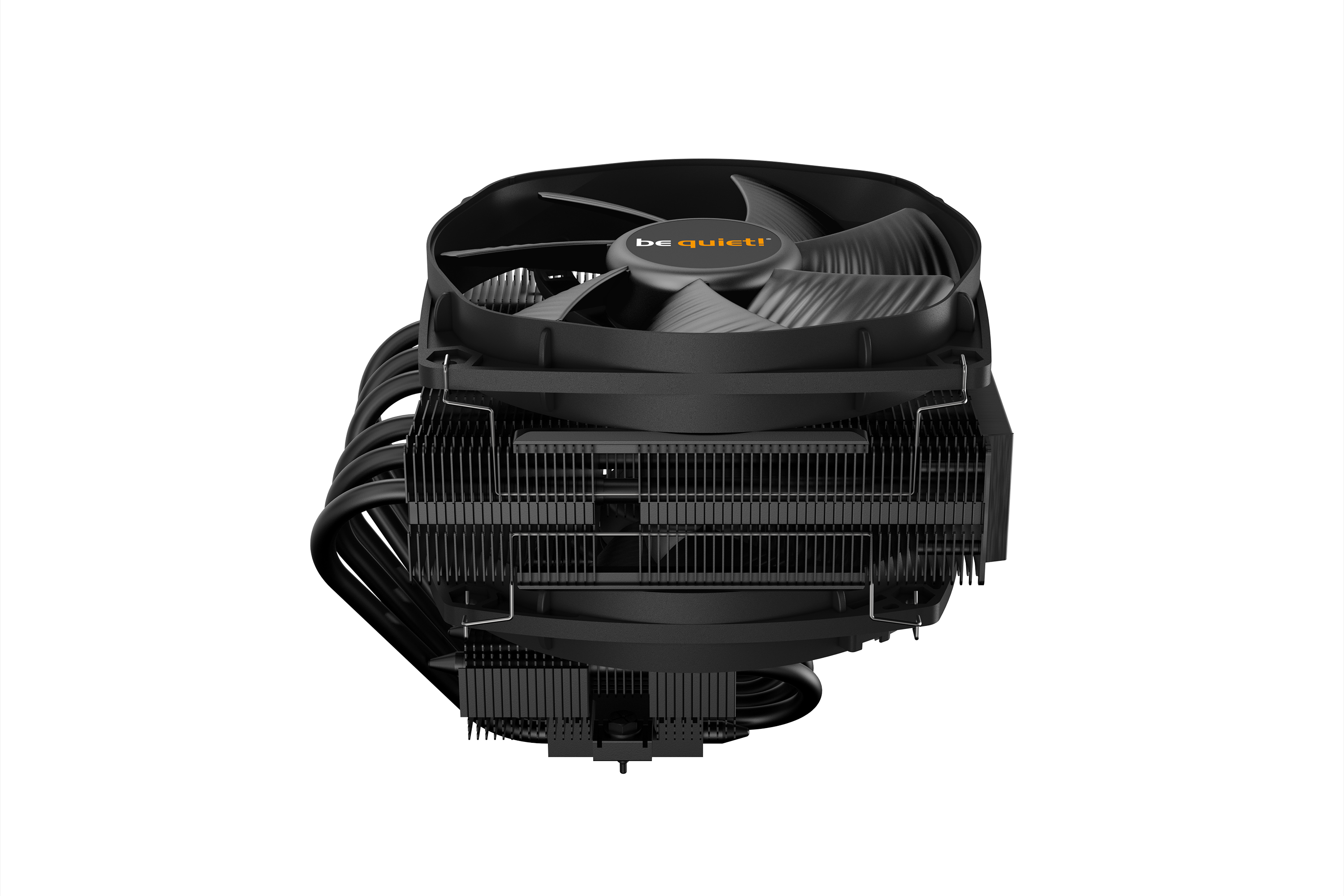

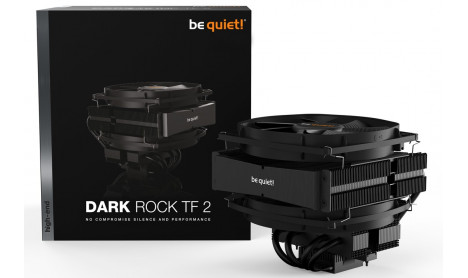

BE QUIET! DARK ROCK TF 2 CPU AIR COOLER
- Product Code: BQDRTF2-634545
- Availability: In Stock
-
$0
General data
Model Dark Rock TF 2
TDP (W) 230
Color option Black
Overall dimensions without mounting material (L x W x H), (mm) 163 x 140 x 107
Total weight (kg) 0.95
Socket compatibility Intel 1851 / 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm) 11.1 / 19.7 / 27.1
Number of fans 2
Lighting connector -
Heatsink specifications
Dimensions (L x W x H), (mm) 163 x 140 x 134
Fin material Aluminum
Surface treatment Ceramic coating
Base material Copper
CPU contact surface CNC machined
Heatpipe number / Diameter (mm) 6 / 6
Decoupled fan mounting ✓
Fan specifications
Fan model Silent Wings 3 135mm PWM / Silent Wings 135mm PWM
Fan dimensions (mm) 135 x 135 x 25 / 135 x 135 x 22
Speed @ 100% PWM (rpm) 1300 / 1400
Airflow at 100% PWM / 12V (CFM / m3/h) 60.0 / 101.9 | 86.3 / 146.6
Air Pressure at 100% PWM / 12V (mm H2O) 1.77 / 2.30
Bearing technology Fluid Dynamic Bearing
Motor technology 6-pole fan motor
Rated Voltage (V) 12
Input current (A) 0.40 / 0.40
Safety current (A) 0.40 / 0.40
Input power (W) 2.4 / 4.8
Connector 4-pin PWM
Lighting connector -
Cable length (mm) 220
Lifespan (h / 25°C) 300,000
Y-Cable -
Logistics data and RRP
Article number BK031
EAN code 4260052188705
Dimensions, package (L x W x H), (mm) 210 x 190 x 230
Gross weight, package (kg) 1.6
Pieces per packaging unit 12
Dimensions, shipping box (L x W x H), (mm) 600 x 440 x 470
Gross weight, shipping box (kg) 21.0
RRP (€) 94.90
