IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
External antenna x 4
2.4GHz 2x2
5GHz 2x2
Dual-core (4 VPE)
128 MB Flash
256 MB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
2.4G Hz / 5 GHz
Access Point, Media Bridge, Repeater, Router
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
WPS Button, Reset Button, Power Switch
Power x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1
AC Input : 100V~240V(50~60Hz)
DC Output : 12 V with max. 1.5A current

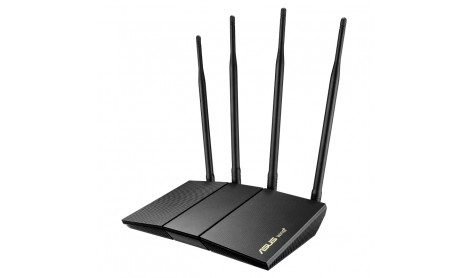

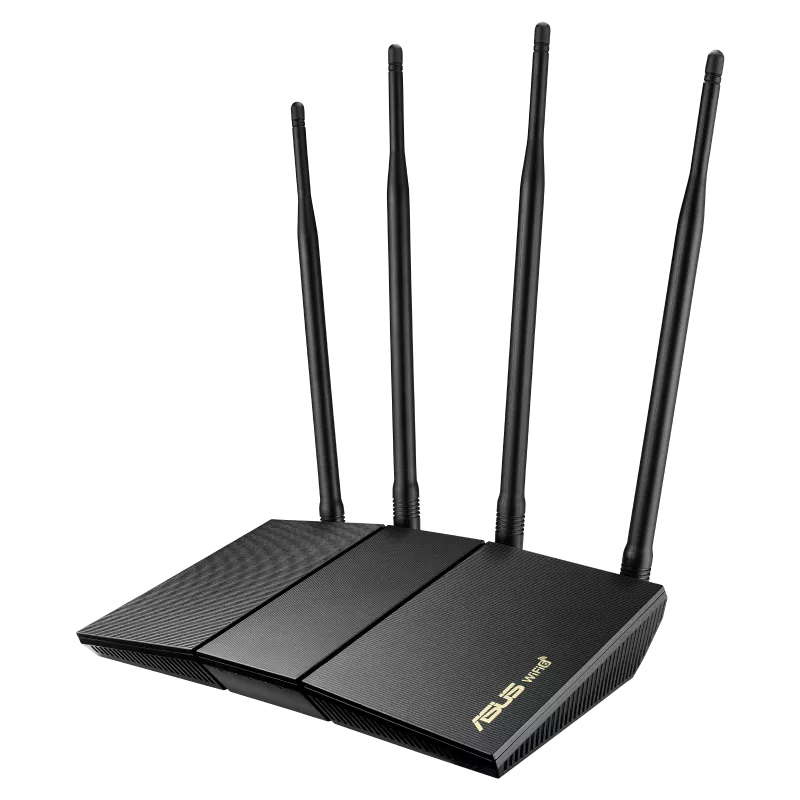

RT-AX1800HP
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
390g / 0.86lb
230 x 134 x 56 mm
9.06 x 5.28 x 2.2 inch
AiMesh
• Primary AiMesh Router
• AiMesh Node
Customized Internet Schedule
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal
WPS
Let's Encrypt
SSH
Firewall
• Malicious Site Blocking
• Infected Device Prevention and Blocking
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port forwarding
Port triggering
DMZ
DDNS
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
