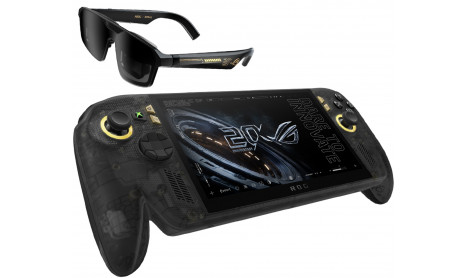

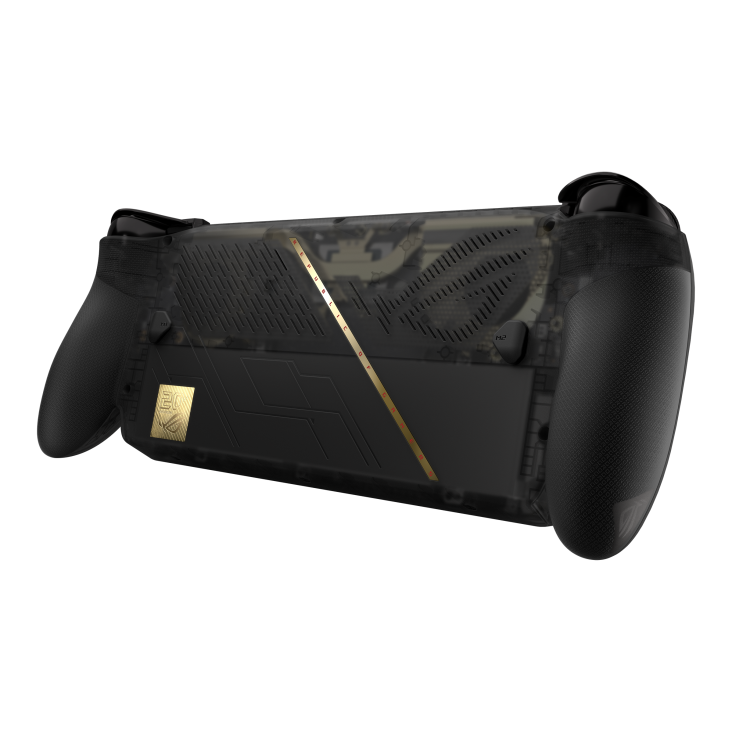

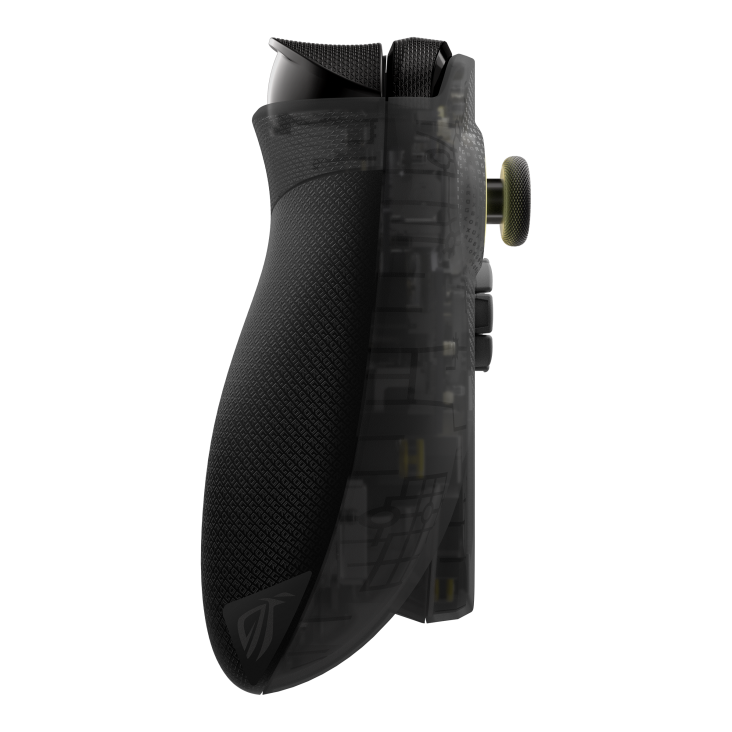

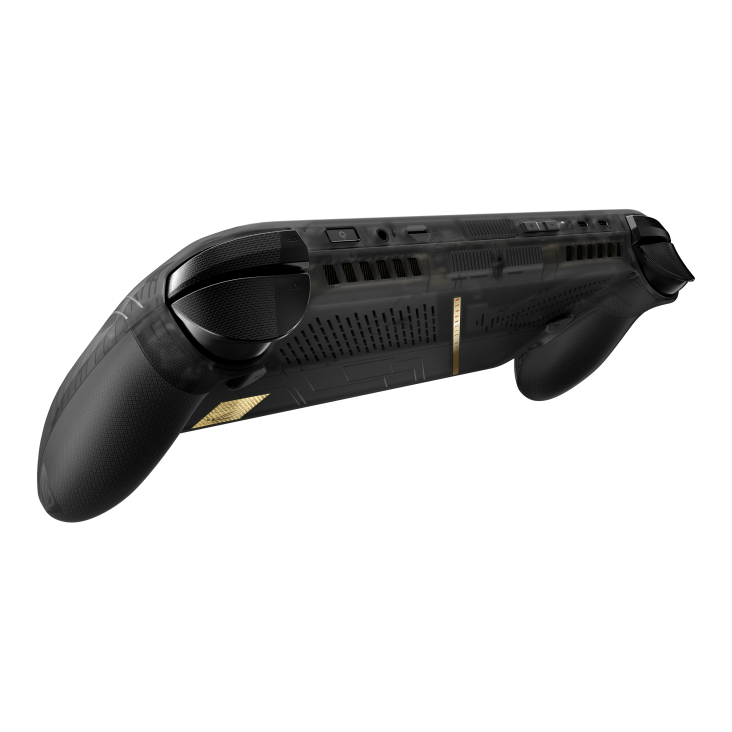

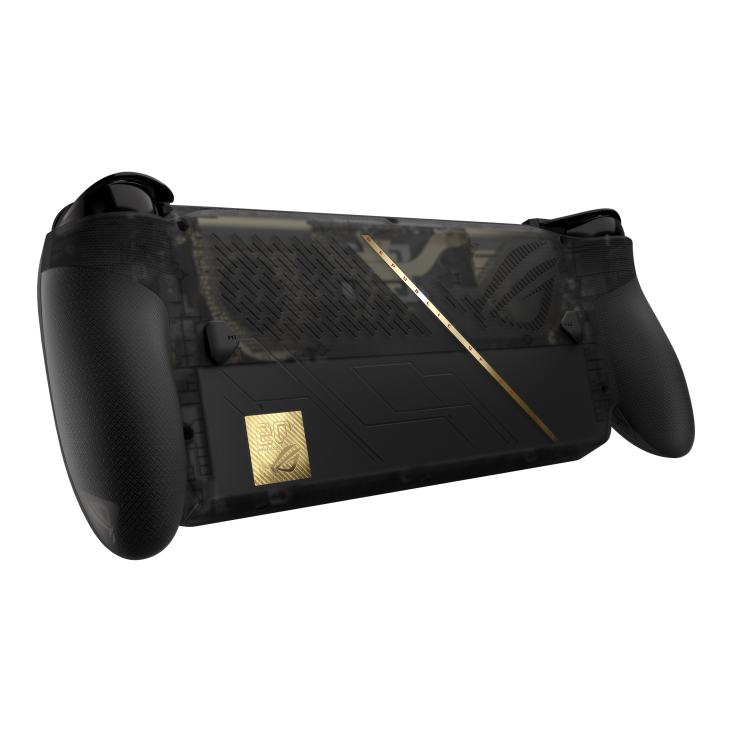

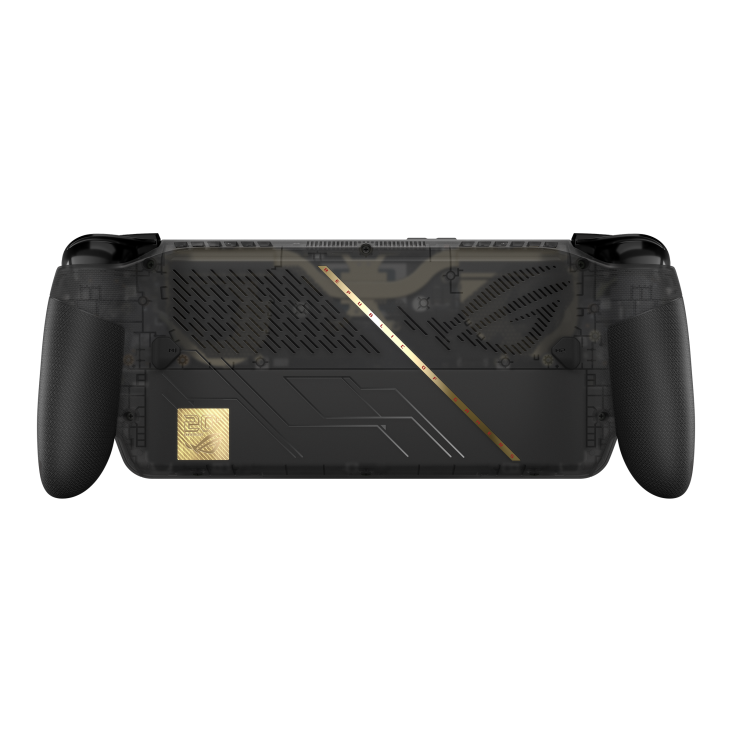

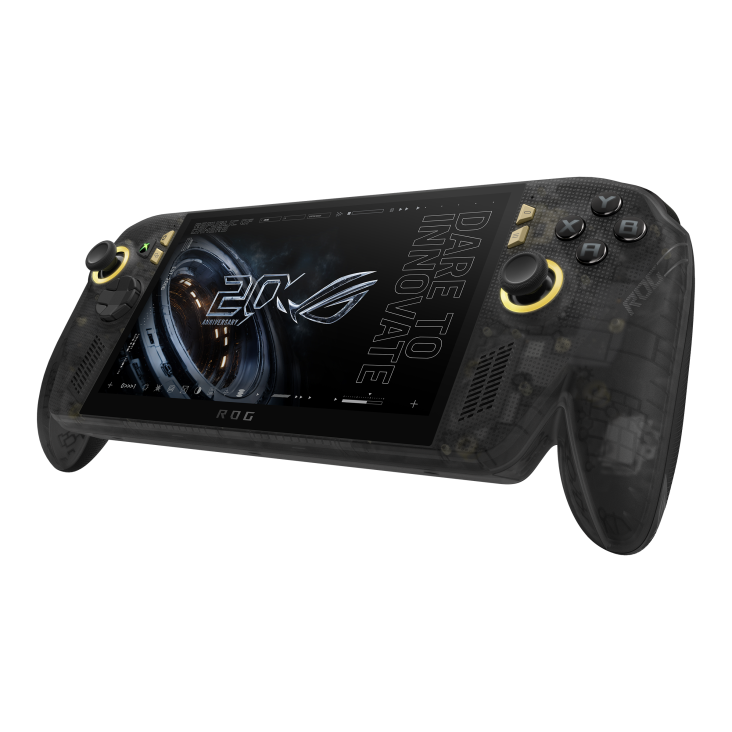

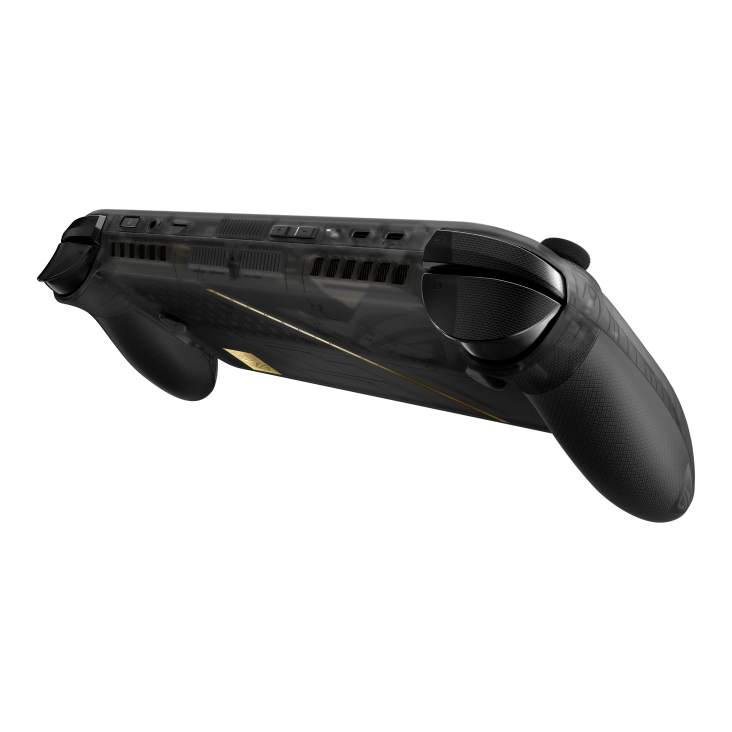

ASUS ROG XBOX ALLY X20 BUNDLE RC74XA GAMING HANDHELD PC 2026
- Product Code: XBALX20RC74XA
- Availability: In Stock
-
$0
Operating System
Windows 11 Home
Processor
CPU:AMD Ryzen™ AI Z2 Extreme Processor 2.0GHz (24MB Cache, up to 5.0GHz, 8 cores, 16 Threads); AMD XDNA™ NPU up to 50TOPS
GPU:AMD Radeon™ Graphics

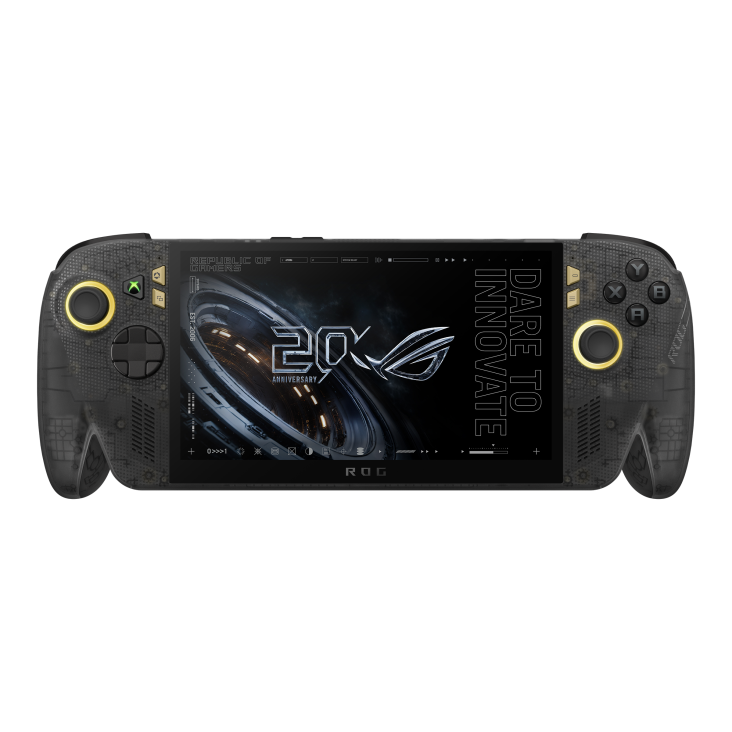

Display
7.4-inch
FHD (1920 x 1080) 16:9
OLED
Anti-reflection(AR) display
DCI-P3:100%
Gorilla® Glass Victus™
Gorilla® Glass DXC
Touch Screen (10-point multi-touch)
Refresh Rate:120Hz
Brightness:600 nits (SDR)/1400 nits (HDR)
Pantone Validated
Support Dolby Vision HDR:Yes
FreeSync Premium Pro
Memory
24GB LPDDR5X on board
Support dual channel memory
Storage
1TB PCIe® 4.0 NVMe™ M.2 SSD (2280)

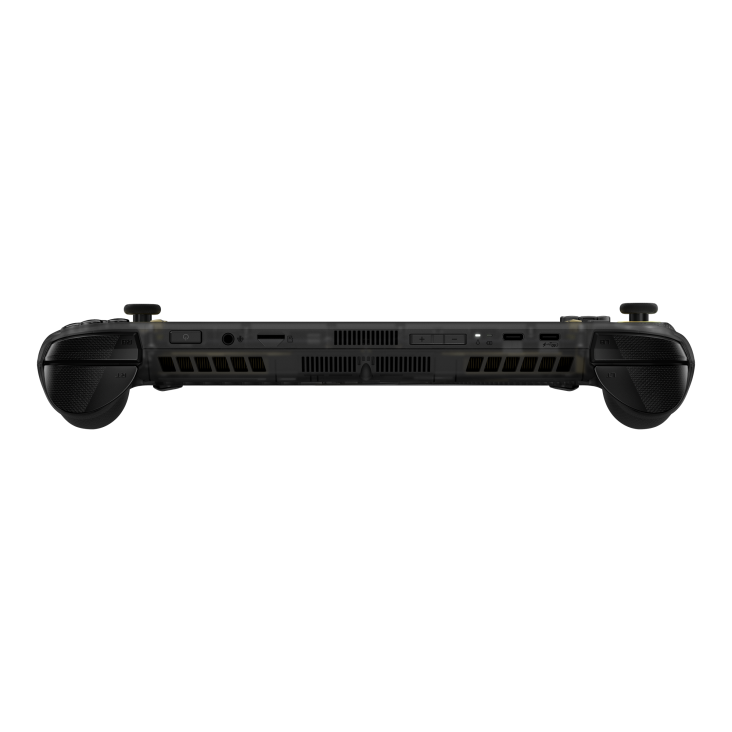

I/O Ports
1x 3.5mm Combo Audio Jack
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
1x Type C support USB 4 (Thunderbolt™ 4 compliance, DisplayPort™ 2.1 with Freesync support, Power Delivery 3.0)
1x UHS-I microSD Express SD7.1 card reader
Control and Input
View button
Menu button
L & R impulse triggers
L & R Hall Effect analog triggers
Command Center button
Action button
A B X Y buttons
2 x assignable grip buttons
Transforming D-pad
TMR Joysticks
Haptics: HD haptics
Gyro:6-Axis IMU
Audio
Smart Amp Technology
Hi-Res certification (for headphone)
Dolby Atmos
AI noise-canceling technology
Built-in array microphone
2-speaker system with Smart Amplifier Technology
Network and Communication
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 (*Bluetooth® version may change with OS version different.)
Battery
80WHrs, 4S1P, 4-cell Li-ion
Power Supply
TYPE-C, 68W AC Adapter, Output: 20V DC, 3.4A, 68W, Input: 100~240V AC 50/60Hz universal
*Whether a charger is included varies according to country, region and model. Please check with your local ASUS retailer for details.
Weight
756 g (1.67 lbs)
Dimensions (W x D x H)
30.0 x 12.1 x 2.75 ~ 5.13 cm (11.81" x 4.76" x 1.08" ~ 2.02")
Xbox Game Pass
Xbox Game Pass Premium_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Security
Microsoft Pluton security processor
Built-in Fingerprint Sensor

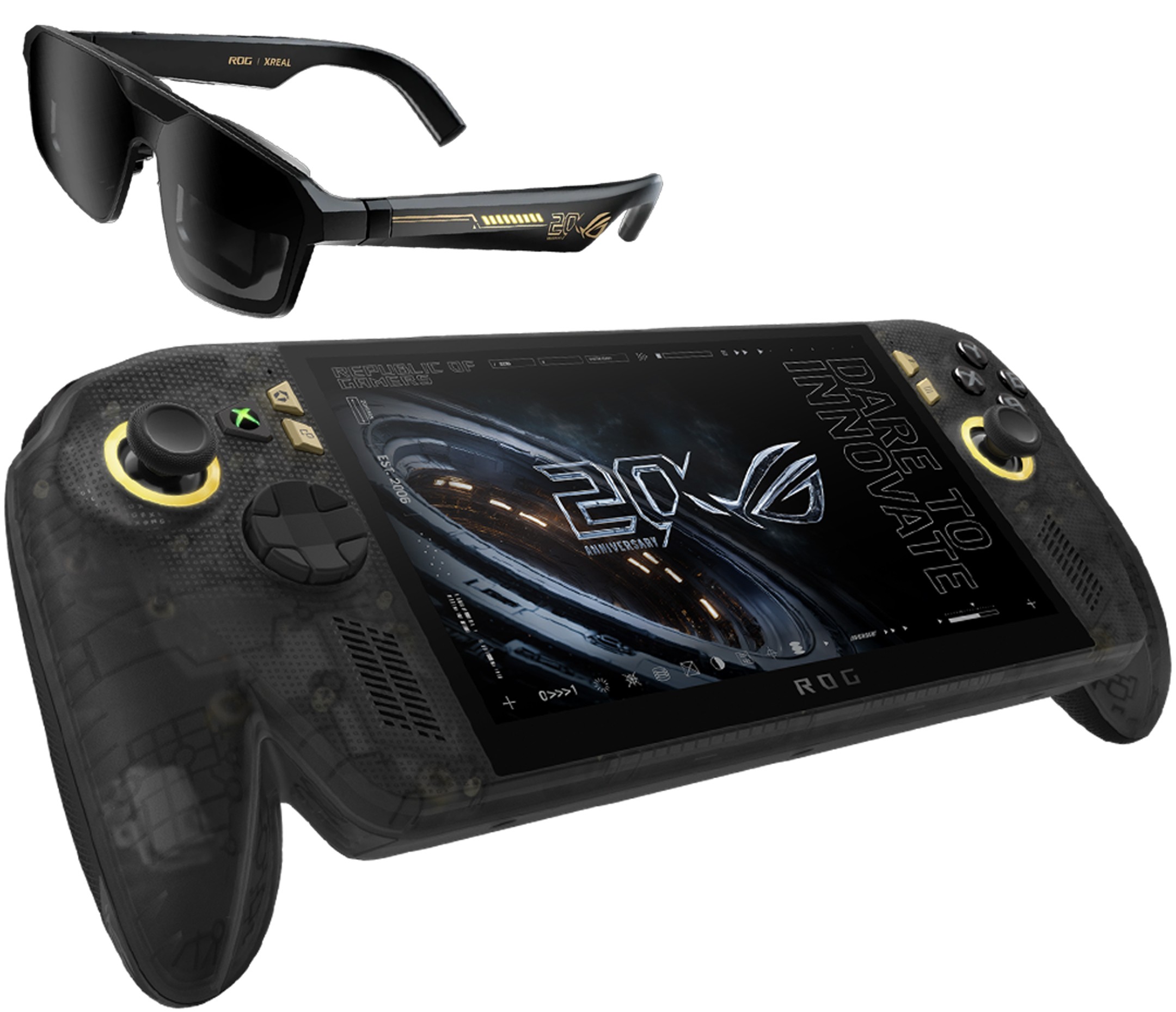

Included in the Box
ROG XREAL R1 Edition 20
More to be announced
