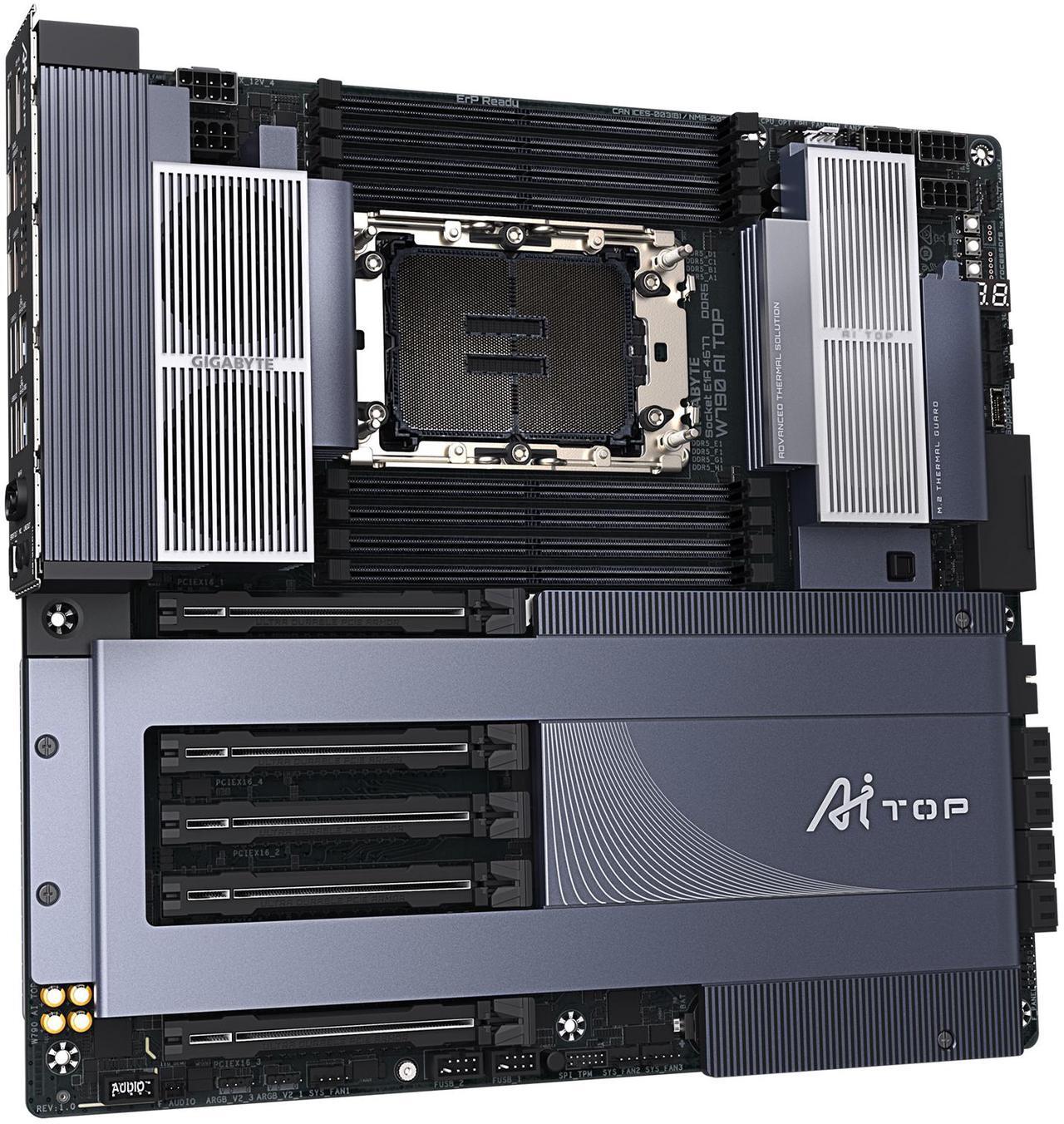

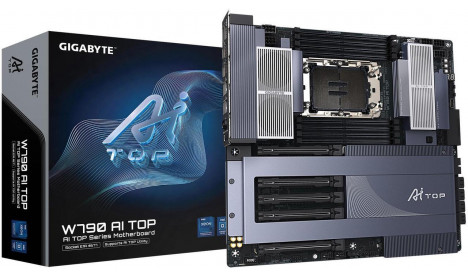

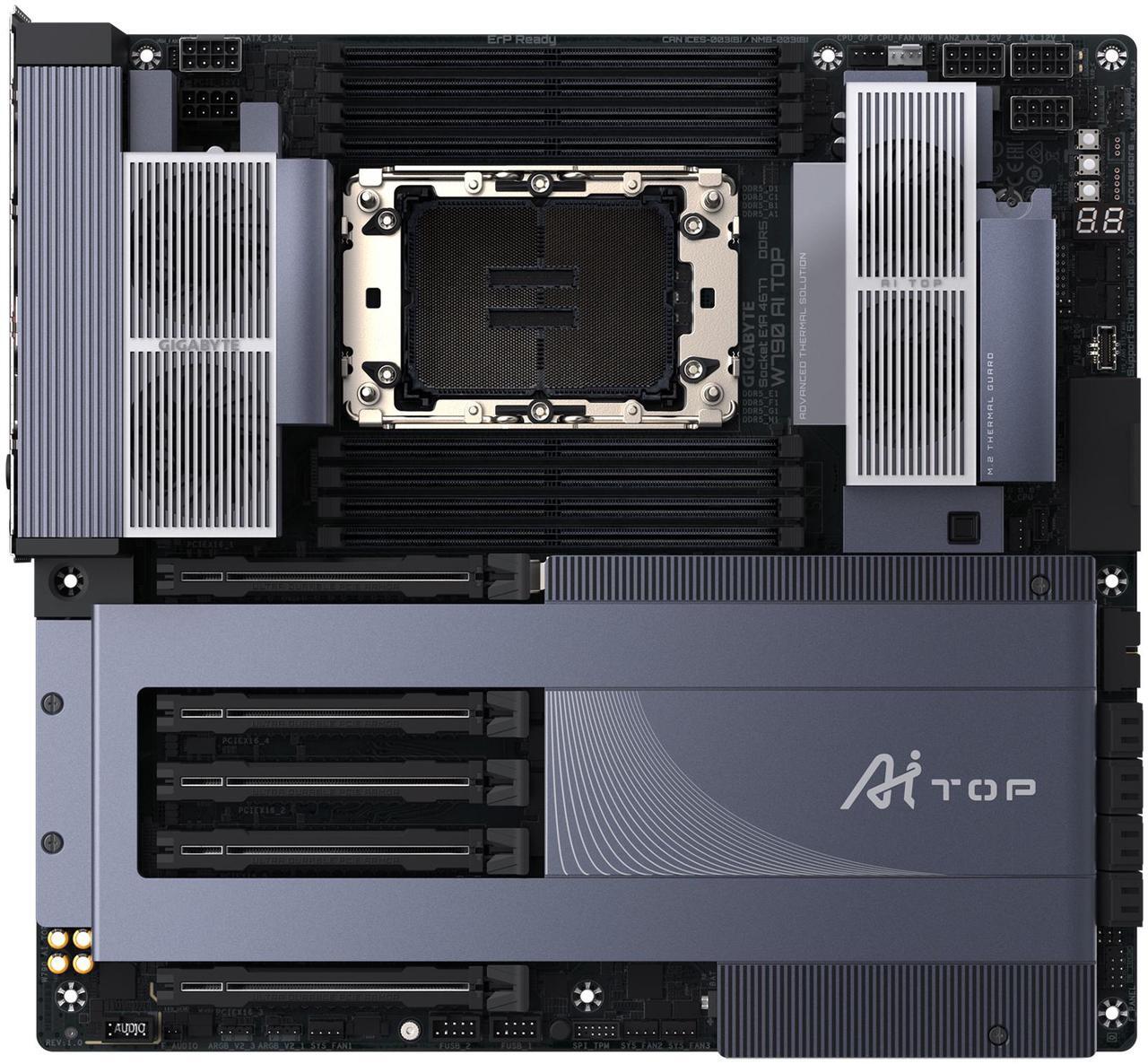

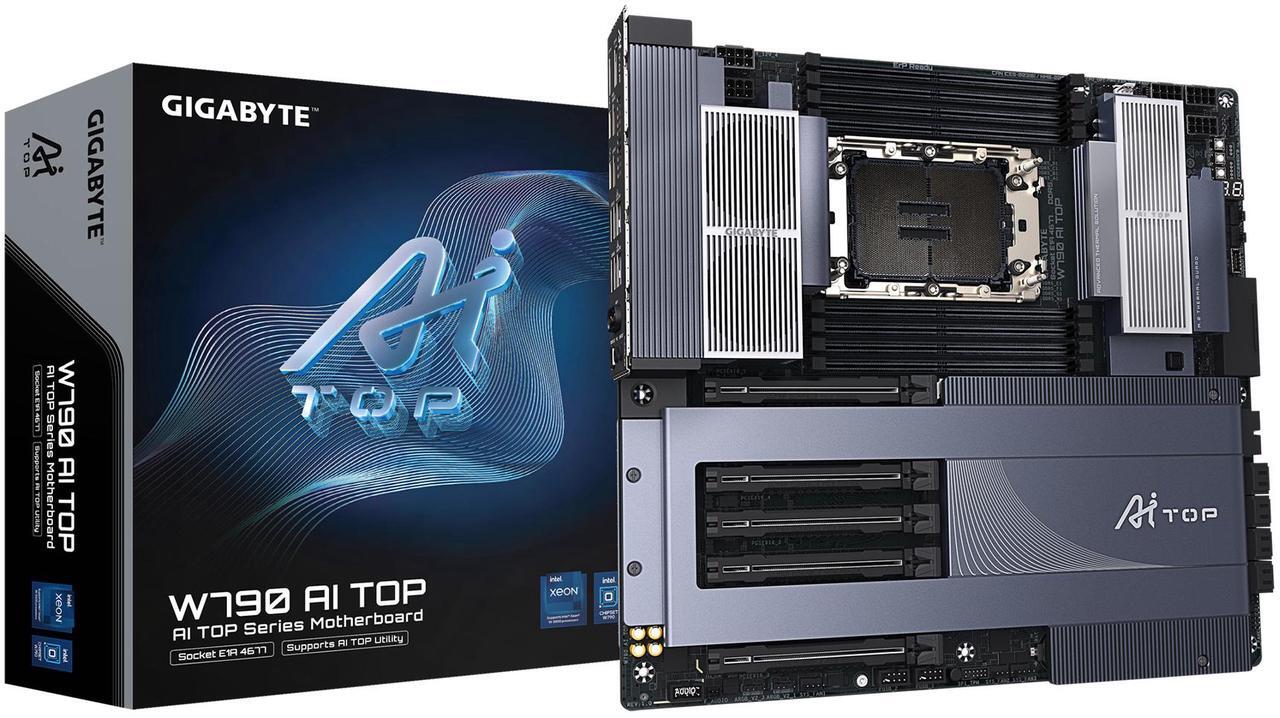

GIGABYTE W790 AI TOP WI-FI 7 WORKSTATION XEON-W

Product Code: GAW790AITOP
Availability: In Stock
$1,295

0 reviews / Write a review

Description

Model
Brand	GIGABYTE
Model	W790 AI TOP

Supported CPU
CPU Socket Type	LGA 4677
CPU Type	Xeon (LGA4677)

Chipsets
Chipset	Intel W790

Memory
Number of Memory Slots	8x288pin (DDR5)
Memory Standard	Support for 5600(O.C.) / 4800 MHz
Maximum Memory Supported	2TB
Channel Supported	Eight Channel
Memory Feature	Intel Xeon W-3500/W-3400 Series Processors support 8-Channel memory architecture Intel Xeon W-2500/W-2400 Series Processors support 4-Channel memory architecture * The DDR5_C1, DDR5_D1, DDR5_G1, and DDR5_H1 sockets become unavailable when an Intel Xeon W-2500/W-2400 series processor is used. Support for DDR5 ECC Registered memory modules and up to 2 TB of system memory - RDIMM-3DS memory supports up to 256 GB per DIMM - RDIMM memory supports up to 64 GB per DIMM

Expansion Slots
PCI Express 5.0 x16	5 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 * The PCIEX16_4 and PCIEX16_5 slots become unavailable when an Intel Xeon W-2500/W-2400 series processor is used. * The PCI Express x16 slots support only graphics cards or NVMe SSDs. For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

Storage Devices
Serial ATA (SATA)	8 x SATA 6Gb/s
M.2	CPU: - 4 x M.2 connectors (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU, M2C_CPU, M2D_CPU) * The M2C_CPU and M2D_CPU connectors become unavailable when an Intel Xeon W-2500/W-2400 series processor is used. Chipset: - 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2E_SB, M2F_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel X710-AT2
Max LAN Speed	10Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	BLUETOOTH 5.4

Rear Panel Ports

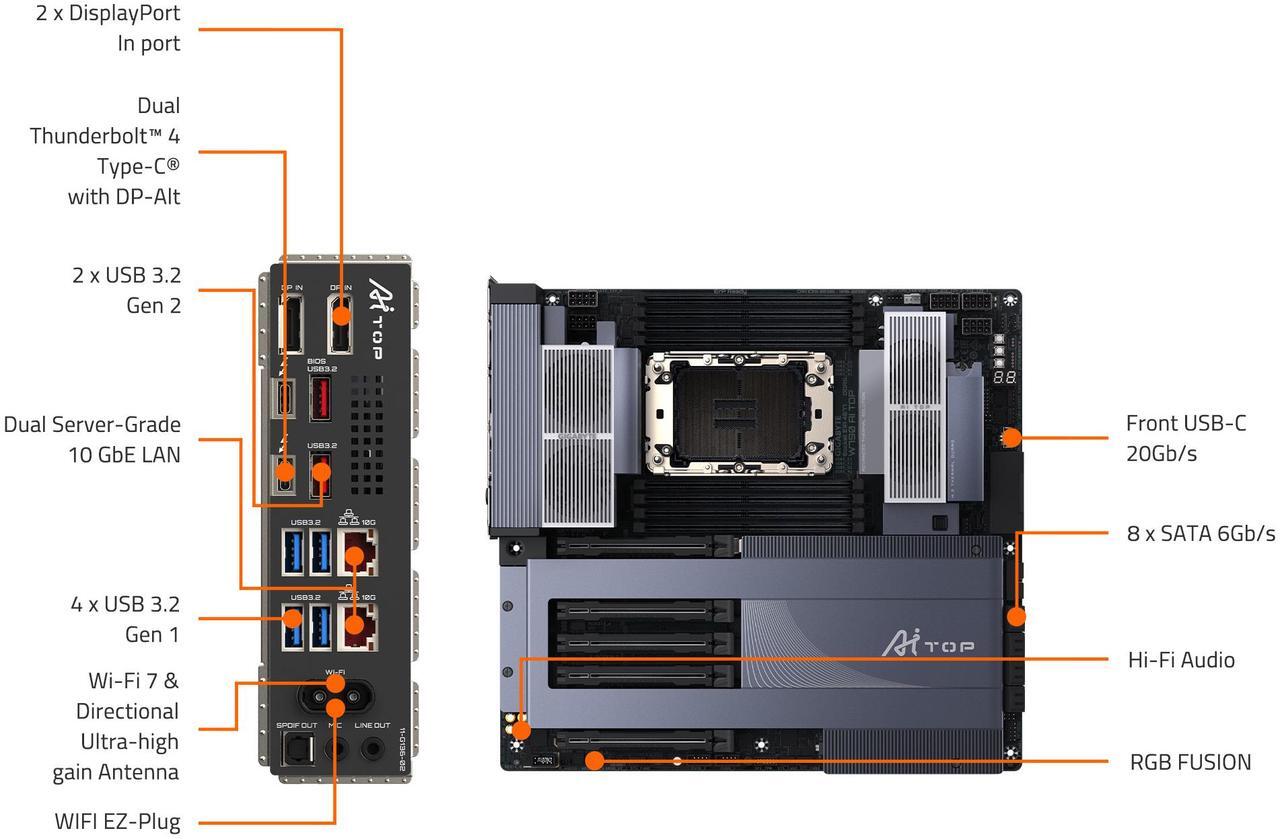

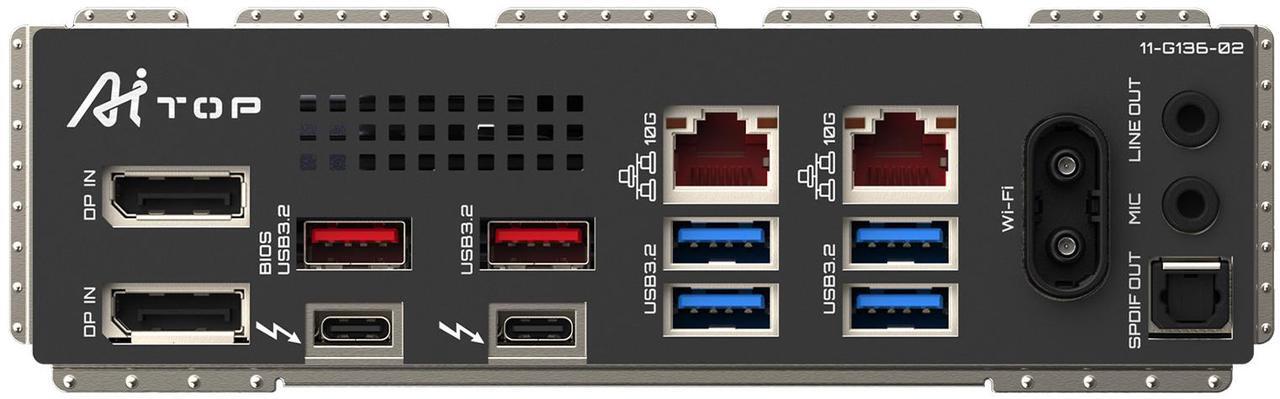

Back I/O Ports	1 x Optical S/PDIF Out / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x DisplayPort / 2 x LAN (RJ45) / 2 x Thunderbolt 4 / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 6 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x speaker header 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper 1 x Intel VROC Upgrade Key header

Physical Spec
Power Pin	1 x 24-pin ATX main power connector 4 x 8-pin ATX 12V power connectors

Additional Information
Date First Available	March 27, 2025
