  • EK-NUCLEUS AIO CR360 VISION - D-RGB LIQUID COOLER

EK-NUCLEUS AIO CR360 VISION - D-RGB LIQUID COOLER

  • Product Code: ECR9129815
  • Availability: In Stock
  • $0

Details

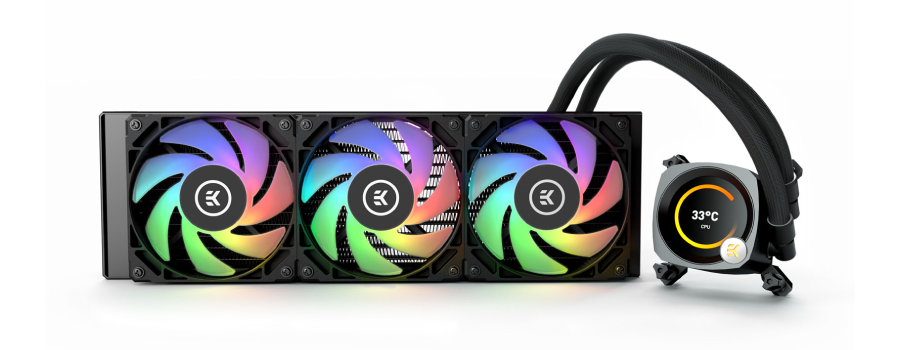

The EK-Nucleus AIO CR360 Vision D-RGB is an all-in-one liquid cooling solution featuring a 24-bit color LCD display. It is designed to fit most modern cases and features a triple fan setup with a slim 360mm radiator. Compatible with most modern processors on the market, it is also ready for the next-gen Intel socket.

This closed-loop liquid CPU cooler offers a plug-and-play solution with a customizable display to make your AIO uniquely your own.

EK-Nucleus AIO CR360 Vision D-RGB

LCD Readout and Addressable RGB

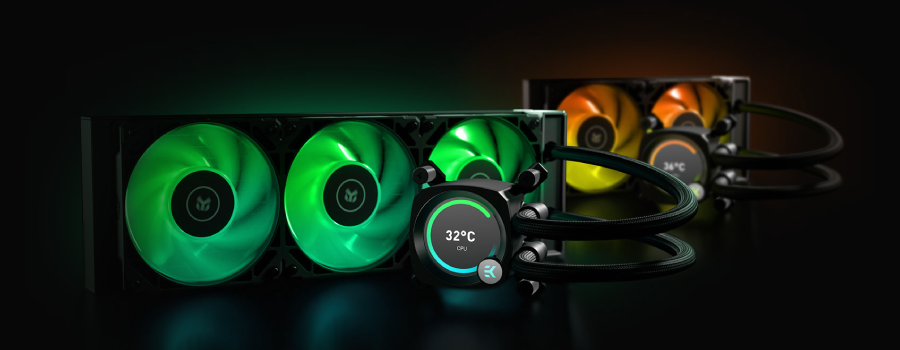

Customize your all-in-one system to match your setup with its fully addressable RGB lighting effects and a bright LCD screen capable of displaying 24-bit color. The screen can display performance markers and system temperature data, so you can have a readout that informs you of your PC’s status at a glance. In addition to internal specs, the high-quality display can also show custom images to put a unique flare on your CPU cooler.

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the addressable RGB (D-RGB) header.

EK RGB ALL

Rotatable Pump Top

The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed. The orientation can be changed in 90° increments, so if the cooler is installed upside down, rotate it 180 degrees to display the logo right side up. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.

EK-Nucleus AIO CR360 Vision D-RGB

New Positioning of Rotary Fittings

The AIO CR360 Vision comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The fittings are covered with an aesthetic radiator cover at the connection of the tubing and the radiator to ensure a sleek design and flushed line with the added fans. The improved position of rotary fittings on the other side, which are now placed next to each other, allows the EK-Nucleus AIO to be installed in even the tightest spaces.

Universally Compatible and Easy to Install

All EK-Nucleus AIOs come with a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets. The installation process is very straightforward thanks to the included manual and mounting mechanism. This product requires enough space to mount a single slim 360mm radiator, making it compatible with almost all modern cases.

EK-Nucleus AIO CR360 Vision D-RGB

Technical Specifications

LCD diameter: 53,3 mm / 2,1 in
LCD type: 24-bit RGB, IPS panel
Radiator Dimensions (L, W, H)400 x 124 x 27 mm
Radiator Material: Aluminum
Fan Dimensions: 120 x 120 x 25mm
Max Fan Speed: 2200 RPM ± 10% RPM
Fan RGB Type: 5V Digital (Addressable)
Tubing length: 400 mm
Pump Unit Dimensions: 82,3 x 69,2 x 61,6 mm
Pump Unit Material: ABS housing, Aluminum black-nickel plated pump ring
Pump Unit RGB Type: 5V Digital (Addressable)
Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 500mm

System Requirements:

4-Pin PWM Header for pump and fan operation
3-Pin Addressable 5V D-RGB header
USB 2.0 header for the LCD display

Enclosed:

EK-Nucleus AIO CR360 Vision D-RGB unit
EK-Vardar 120 D-RGB (3pcs)
- Tube of Thermal Paste
- Mounting Kit
- User Manual

Compatible CPU Sockets:

Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + Next-gen Intel Socket, 1700
- AMD Socket: AM4
- AMD Socket: AM5

5 Years Limited International Warranty

Designed in Slovenia, EU
Manufactured in China

Additional Info

Lighting EffectD-RGB
SocketsAMD , Intel
# of Fans3
Fan Dimension120mm
Radiator Size360mm
