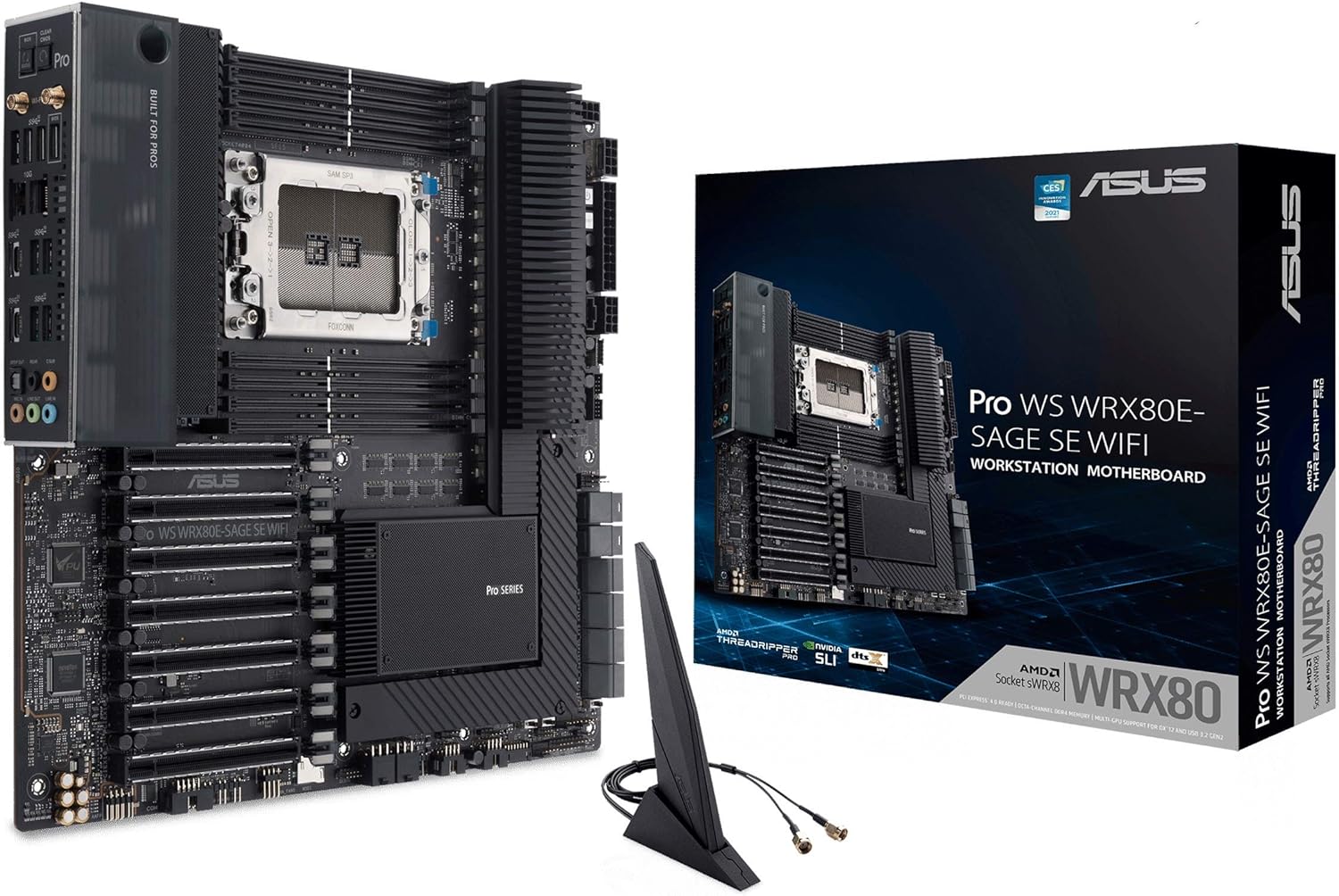

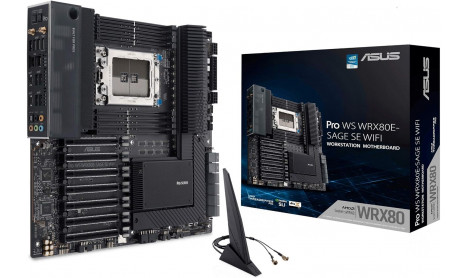

ASUS PRO WS WRX80E-SAGE SE WIFI SOCKET sWRX8

Product Code: WRX80E-SAGE
Availability: In Stock
$0

0 reviews / Write a review

Description

Model
Brand	ASUS
Model	Pro WS WRX80E-SAGE SE WIFI

Supported CPU
CPU Socket Type	sWRX8
CPU Type	AMD Ryzen Threadripper Pro Processors

Chipsets
Chipset	AMD WRX80

Memory
Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory
Maximum Memory Supported	2048GB
Channel Supported	Eight Channel

Expansion Slots
PCI Express 4.0 x16	AMD Ryzen Threadripper PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s)* * Support PCIe bandwidth bifurcation for RAID on CPU function.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x16	None

Storage Devices
Serial ATA (SATA)	AMD WRX80 Chipset: 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller: 4 x SATA 6Gb/s ports
M.2	AMD Ryzen Threadripper PRO Series Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 2 SATA devices* AMD WRX80 Chipset: M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 2 SATA devices* *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled.
SATA RAID	Supports NVMe RAID configurations via M.2 storages

Onboard Audio
Audio Chipset	Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
Audio Channels	7.1

Onboard LAN
LAN Chipset	1 x Intel X550-AT2 dual 10Gb Ethernet ASUS LANGuard
Max LAN Speed	2 x 1Gbps
Wireless LAN	Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports 2.4/5GHz Dual-Band Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface
Bluetooth	Bluetooth v5.1

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C) 1 x ASUS Wi-Fi Module 2 x Intel X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header

Physical Spec
Specification --> Reviews (0) Write a review Your Name Your Review Note: HTML is not translated! Rating Bad Good Tags: ASUS PRO WS WRX80E-SAGE SE WIFI SOCKET sWRX8 Information About Us Delivery Information Privacy Policy Terms & Conditions Customer Service Contact Us Returns Site Map Extras Brands Gift Certificates Affiliate Specials My Account My Account Order History Wish List Newsletter Computer Arena Cambodia © 2025
Form Factor	Extended ATX
LED Lighting	None RGB
Dimensions (W x L)	12.20" x 13"
